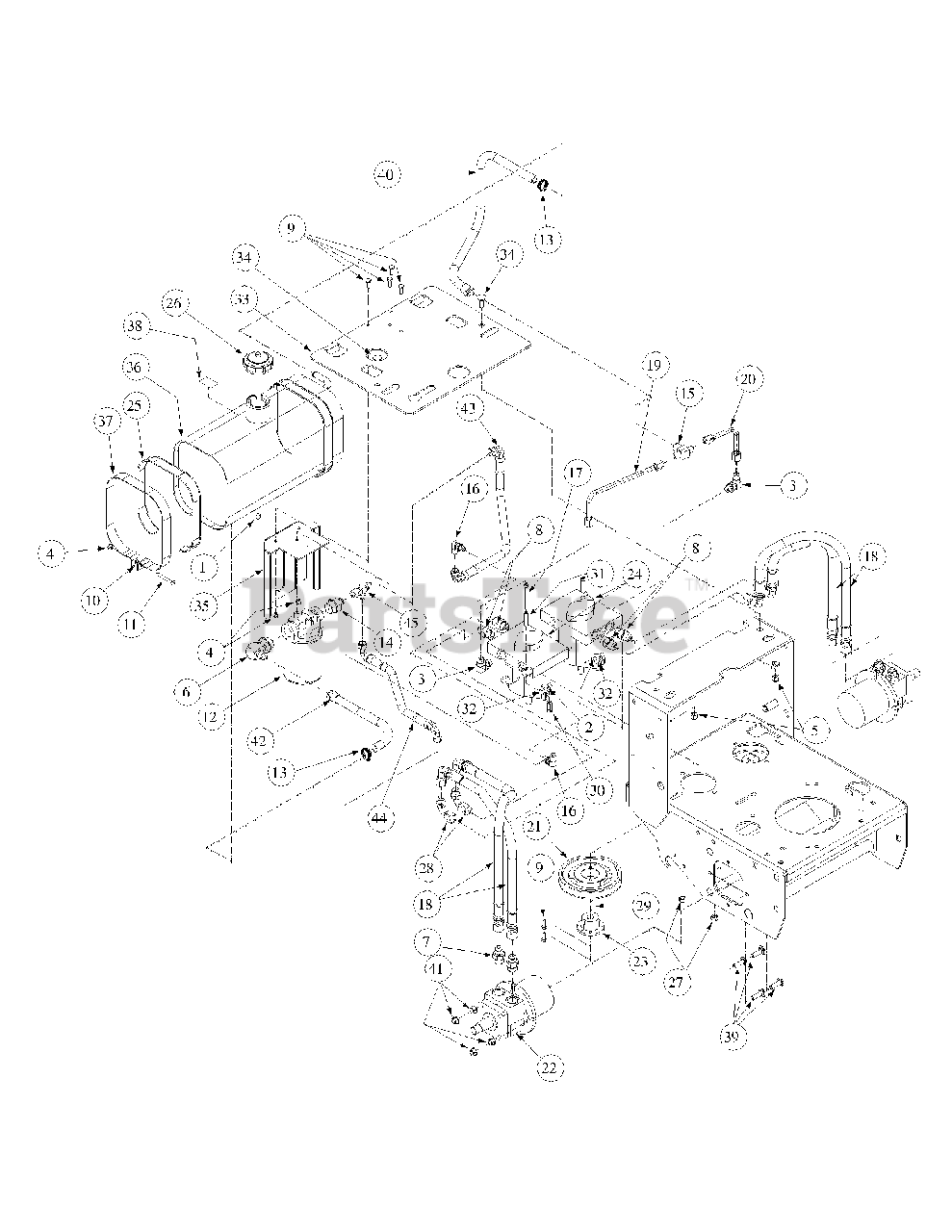

2054F (55AF3B6K195) - MTD Pro Hydro Walk-Behind Mower Hydro Pump Assembly Parts Diagram

Pro Hydro Walk-Behind Mower

Hydro Pump Assembly Parts Diagram

  • Title

1

MTD 00003759

Plug, 1/4"

Note: NLA

$

$

Not available

2

MTD 00011444

Cap Screw, Standard, 3/8-16 x 1-1/4

$4.49

$

In Stock, Qty 9

0

3

MTD 00012078

Fitting, Aeroquip

$

$

Not available

4

MTD 00012152

Lock Nut, 1/4-20

$4.49

$

In Stock, only 1 left!

0

5

MTD 712-04065

Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

6

MTD 00012269

Elbow 90° 1/2 x 3/4

$

$

Not available

7

MTD 00012288

Fitting, Aeroquip

$

$

Not available

8

MTD 00012426

Fitting, Aeroquip

$12.99

$

Usually ships in 3-6 days

0

9

MTD 00013131

Cap Screw, 1/4-20 x 3/4

$6.49

$

In Stock, only 1 left!

0

10

MTD 00013291

Hex Nut, 1/4-20

$2.99

$

In Stock, only 3 left!

0

11

MTD 00013672

Machine Screw, 1/4-20 x 2, Zinc

$

$

Not available

12

MTD 00017665P

Filter Head 3/4

$

$

Not available

12

MTD 01004166

Oil Filter

Note: (not shown)

$50.99

$

In Stock, only 4 left!

0

13

MTD 00017892

Clamp Wormgear, 5/16-7/8

$

$

Not available

14

MTD 00018068

Straight Connector 1/2 x 3/4

$

$

Not available

15

MTD 00018407

Fitting Aeroquip

$

$

Not available

16

MTD 00018443

Fitting, Aeroquip

$

$

Not available

17

MTD 00019962

Cap Screw, Socket Head, 1/4-20 x 2-1/2 Zinc

$

$

Not available

18

MTD 00021609

Hydro Hose Assembly, Reverse Pressure

$111.99

$

Usually ships in 3-6 days

0

19

MTD 00021612

Hydraulic Line, Pump Return Long

$

$

Not available

20

MTD 00021613

Hydraulic Line, Pump Return Short

$

$

Not available

21

MTD 00021970

Deck Pulley

$112.99

$

Usually ships in 3-6 days

0

22

MTD 00024060P

Hydraulic Motor, Wheel

$1140.99

$

Usually ships in 3-6 days

0

23

MTD 00024061

Bushing, 15mm Bore, Split, Type "D"

$

$

Not available

24

MTD 00024090P

Pump Hydro BDP10L117

$

$

Not available

25

MTD 00025347

Pad, Oil Tank

$

$

Not available

26

MTD 00030261

Cap, Hydraulic Oil Tank

$36.99

$

Usually ships in 3-6 days

0

27

MTD 00034224

Lock Nut, 3/8-16

$

$

Not available

28

MTD 00042074

Fitting Aeorquip

$

$

Not available

29

MTD 00071204

Pump Key

$

$

Not available

30

MTD 00071482

Nut, Pump Release

$

$

Not available

31

MTD 00072141

Spacer, Pump Release

$

$

Not available

32

MTD 00083192

Washer, Idler
(Superseded to 736-0258)

$4.49

$

In Stock, only 4 left!

0

33

MTD 01001085

Fuel Tank, Mounting Plate

Note: NLA

$

$

Not available

34

MTD 01000643

Carriage Bolt, 3/8-16 x 2

$5.49

$

In Stock, Qty 7

0

35

MTD 01001087-0637

Filter Guard

$

$

Not available

36

MTD 00030379

Oil Tank w/Neck

Note: NLA

$

$

Not available

37

MTD 00061913

Oil Tank Strap

$

$

Not available

38

MTD 01002007

Oil Label, 20W-50

$

$

Not available

39

MTD 710-3034

Carriage Bolt, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 5

0

40

MTD 01002305

Hose Assembly

$

$

Not available

MTD 00018408

Hose Hydraulic 22"

$

$

Not available

41

MTD 00022560

Hex Nut, Flange Lock, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

42

MTD 01003000

Hose, Filter to Tank

$

$

Not available

43

MTD 01003001

Hose, Filter to Left Pump

$

$

Not available

44

MTD 01003002

Hose, Filter to Right Pump

Note: NLA

$

$

Not available

45

MTD 01003003

Fitting, Aeroquips

Note: NLA

$

$

Not available

Lubricant, SAE 20W-50

$

$

Not available
