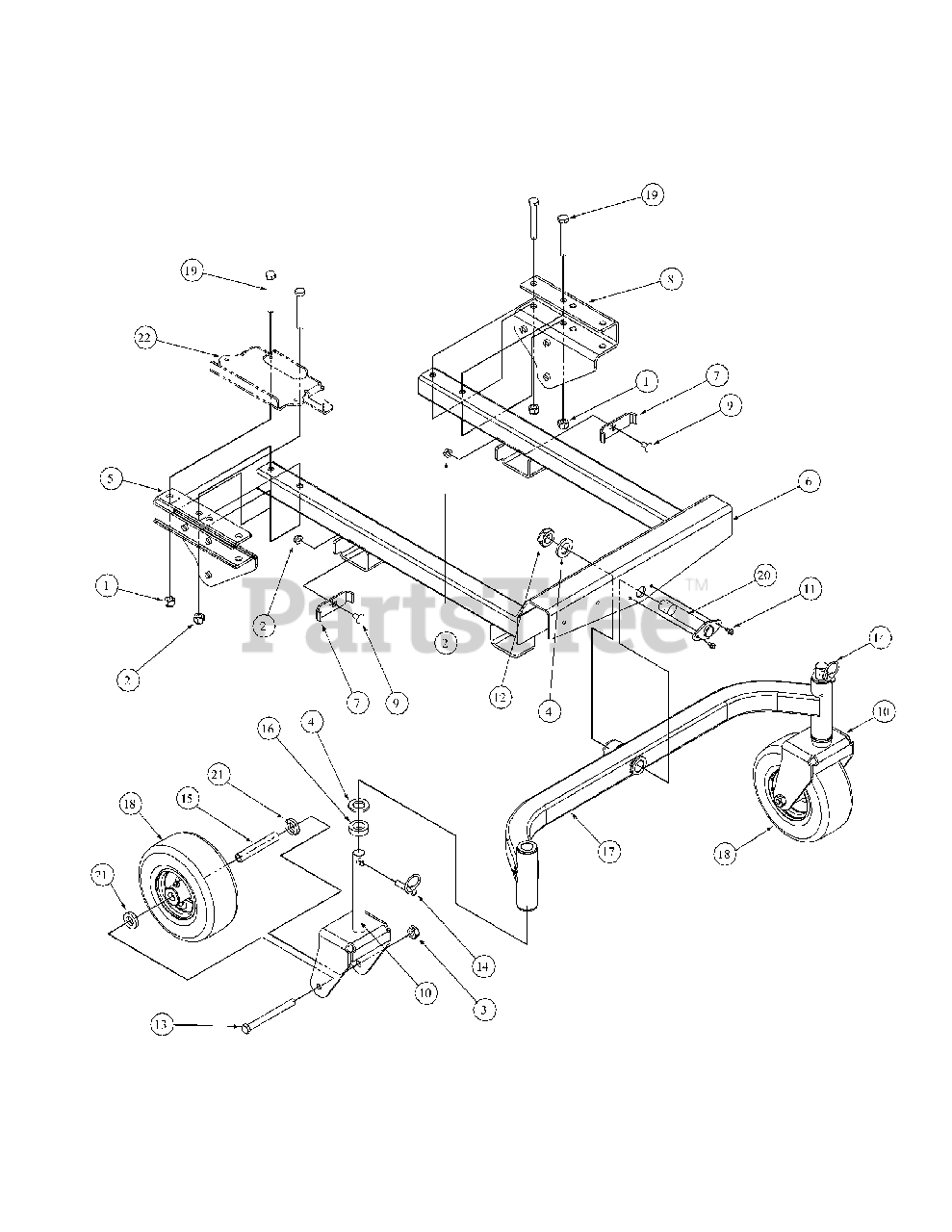

2054F (55AF3B6K195) - MTD Pro Hydro Walk-Behind Mower Float Deck Front Axle Frame Assembly Parts Diagram

Pro Hydro Walk-Behind Mower

Float Deck Front Axle Frame Assembly Parts Diagram

  • Title

1

MTD 912-3048

Hex Jam Nut 1/2-13
(Superseded to 712-3048)

$4.99

$

In Stock, Qty 20+

0

2

MTD 00022560

Nut, Hex 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

3

MTD 00023287

Nut, 1/2-20, Center Lock
(Superseded to 712-0239)

$

$

Not available

4

MTD 00023822

Washer Special
(Superseded to 936-0274)

$8.99

$

In Stock, Qty 14

0

5

MTD 01002662

Support Brack Frame Right Hand

Note: NLA

$

$

Not available

6

MTD 01006387

Front Frame Assembly

$

$

Not available

7

MTD 01006136

Plate Wear

$

$

Not available

8

MTD 01002147

Bracket Support Frame, Left Hand

$

$

Not available

9

MTD 710-3178

Carrige Bolt, 3/8-16 x .75 LG.

$4.49

$

In Stock, Qty 20+

0

10

MTD 01002163

Caster Assembly

$

$

Not available

11

MTD 710-0599

Screw, TT, 1/4-20, 0.500, Hex Index

$4.49

$

In Stock, Qty 20+

0

12

MTD 01000678

Nut, Jam, 1.0-14, Insert Lock
(Superseded to 712-05008)

$14.99

$

In Stock, only 1 left!

0

13

MTD 710-0506

HHCS, 1/2-20, 5.50

$10.99

$

In Stock, only 2 left!

0

14

MTD 711-1105

Pin, Klik, 1.75 LG

$11.99

$

Usually ships in 3-6 days

0

15

MTD 01000749

Spacer Wheel

$40.99

$

In Stock, only 1 left!

0

16

MTD 00023821

Spacer, 1.015 ID x 1.62 OD x .50

$24.99

$

Usually ships in 3-6 days

0

17

MTD 01006391

Front Axle Assembly, Flange Bearing

$

$

Not available

18

MTD 01003021

Wheel Assembly 9.0 x 3.50 -4

Note: NLA

$

$

Currently unavailable

19

MTD 01003113

Hex Cap Screw, 1/2-13 x 3.25

$

$

Not available

20

MTD 01006309

Pin Assembly, Plated

$30.99

$

In Stock, only 1 left!

0

21

MTD 01003123

Spacer, .790 ID x .347 LG
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

22

MTD 01002664

Battery Bracket

$

$

Not available

MTD 00023793

Flange Bearing

Note: (not shown)

$15.99

$

In Stock, only 3 left!

0
