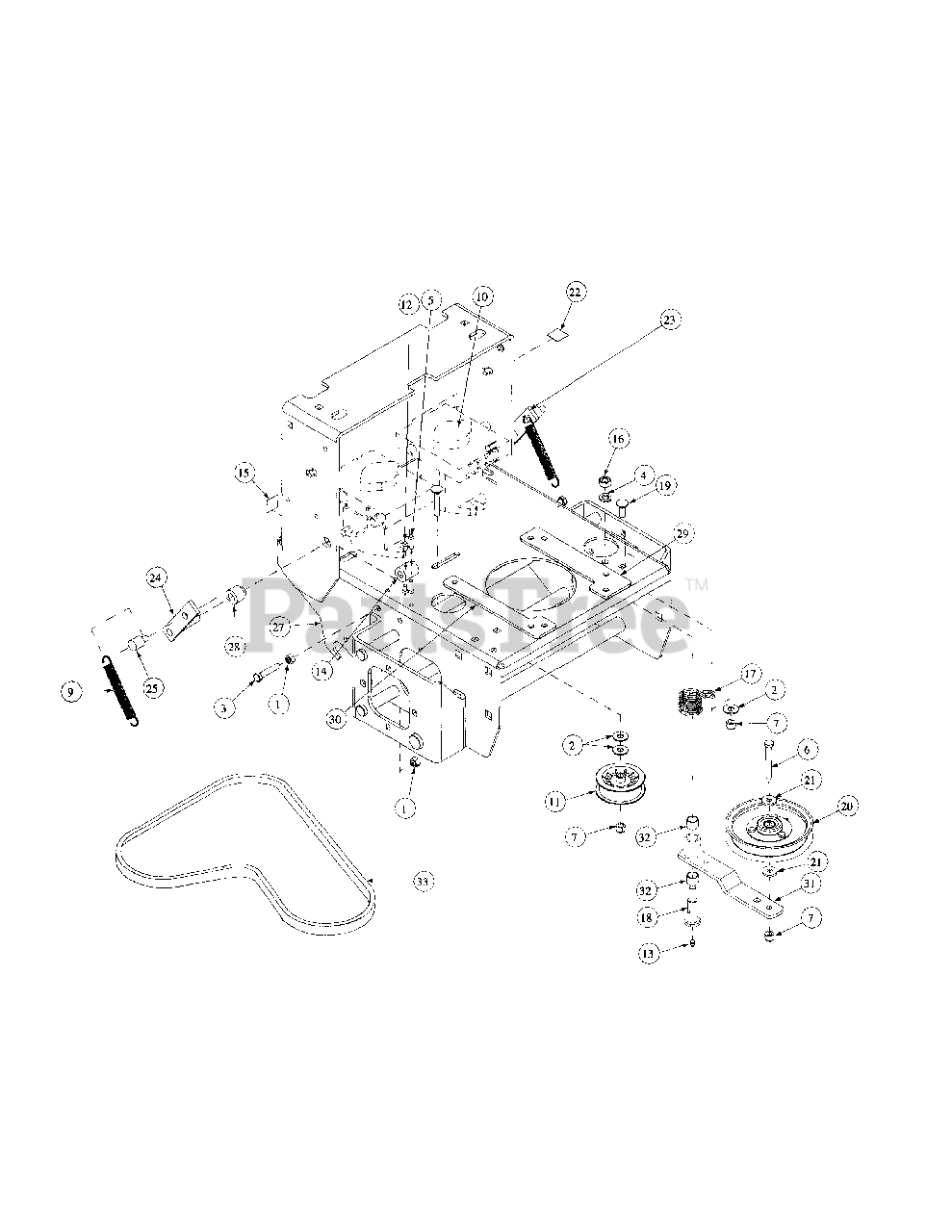

2054F (55AF3B6K195) - MTD Pro Hydro Walk-Behind Mower Engine Deck Assembly WT Parts Diagram

Pro Hydro Walk-Behind Mower

Engine Deck Assembly WT Parts Diagram

  • Title

1

MTD 912-3017

Nut, Hex, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

2

MTD 00006168

Flat Washer, USS 3/8
(Superseded to 936-3015)

$4.49

$

In Stock, only 1 left!

0

3

MTD 00008495

Cap Screw, 3/8-16 x 1-3/4"

$6.99

$

In Stock, Qty 8

0

4

MTD 00009920

Wash, Lock, 7/16, Zinc

$

$

Not available

5

MTD 00011448

Screw, CP, Square Head Set, 1/4-20

$

$

Not available

6

MTD 00011861

HHCS, 3/8-16, 1
(Superseded to 710-0859)

$6.99

$

In Stock, Qty 16

0

7

MTD 712-04065

Nylon Insert, Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

9

MTD 00020816

Wire Spring

$16.99

$

Usually ships in 3-6 days

0

10

MTD 00024090P

Hydro Pump

$

$

Not available

11

MTD 02004558

Flat Idler Pulley with Adapter

$22.99

$

In Stock, only 2 left!

0

12

MTD 00034961

Cap Screw, Square Head Set, 1/4-20

$

$

Not available

13

MTD 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

14

MTD 00070873

Coupling, Trunnion

$

$

Not available

15

MTD 00090006

Decal, Made In America

$

$

Not available

16

MTD 912-3019

Nut, Hex, 7/16-14
(Superseded to 712-3019)

$6.99

$

Usually ships in 3-6 days

0

17

MTD 932-3009

Spring Idler Torsion

$24.99

$

In Stock, only 4 left!

0

18

MTD 738-3108

Shoulder Bolt
(Superseded to 738-05004)

$22.99

$

In Stock, Qty 6

0

19

MTD 01000643

Carriage Bolt, 3/8-16 x 2

$5.49

$

In Stock, Qty 7

0

20

MTD 00021977

Pulley Assembly, Idler, 5.00"

$66.99

$

Usually ships in 3-6 days

0

21

MTD 00006168

Flat Washer, .406 ID: 1.0 OD: .105
(Superseded to 936-3015)

$4.49

$

In Stock, only 1 left!

0

22

MTD 01001035

Label, Mower, Warn, Open Belt Drive

$

$

Not available

23

MTD 01001576

Hydro Pump Lever Assembly, LH

$

$

Not available

24

MTD 01001578

Hydro Pump Lever Assembly, RH

$

$

Not available

25

MTD 01001579

Pivot, Belt Tightener

$

$

Not available

27

MTD 01002116

Engine Base Assembly, Hydro WT

Note: NLA

$

$

Not available

28

MTD 01002669

Bushing Lever Pump

$

$

Not available

29

MTD 01004394

Spacer Engine, RH

$

$

Not available

30

MTD 01004397

Spacer Engine, LH

Note: NLA

$

$

Not available

31

MTD 01003606

Idler Arm with bearings

$

$

Not available

32

MTD 01000308

Bearing sleeves
(Superseded to 741-04555)

$16.99

$

In Stock, only 2 left!

0

33

MTD 00023887

Belt

$51.99

$

In Stock, only 2 left!

0

MTD 00014270

Carriage Bolt 3/8-16 x 2
(Superseded to 710-04157)

Note: (not shown)

$8.99

$

In Stock, only 1 left!

0
