2054 - Jonsered Chainsaw (1996-09) CHAIN BRAKE CLUTCH COVER Parts Diagram

Chainsaw

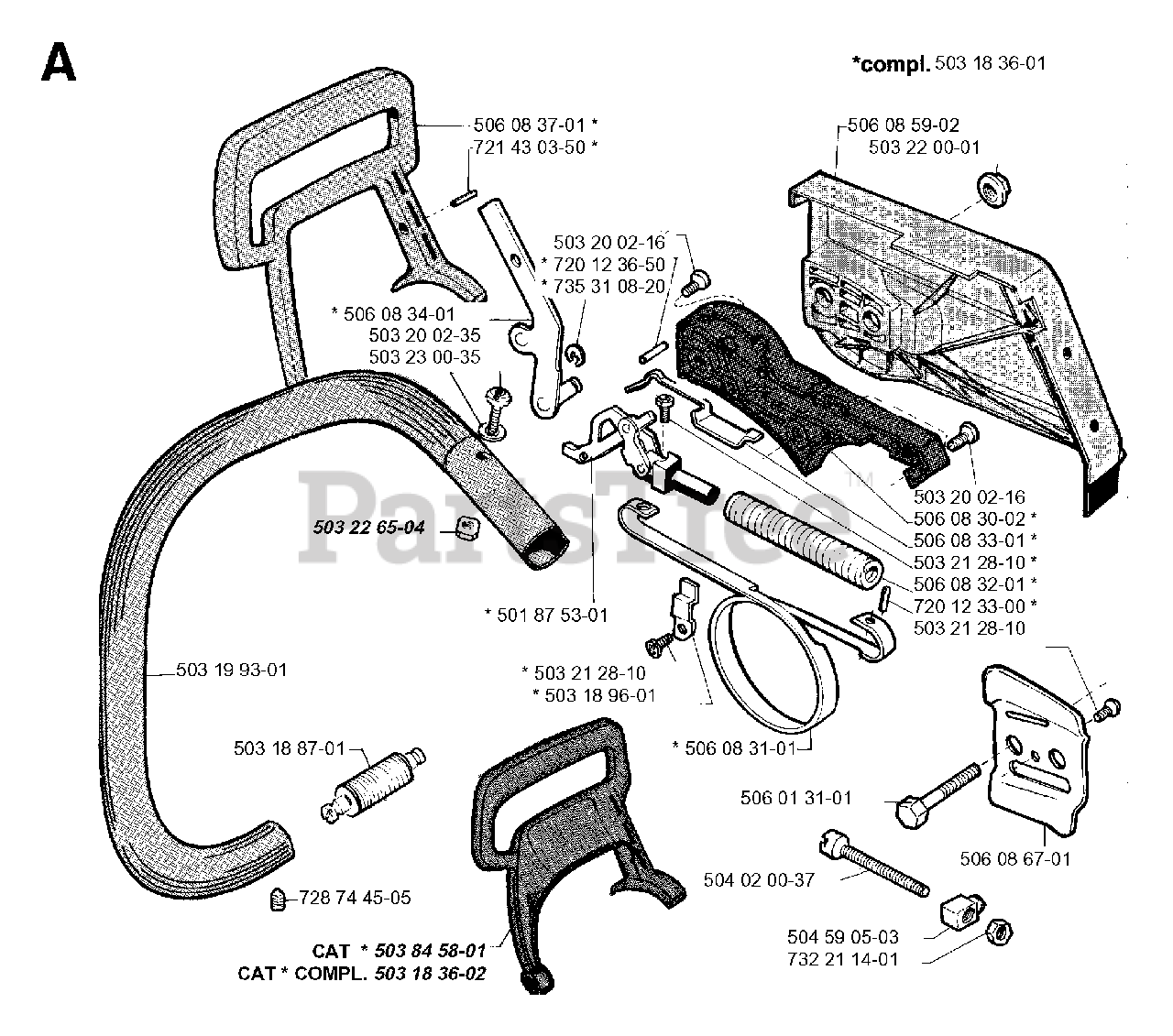

CHAIN BRAKE CLUTCH COVER Parts Diagram

  • Title
5060837-01

Jonsered 506083701

SAFETY GUARD

$

$

Not available

7214303-50

Jonsered 721430350

PIN FRP 5X10

$

$

Not available

5060834-01

Jonsered 506083401

BRAKE LEVER

$

$

Not available

5032002-35

Jonsered 503200235

SCREW
(Superseded to 725533755)

$6.49

$

In Stock, Qty 5

0

5032300-35

Jonsered 503230035

WASHER 5.3X15

$7.49

$

In Stock, Qty 14

0

5032265-04

$6.49

$

In Stock, Qty 8

0

5031993-01

$

$

Not available

5031887-01

$

$

Not available

7287445-05

Jonsered 728744505

SCREW S6SS 8X10

$2.99

$

In Stock, Qty 7

0

5038458-01

Jonsered 503845801

REPL BY 503 93 17-01
(Superseded to 503931701)

Note: CAT

$

$

Not available

5031836-02

Jonsered 503183602

REPL BY 503 18 36-03
(Superseded to 503183603)

Note: CAT COMPL

$

$

Not available

5031896-01

$

$

Not available

5032128-10

$3.99

$

In Stock, Qty 20+

0

5018753-01

Jonsered 501875301

KNEE-JOINT

$26.99

$

In Stock, only 1 left!

0

7353108-20

$4.99

$

In Stock, Qty 20+

0

7201236-50

$

$

Not available

5032002-16

$4.99

$

In Stock, Qty 20+

0

5060831-01

Jonsered 506083101

BRAKE BAND

$

$

Not available

5060131-01

$5.99

$

Usually ships in 3-10 days

0

5040200-37

$

$

Not available

5045905-03

Jonsered 504590503

BAR TENS. PIN

$

$

Not available

7322114-01

Jonsered 732211401

LOCKNUT M5

$6.49

$

In Stock, Qty 7

0

5060867-01

Jonsered 506086701

GUIDE PLATE

$

$

Not available

5032128-10

$3.99

$

In Stock, Qty 20+

0

7201233-00

$3.49

$

In Stock, only 4 left!

0

5060832-01

$

$

Not available

5032128-10

$3.99

$

In Stock, Qty 20+

0

5060833-01

$

$

Not available

5060830-02

Jonsered 506083002

BRAKE CASETTE

$

$

Not available

5032002-16

$4.99

$

In Stock, Qty 20+

0

5032200-01

Jonsered 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0

5060859-02

Jonsered 506085902

CLUTCH COVER

$61.48

$

Usually ships in 3-10 days

0

5031836-01

Jonsered 503183601

CHAIN BRAKE CPL.

$

$

Not available
