20532 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) HOUSING ASSEMBLY (USED ON SER. NOS. 9000101-9001531, 9004073 AND UP) Parts Diagram

Walk-Behind Mower

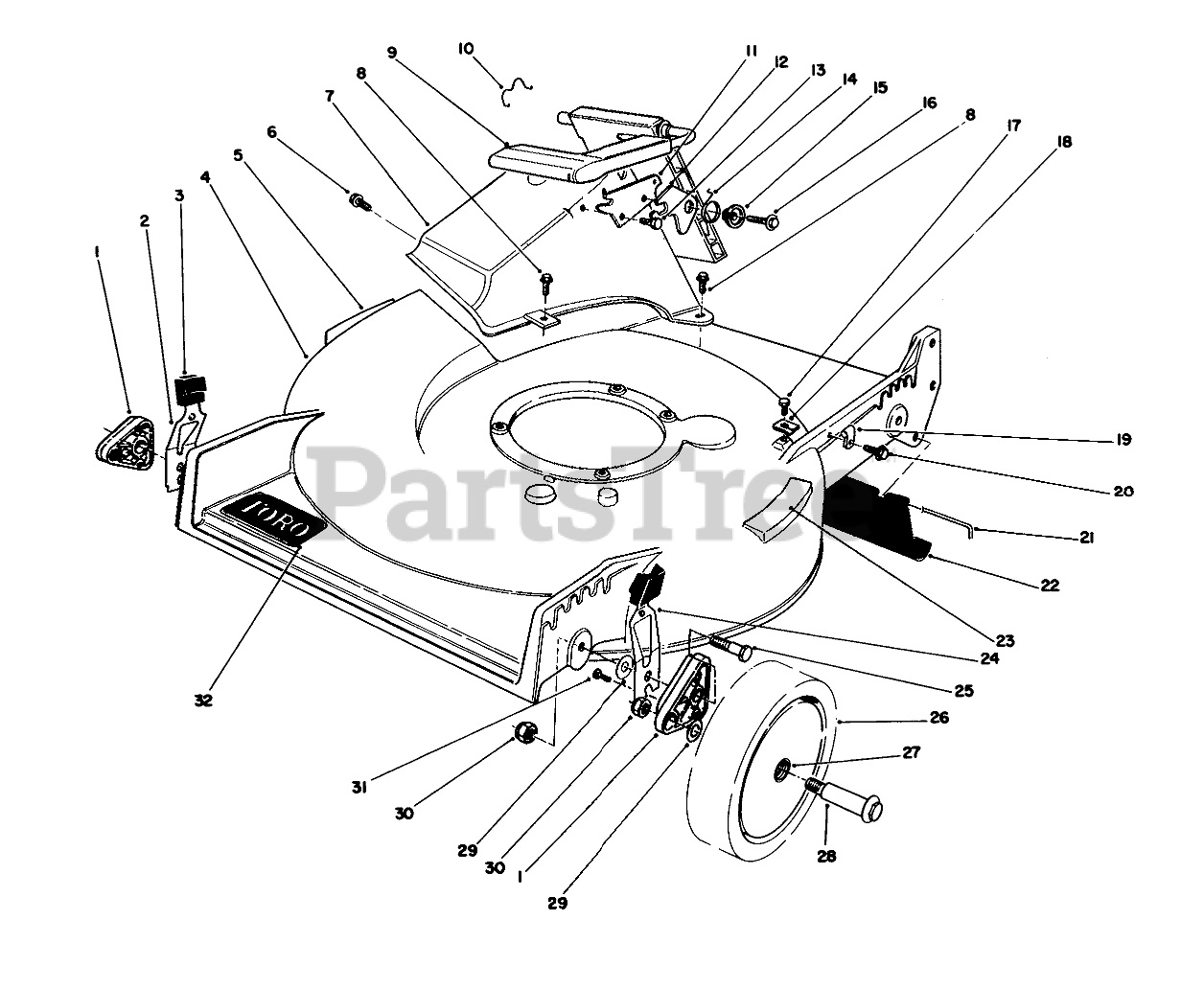

HOUSING ASSEMBLY (USED ON SER. NOS. 9000101-9001531, 9004073 AND UP) Parts Diagram

  • Title
1

Toro 66-0580

ARM-PIVOT, FRONT

$18.99

$

In Stock, only 1 left!

0

2

Toro 71-0560

RH SPRING ARM ASSEMBLY
(Superseded to 71-0561)

$19.99

$

In Stock, only 1 left!

0

3

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

4

Toro 13-4669

Housing (Incl. Ref. #5 & 23)

$

$

Not available

5

Toro 43-8430

Decal-Danger

$

$

Not available

6

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

7

Toro 46-3500

Tunnel Discharge
(Superseded to 82-9151)

$192.99

$

Usually ships in 3-6 days

0

8

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

9

Toro 51-0201

Discharge Door Assembly
(Superseded to 77-0200)

$

$

Not available

10

Toro 47-5840

DOOR RET SPRING

$

$

Not available

11

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

12

Toro 42-4010

SAFETY LATCH

$

$

Not available

13

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

14

Toro 33-4860

TORSION SPRING

$68.99

$

Usually ships in 3-6 days

0

15

Toro 43-4840

DOOR SPACER

$8.49

$

Usually ships in 3-6 days

0

16

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

17

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

18

Toro 62-3720

CLAMP-CABLE

$2.99

$

In Stock, only 3 left!

0

19

Toro 2412-83

CLAMP-CABLE

$

$

Not available

20

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

21

Toro 33-3208

ROD-SHIELD

$15.99

$

In Stock, Qty 12

0

22

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$28.99

$

In Stock, Qty 8

0

23

Toro 46-7370

STEP PAD DECAL

$27.99

$

Usually ships in 3-6 days

0

24

Toro 71-0570

LH SPRING ARM ASSEMBLY

$24.99

$

Usually ships in 3-6 days

0

25

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 16

0

26

Toro 11-9509

Wheel & Tire Assembly (Incl. Ref. #27)
(Superseded to 51-2751)

$34.99

$

In Stock, only 2 left!

0

27

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 8

0

28

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 8

0

29

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

30

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 15

0

31

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

32

Toro 71-0600

DECAL

$15.99

$

Usually ships in 3-6 days

0
