20526 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) GOVERNOR ASSEMBLY (MODEL NO. VMH7) Parts Diagram

Walk-Behind Mower

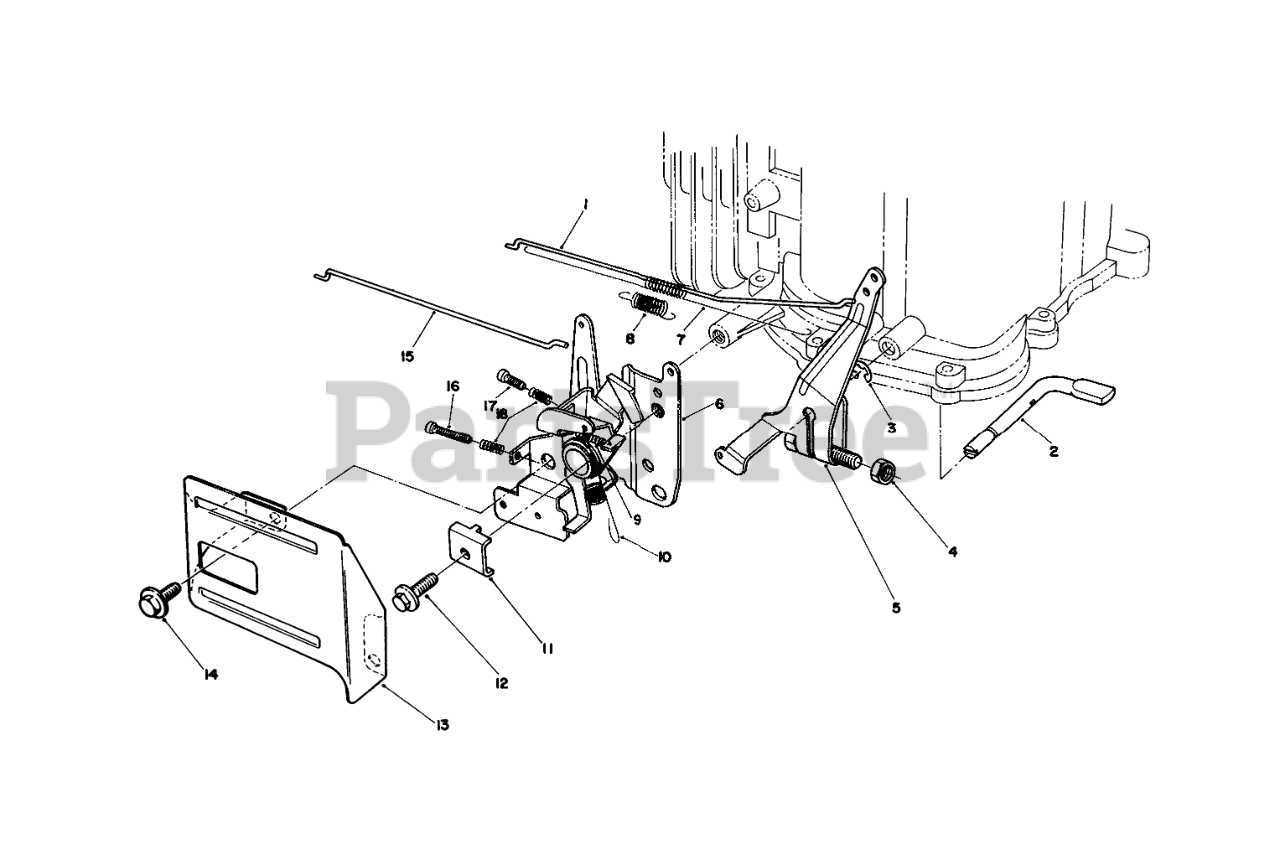

GOVERNOR ASSEMBLY (MODEL NO. VMH7) Parts Diagram

  • Title
1

Toro 81-4450

Rod-Carburetor

$

$

Not available

2

Toro 81-4480

SHAFT

$

$

Not available

3

Toro 81-4540

E-RING

$

$

Not available

4

Toro 81-4490

Nut
(Superseded to 81-3760)

$

$

Not available

5

Toro 81-4500

ARM ASM

$

$

Not available

6

Toro 81-4510

THROTTLE

$

$

Not available

7

Toro 81-4470

SPRING

$12.99

$

Usually ships in 3-6 days

0

8

Toro 81-4460

SPRING

$11.99

$

Usually ships in 3-6 days

0

9

Toro 81-4570

SPRING

$

$

Not available

10

Toro 81-4520

SPRING

$11.99

$

Usually ships in 3-6 days

0

11

Toro 81-1690

CLAMP-CABLE

$2.99

$

Usually ships in 3-6 days

0

12

$5.49

$

Usually ships in 3-6 days

0

13

Toro 57-5750

THROTTLE GUARD

$

$

Not available

14

$9.49

$

Usually ships in 3-6 days

0

15

Toro 81-4440

Rod-Choke
(Superseded to 81-4770)

$

$

Not available

16

Toro 81-4560

SCREW

$

$

Not available

17

Toro 81-4550

SCREW

$

$

Not available

18

Toro 81-2900

SPRING

$

$

Not available
