20526 - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

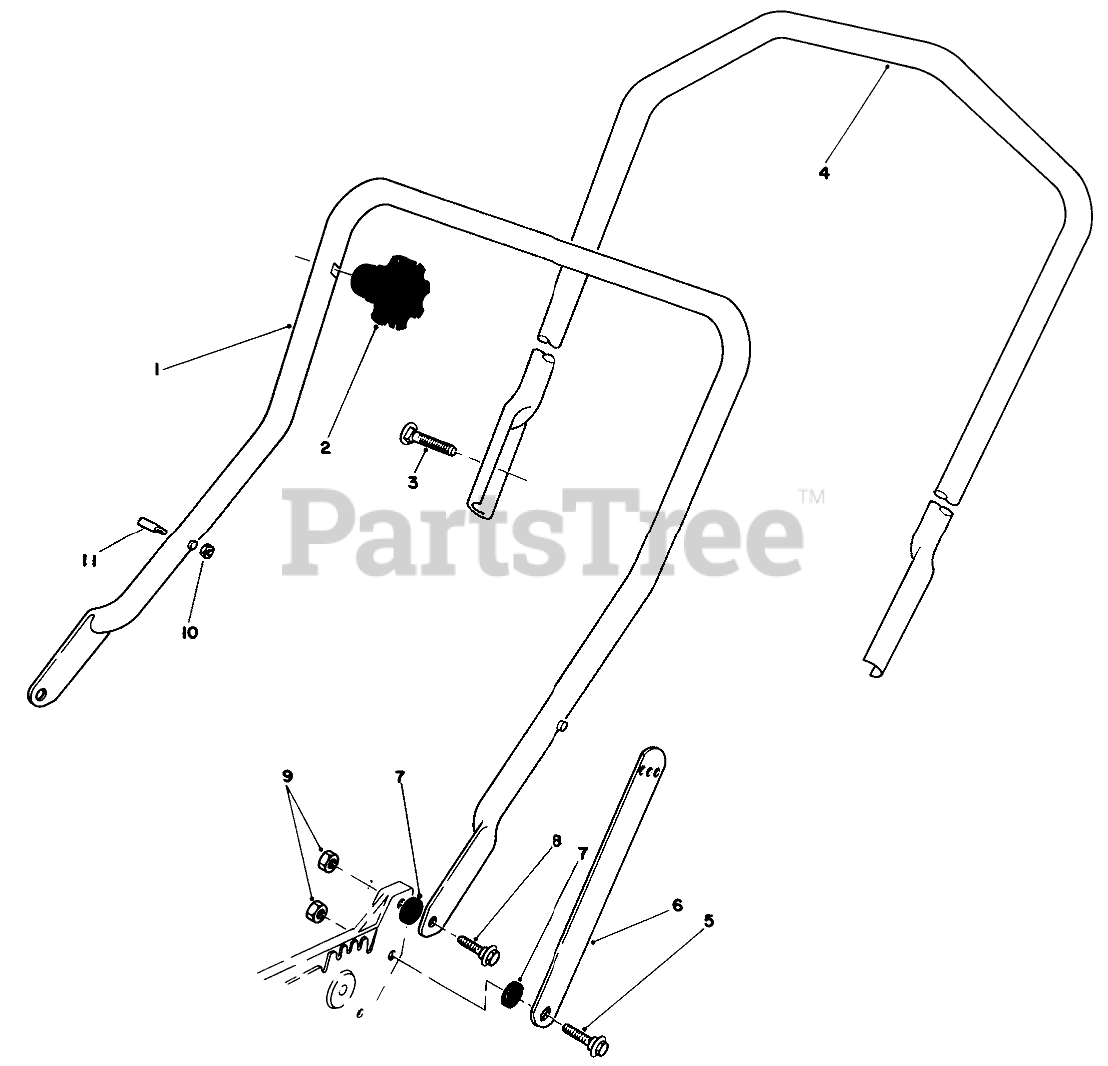

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 43-1361

LOWER HANDLE ASM

$

$

Not available

2

$17.99

$

In Stock, only 2 left!

0

3

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 7

0

4

Toro 46-5411

Handle-Upper
(Superseded to 84-8332)

$

$

Not available

5

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

6

Toro 43-1370

Handle Latch
(Superseded to 98-7138)

$

$

Not available

7

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

8

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 1 left!

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 3296-47

NUT-LOCK, NI

Note: Service Replacement Parts

$3.99

$

In Stock, Qty 10

0

11

Toro 49-2750

HANDLE PIN

Note: Service Replacement Parts

$36.99

$

Usually ships in 3-6 days

0
