20526 C - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

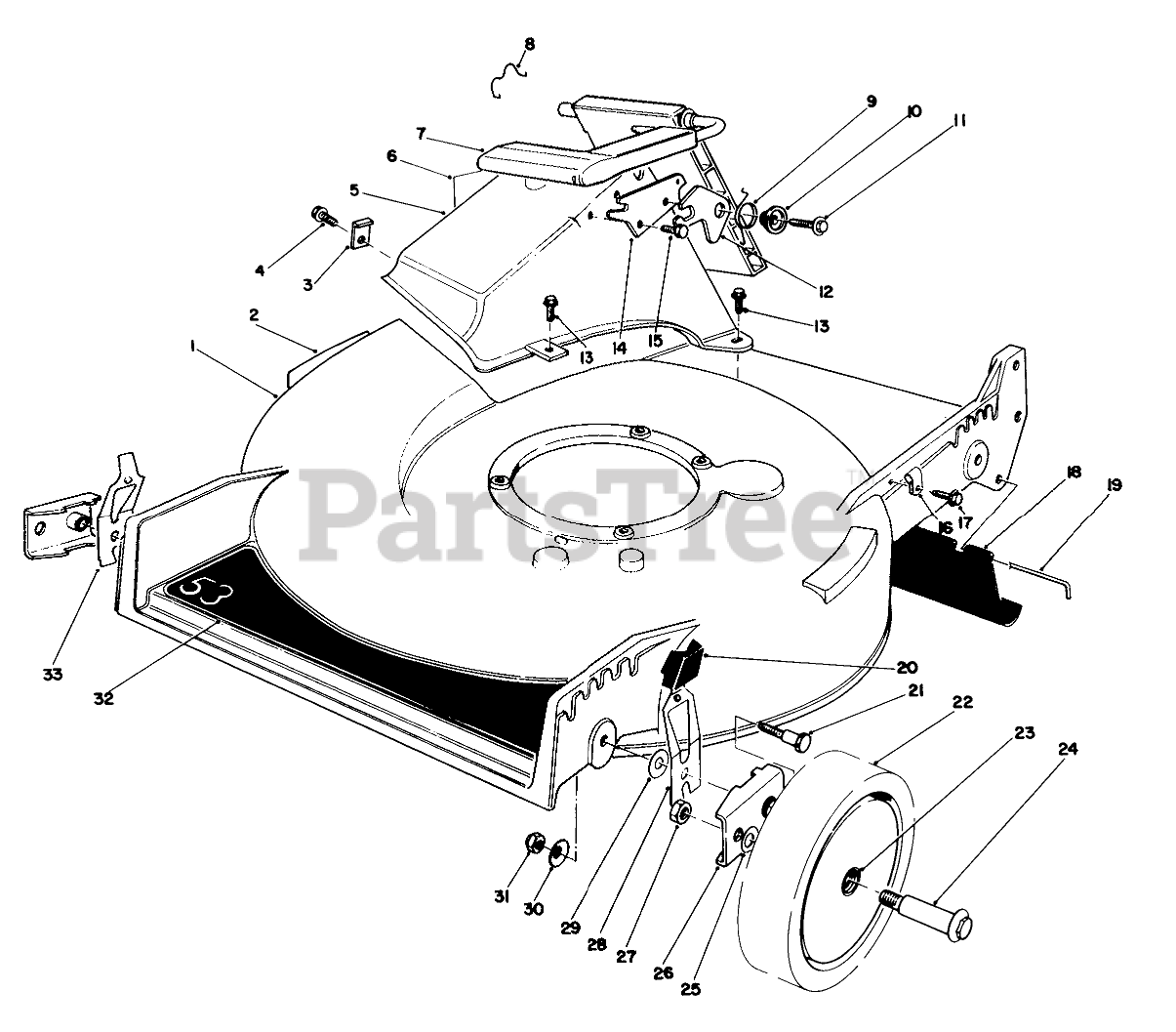

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 12-2699

Housing (Incl. Ref. #2)
(Superseded to 11-4069)

$1081.99

$

Usually ships in 3-6 days

0

2

Toro 62-3860

Decal Danger
(Superseded to 93-6667)

$

$

Not available

3

Toro 47-6540

TUNNEL CLIP

$

$

Not available

4

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

5

Toro 11-6239

Tunnel-Discharge (Incl. Ref. #6)
(Superseded to 116239-01)

$

$

Not available

6

Toro 62-4060

DECAL - DANGER

$

$

Not available

7

Toro 51-0200

Discharge Door Assembly
(Superseded to 77-0200)

$

$

Not available

8

Toro 47-5840

DOOR RET SPRING

$

$

Not available

9

Toro 33-4860

TORSION SPRING

$69.99

$

Usually ships in 3-6 days

0

10

Toro 43-4840

DOOR SPACER

$7.49

$

Usually ships in 3-6 days

0

11

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

12

Toro 42-4010

SAFETY LATCH

$

$

Not available

13

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

14

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

15

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

16

Toro 2412-83

CLAMP-CABLE

$

$

Not available

17

Toro 12-5450

SCREW

$8.99

$

In Stock, only 2 left!

0

18

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$27.99

$

In Stock, Qty 8

0

19

Toro 33-3208

ROD-SHIELD

$14.99

$

In Stock, Qty 12

0

20

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

21

Toro 44-5270

PIVOT SCREW

$8.99

$

In Stock, Qty 8

0

22

Toro 11-9509

Wheel & Tire Assembly (Inc. Ref. #23)
(Superseded to 51-2751)

$30.99

$

In Stock, only 2 left!

0

23

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 15

0

24

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

25

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

26

Toro 47-2940

HP PIVOT ARM ASM

$51.99

$

Usually ships in 3-6 days

0

27

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 15

0

28

Toro 52-7480

L. HP SPRING ARM ASM

$

$

Not available

29

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 9

0

30

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

31

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

32

Toro 62-3180

Decal-53

$

$

Not available

33

Toro 52-7490

R HP SPRING ARM ASM

$

$

Not available
