20526 C - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) ENGINE ASSEMBLY (MODEL NO. VMG6) Parts Diagram

Walk-Behind Mower

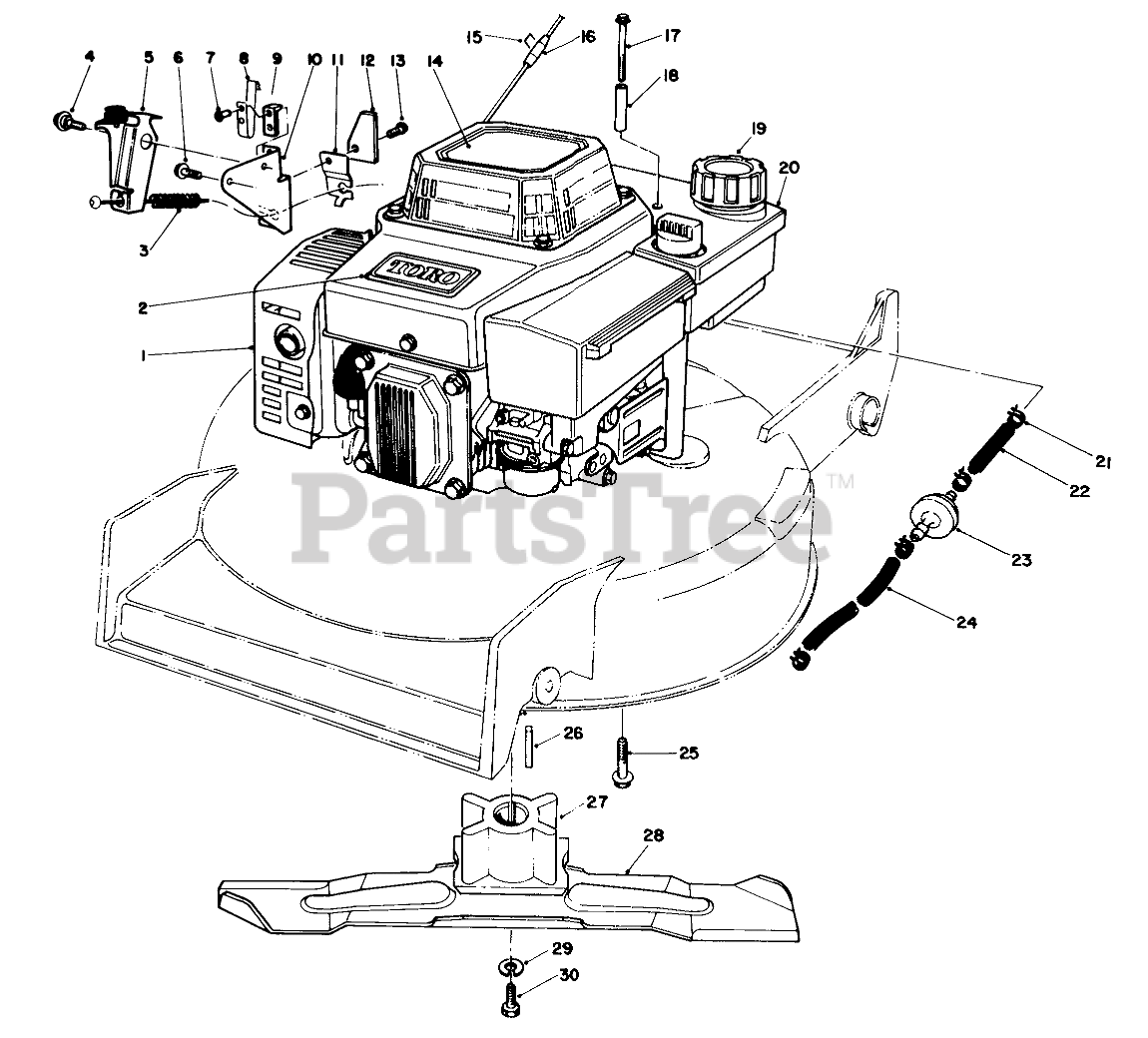

ENGINE ASSEMBLY (MODEL NO. VMG6) Parts Diagram

  • Title
1

Toro 62-5440

Engine
(Superseded to 72-4144)

$

$

Not available

2

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$2.49

$

In Stock, only 2 left!

0

3

Toro 56-6370

COMPRESSION SPRING

$7.49

$

Usually ships in 3-6 days

0

4

Toro 56-6190

Screw-Shoulder
(Superseded to 92-9698)

$5.49

$

Usually ships in 3-6 days

0

5

Toro 53-4770

BRAKE PLATE ASM
(Superseded to 66-5380)

$78.99

$

Usually ships in 3-6 days

0

6

Toro 46-0790

THO FORM SCREW M6 X 1

$

$

Not available

7

Toro 3290-459

RIVET-PLASTIC

$2.49

$

In Stock, only 1 left!

0

8

Toro 60-9010

STRAP-GROUND

$14.99

$

Usually ships in 3-6 days

0

9

Toro 60-9020

Strap-Insulation
(Superseded to 77-5260)

$2.99

$

Usually ships in 3-6 days

0

10

Toro 53-4620

Plate-Mounting
(Superseded to 14-6009)

$

$

Not available

11

Toro 53-4610

CABLE CLAMP

$

$

Not available

12

Toro 53-4690

STOP-GROUND STRAP

$4.49

$

In Stock, only 2 left!

0

13

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

14

Toro 57-3120

DECAL-HV INT'L

$

$

Not available

15

Staple

$

$

Not available

16

$7.49

$

In Stock, only 1 left!

0

17

Toro 56-6610

THRD FORMING SCREW

$5.49

$

Usually ships in 3-6 days

0

18

Toro 57-3830

TUBULAR SPACER

$5.99

$

Usually ships in 3-6 days

0

19

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 11

0

20

Toro 55-3530

TANK ASM

$160.99

$

In Stock, only 2 left!

0

21

Toro 2412-95

CLAMP-FUEL LINE

$1.99

$

In Stock, Qty 8

0

22

Toro 51-3211

LINE-GAS

$7.49

$

In Stock, only 3 left!

0

23

Toro 56-6360

FILTER-FUEL

$6.49

$

In Stock, Qty 20+

0

24

Toro 51-3214

HOSE-FUEL

$5.49

$

In Stock, only 2 left!

0

25

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

26

Toro 7-0036

KEY-SQUARE

$

$

Not available

27

Toro 46-7810

Retainer Blade
(Superseded to 62-7540)

$98.99

$

In Stock, only 1 left!

0

28

Toro 42-1000

BLADE-21in
(Superseded to 107-4276-03)

$28.99

$

Usually ships in 3-6 days

0

29

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

30

Toro 26-0670

SCREW-BLADE

$

$

Not available

Toro 56-6680

Drain Tube
(Superseded to 75-9850)

$

$

Not available

Toro 12-4599

Mounting Plate Assembly (Incl. Ref. #7-10)
(Superseded to 14-6009)

$

$

Not available
