20526 C - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) CONTROL PANEL HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

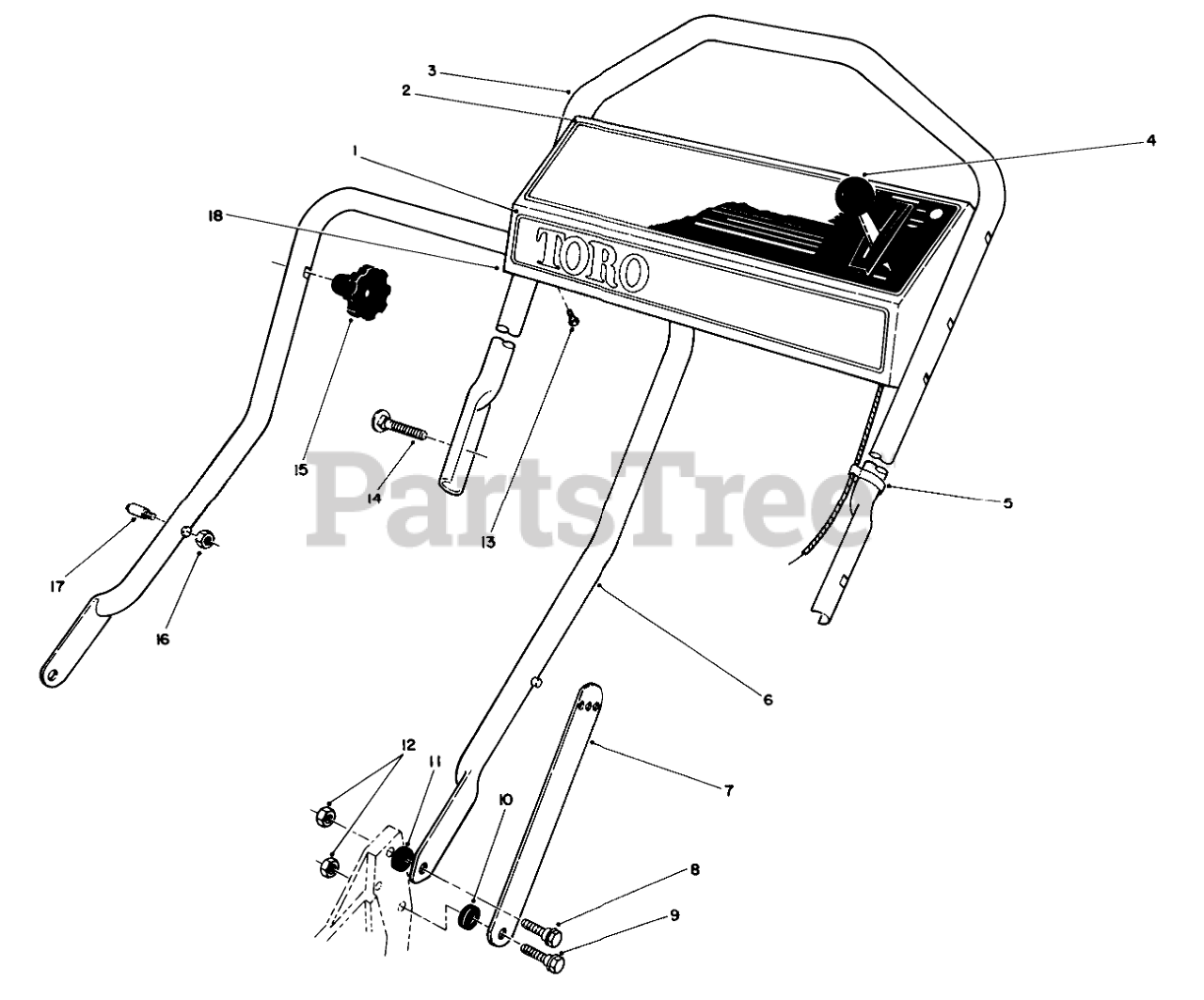

CONTROL PANEL HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 62-6740

Decal-Toro

$

$

Not available

2

Toro 62-4170

Decal-Control Panel

$

$

Not available

3

Toro 11-5589

Upper Handle Assembly (Incl. Ref. #4)

$

$

Not available

4

Toro 49-4193

THROTTLE CONT-SERVICE

$81.99

$

Usually ships in 3-6 days

0

5

Toro 218-465

BOWDEN CLIP

$

$

Not available

6

Toro 43-1361

Lower Handle Assembly (Incl. Ref. #17-18)

$

$

Not available

7

Toro 43-1370

Handle Latch
(Superseded to 98-7138)

$

$

Not available

8

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

9

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 1 left!

0

10

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

11

Toro 55-8060

SPACER

$0.99

$

In Stock, only 4 left!

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

14

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 5

0

15

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

16

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

17

Toro 49-2750

HANDLE PIN

$36.99

$

Usually ships in 3-6 days

0

18

Toro 49-1675

Control Panel

$

$

Currently unavailable
