20522 C - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) ENGINE ASSEMBLY (ENGINE MODEL NO. VMG6) Parts Diagram

Walk-Behind Mower

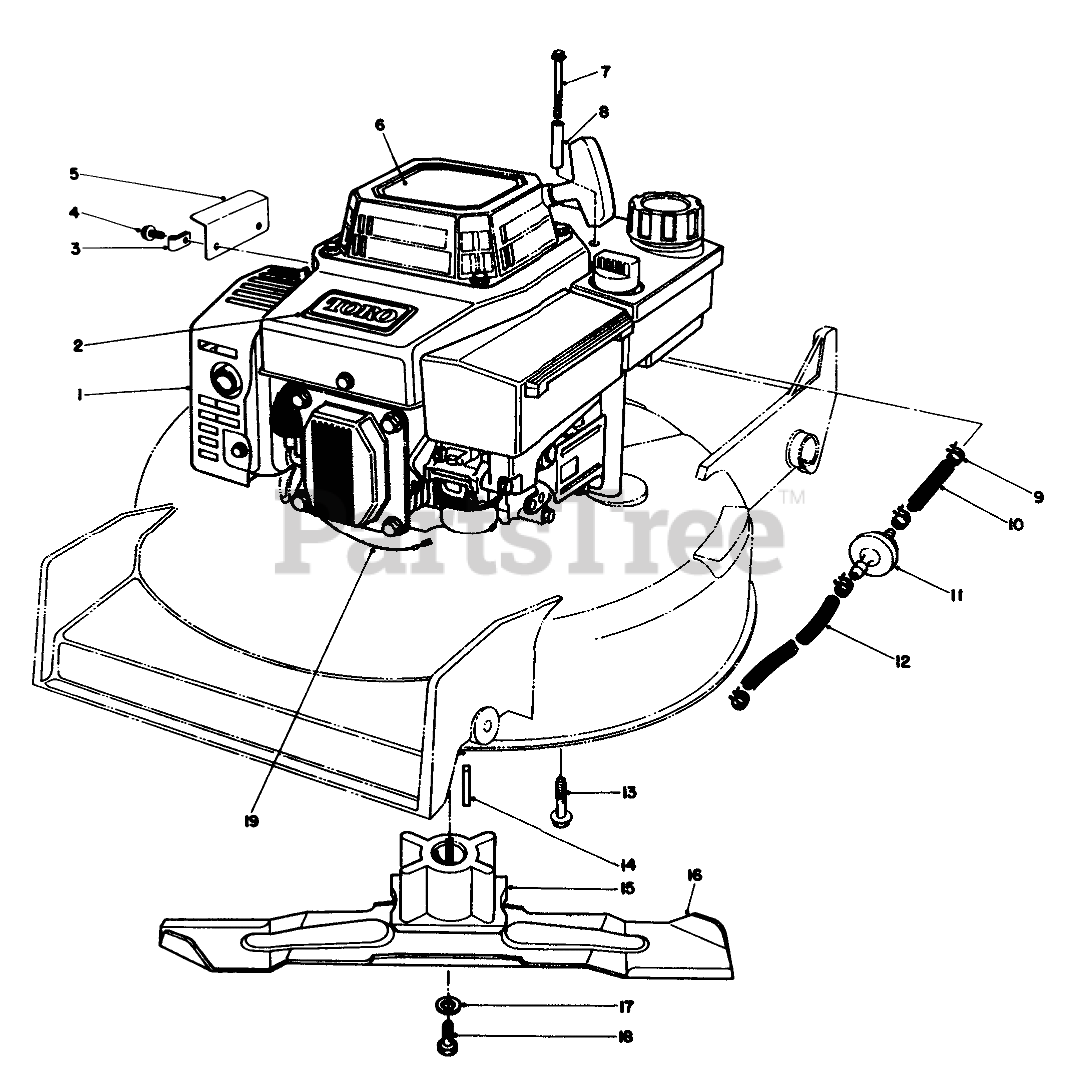

ENGINE ASSEMBLY (ENGINE MODEL NO. VMG6) Parts Diagram

  • Title

1

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

2

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$2.49

$

In Stock, only 2 left!

0

3

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

4

Toro 46-0790

THO FORM SCREW M6 X 1

$

$

Not available

5

Toro 55-7890

FLYWHEEL SHIELD

$

$

Not available

6

Toro 57-3120

DECAL-HV INT'L

$

$

Not available

7

Toro 56-6610

THRD FORMING SCREW

$5.49

$

Usually ships in 3-6 days

0

8

Toro 57-3830

TUBULAR SPACER

$5.99

$

Usually ships in 3-6 days

0

9

Toro 2412-95

CLAMP-FUEL LINE

$1.99

$

In Stock, Qty 8

0

10

Toro 51-3211

LINE-GAS

$7.49

$

In Stock, only 3 left!

0

11

Toro 56-6360

FILTER-FUEL

$6.49

$

In Stock, Qty 20+

0

12

Toro 51-3214

HOSE-FUEL

$5.49

$

In Stock, only 2 left!

0

13

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

14

Toro 7-0036

KEY-SQUARE

$

$

Not available

15

Toro 46-7810

Retainer Blade
(Superseded to 62-7540)

$98.99

$

In Stock, only 1 left!

0

16

Toro 42-1000

BLADE-21in
(Superseded to 107-4276-03)

$28.99

$

Usually ships in 3-6 days

0

17

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

18

Toro 26-0670

SCREW-BLADE

$

$

Not available

19

Toro 55-7900

Wire Assembly

$

$

Not available

Toro 56-6680

Drain Tube
(Superseded to 75-9850)

Note: Not illustrated

$

$

Not available
