20522 C - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

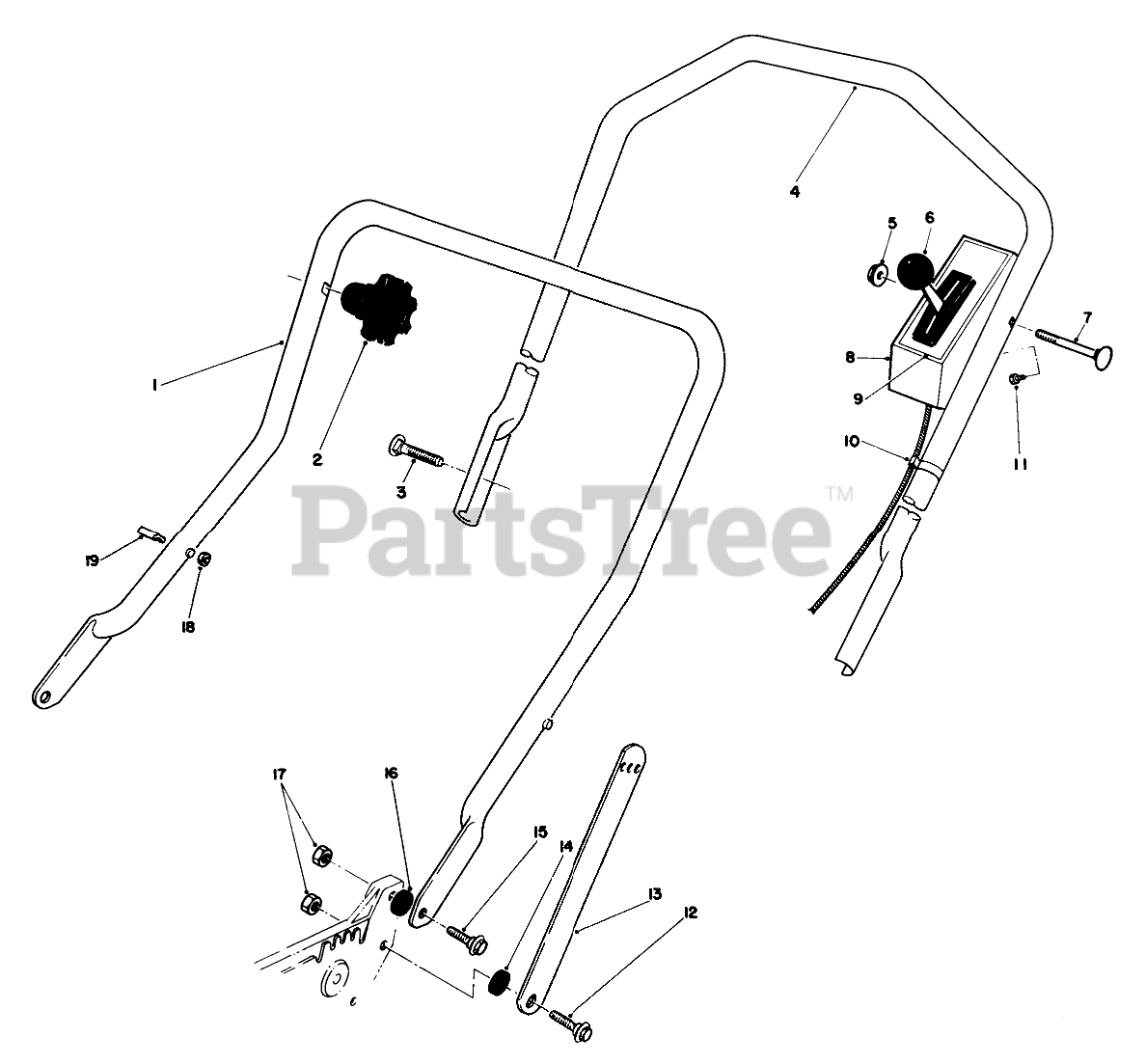

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 43-1361

LOWER HANDLE ASM

$

$

Not available

2

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

3

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, only 2 left!

0

4

Toro 46-5411

Handle-Upper
(Superseded to 84-8332)

$

$

Not available

5

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

6

Toro 49-4185

Throttle-Control, Sheath lg. 49-1/2", Wire lg. 2-9/16"
(Superseded to 49-4186)

$

$

Not available

7

Toro 46-6433

HANDLE SCREW

$14.99

$

Usually ships in 3-6 days

0

8

Toro 49-1650

CONTROL COVER

$

$

Not available

9

Toro 49-8000

CONTROL COVER DECAL

$

$

Not available

10

Toro 218-466

CLIP

$

$

Not available

11

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

12

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

13

Toro 43-1370

Handle Latch
(Superseded to 98-7138)

$

$

Not available

14

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

15

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 1 left!

0

16

Toro 55-8060

SPACER

$0.99

$

In Stock, only 4 left!

0

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 3296-47

NUT-LOCK, NI

Note: Service Replacement Parts

$3.99

$

In Stock, Qty 8

0

19

Toro 49-2750

HANDLE PIN

Note: Service Replacement Parts

$36.99

$

Usually ships in 3-6 days

0
