20511 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) HOUSING ASSEMBLY (USED ON UNITS WITH SERIAL NOW 9005568 THRU 9018484) Parts Diagram

Walk-Behind Mower

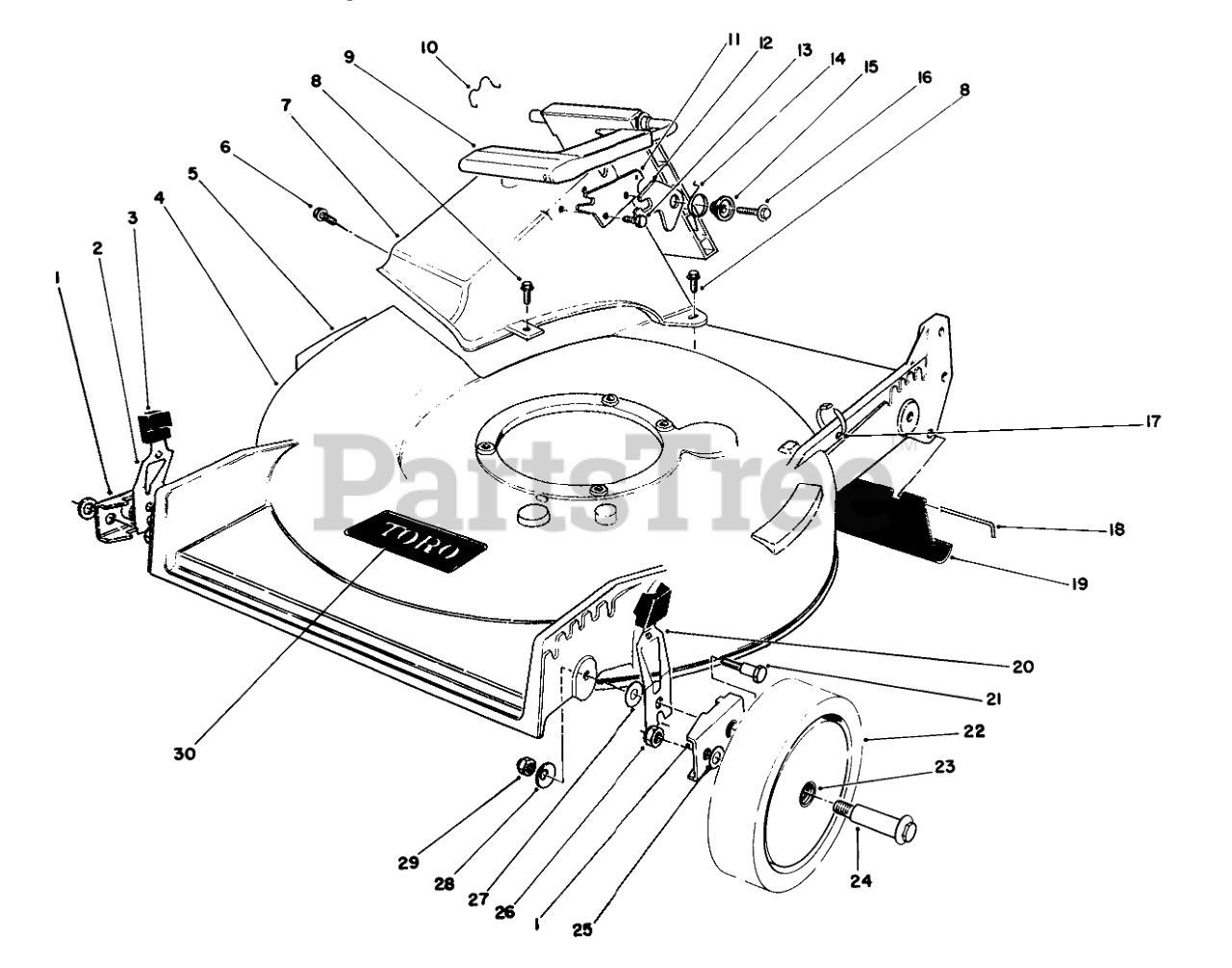

HOUSING ASSEMBLY (USED ON UNITS WITH SERIAL NOW 9005568 THRU 9018484) Parts Diagram

  • Title
1

Toro 47-2940

HP PIVOT ARM ASM

$

$

Not available

2

Toro 52-7480

L. HP SPRING ARM ASM

$

$

Not available

3

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

4

Toro 12-2699

Housing (Incl. Ref. #5)
(Superseded to 11-4069)

$1255.99

$

Usually ships in 3-6 days

0

5

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

6

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

In Stock, Qty 11

0

7

Toro 46-3500

Tunnel Discharge
(Superseded to 82-9151)

$192.99

$

Usually ships in 3-6 days

0

8

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

9

Toro 51-0201

Discharge Door Assembly
(Superseded to 77-0200)

$

$

Not available

10

Toro 47-5840

DOOR RET SPRING

$

$

Not available

11

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

12

Toro 42-4010

SAFETY LATCH

$

$

Not available

13

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

14

Toro 33-4860

TORSION SPRING

$68.99

$

Usually ships in 3-6 days

0

15

Toro 43-4840

DOOR SPACER

$8.49

$

Usually ships in 3-6 days

0

16

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

17

Toro 250-4

TIE-CABLE

$0.99

$

Usually ships in 3-6 days

0

18

Toro 47-4682

SHIELD ROD

$

$

Not available

19

Toro 29-9180

SHIELD - TRAILING

$67.99

$

Usually ships in 3-6 days

0

20

Toro 52-7490

R HP SPRING ARM ASM

$

$

Not available

21

Toro 44-5270

PIVOT SCREW

$10.99

$

In Stock, Qty 7

0

22

Toro 27-6200

Wheel & Tire Assembly (Incl. Ref. #23)

$

$

Not available

23

Toro 27-6250

BUSHING

$2.99

$

In Stock, only 4 left!

0

24

Toro 27-6230

BOLT-WHEEL

$8.49

$

In Stock, only 1 left!

0

25

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

26

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 15

0

27

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

28

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

29

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

30

Toro 70-2200

DECAL

$6.49

$

Usually ships in 3-6 days

0
