20511 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

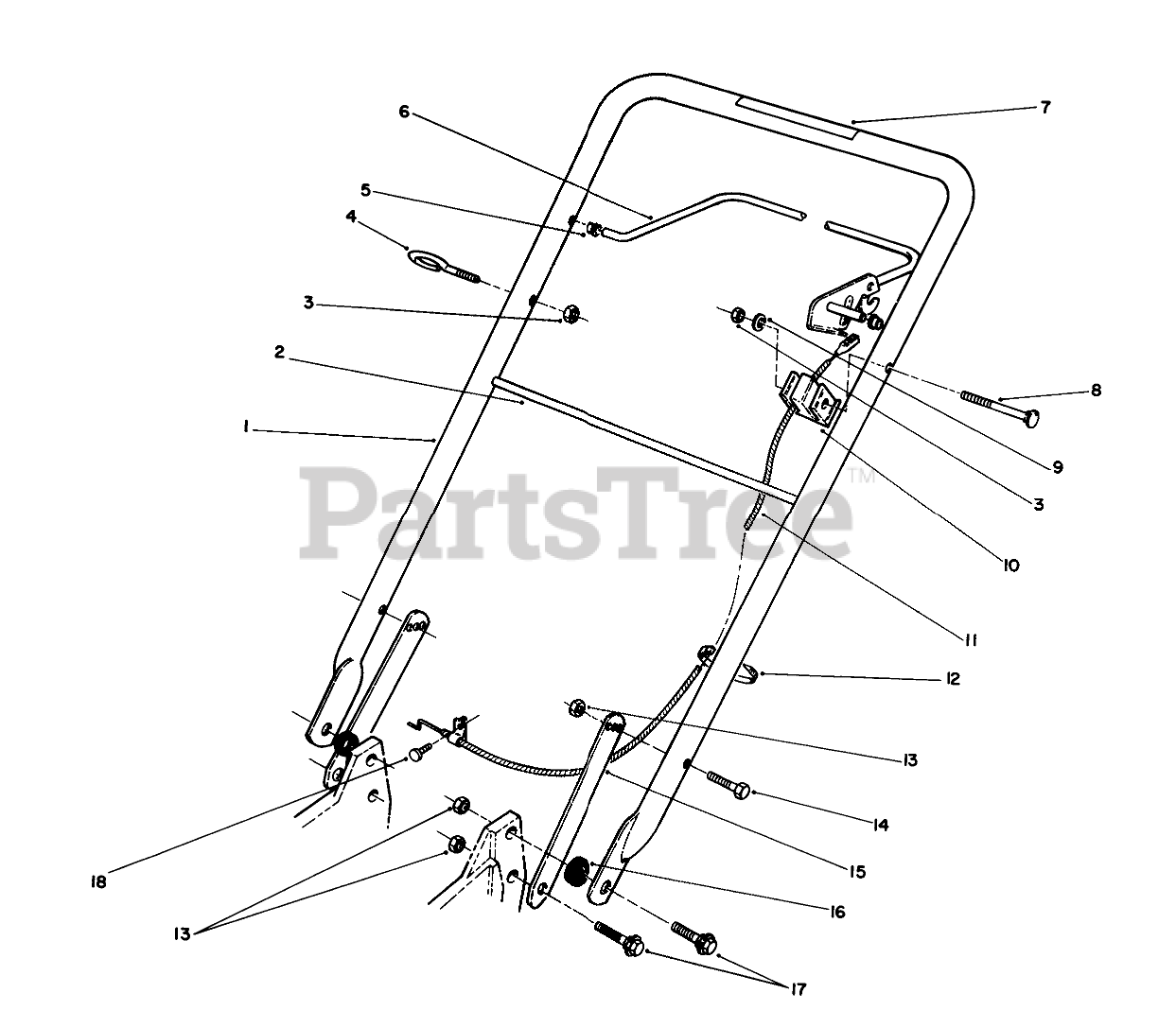

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 13-6749

Handle (Incl. Ref. #7)

$

$

Not available

2

Toro 71-0930

B ROD - BAG

$

$

Not available

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

4

Toro 71-2870

BOLT-EYE

$19.99

$

In Stock, only 2 left!

0

5

Toro 256-306

Bushing-Nyliner

$1.49

$

In Stock, Qty 9

0

6

Toro 70-7490

CONTROL BAR WA

$50.99

$

Usually ships in 3-6 days

0

7

Toro 72-4050

Decal-Warning

$

$

Not available

8

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 1 left!

0

11

Toro 46-8013

BRAKE CABLE

$

$

Not available

12

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, only 2 left!

0

14

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 65-5830

HANDLE LATCH
(Superseded to 65-5830-03)

$

$

Not available

16

Toro 26-4840

SPACER-PIN, MOUNTING

$6.49

$

Usually ships in 3-6 days

0

17

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

18

Toro 2210-250

SCREW-HH

$

$

Not available
