2051 - Jonsered Chainsaw (1993-05) CYLINDER PISTON MUFFLER Parts Diagram

Chainsaw

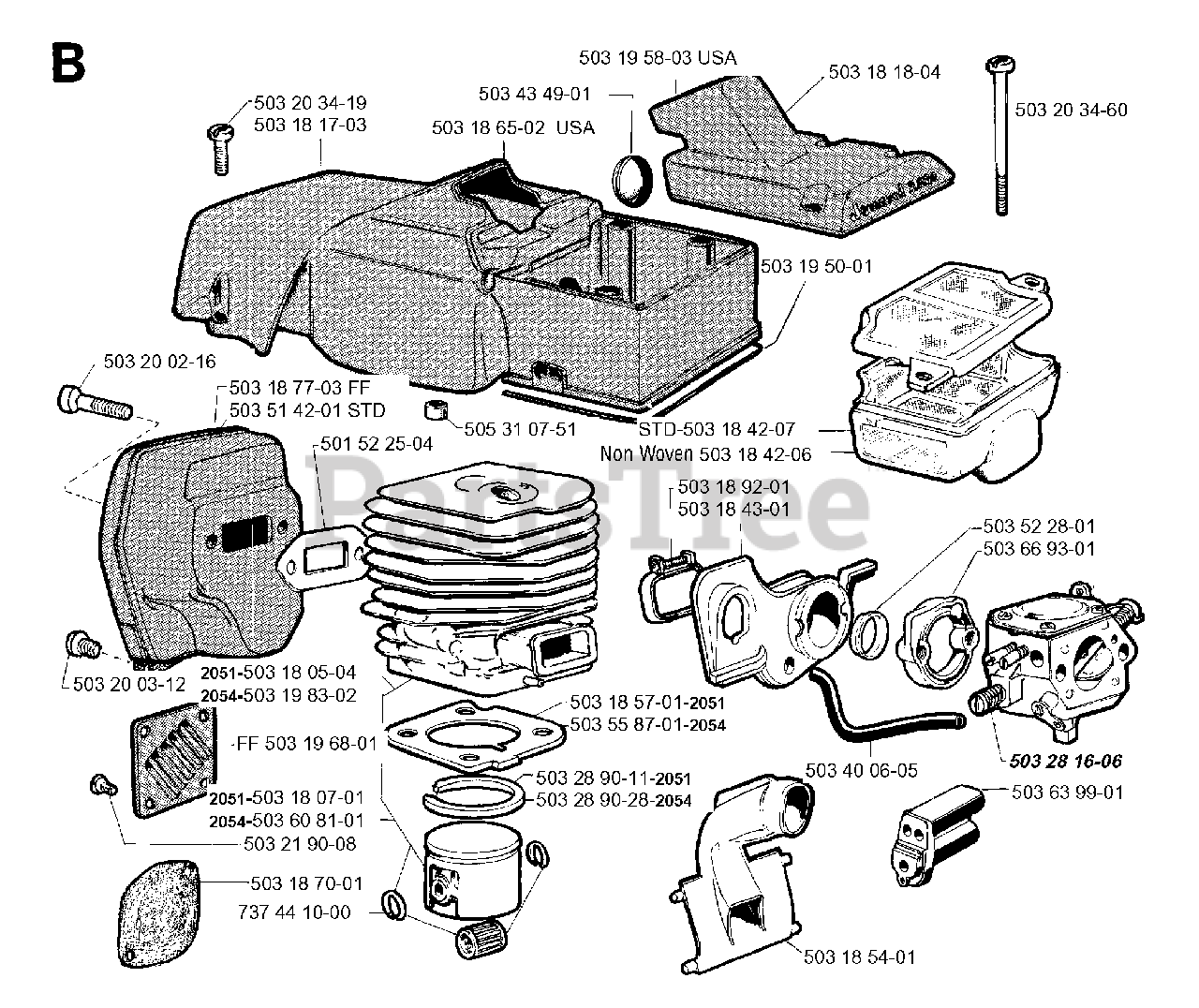

CYLINDER PISTON MUFFLER Parts Diagram

  • Title
5032034-19

$21.99

$

In Stock, Qty 13

0

5031817-03

Jonsered 503181703

CYLINDER COVER

$

$

Not available

5032002-16

$4.99

$

In Stock, Qty 20+

0

5031877-03

Jonsered 503187703

REPL BY 503 70 90-01
(Superseded to 503709001)

Note: FF

$

$

Not available

5035142-01

Jonsered 503514201

REPL BY 503 70 92-01
(Superseded to 503709201)

Note: STD

$

$

Not available

5032003-12

$6.99

$

Usually ships in 3-10 days

0

7374410-00

Jonsered 737441000

LOCKING RING

$6.49

$

In Stock, only 1 left!

0

5031870-01

Jonsered 503187001

SPARK ARRESTOR

$

$

Not available

5032190-08

Jonsered 503219008

SCREW
(Superseded to 503205508)

$

$

Not available

5036081-01

Jonsered 503608101

PISTON 55
(Superseded to 503608171)

Note: 2054

$146.99

$

In Stock, Qty 5

0

5031807-01

Jonsered 503180701

PISTON CPL 45 MM

Note: 2051

$

$

Not available

5031968-01

Jonsered 503196801

OUTLET NLA

Note: FF

$

$

Not available

5031983-02

Jonsered 503198302

CYLINDER CPL.

Note: 2054

$

$

Not available

5031805-04

Jonsered 503180504

CYLINDER CPL.

Note: 2051

$

$

Not available

5015225-04

Jonsered 501522504

GASKET SILENCER

$5.99

$

In Stock, only 1 left!

0

5034349-01

$2.49

$

Usually ships in 3-10 days

0

5031865-02

Jonsered 503186502

CYLINDER COVER

Note: USA

$

$

Not available

5053107-51

Jonsered 505310751

IMPULSE PIPE

$10.99

$

In Stock, Qty 5

0

5032890-28

Jonsered 503289028

PISTON RING
(Superseded to 503289014)

Note: 2054

$31.99

$

In Stock, only 3 left!

0

5032890-11

Jonsered 503289011

%PISTON RING
(Superseded to 544435001)

Note: 2051

$31.99

$

In Stock, only 2 left!

0

5035587-01

Jonsered 503558701

GASKET

Note: 2054

$

$

Not available

5031857-01

Jonsered 503185701

GASKET

Note: 2051

$

$

Not available

5031843-01

$

$

Not available

5031892-01

$

$

Not available

5031842-06

Jonsered 503184206

REPL BY 503 18 42-07
(Superseded to 503184207)

Note: NON WOVEN

$

$

Not available

5031842-07

Jonsered 503184207

AIR FILTER

Note: STD

$

$

Not available

5031958-03

Jonsered 503195803

FILTER COVER, USA

Note: USA

$

$

Not available

5031950-01

$7.82

$

Usually ships in 3-10 days

0

5034006-05

$

$

Not available

5031854-01

$

$

Not available

5036399-01

$

$

Not available

5032816-06

Jonsered 503281606

REPL BY 503 28 16-09
(Superseded to 503281609)

$

$

Not available

5036693-01

$

$

Not available

5035228-01

$

$

Not available

5032034-60

$

$

Not available

5031818-04

Jonsered 503181804

FILTER COVER

$

$

Not available
