2051 - Jonsered Chainsaw (1993-05) CLUTCH OIL PUMP Parts Diagram

Chainsaw

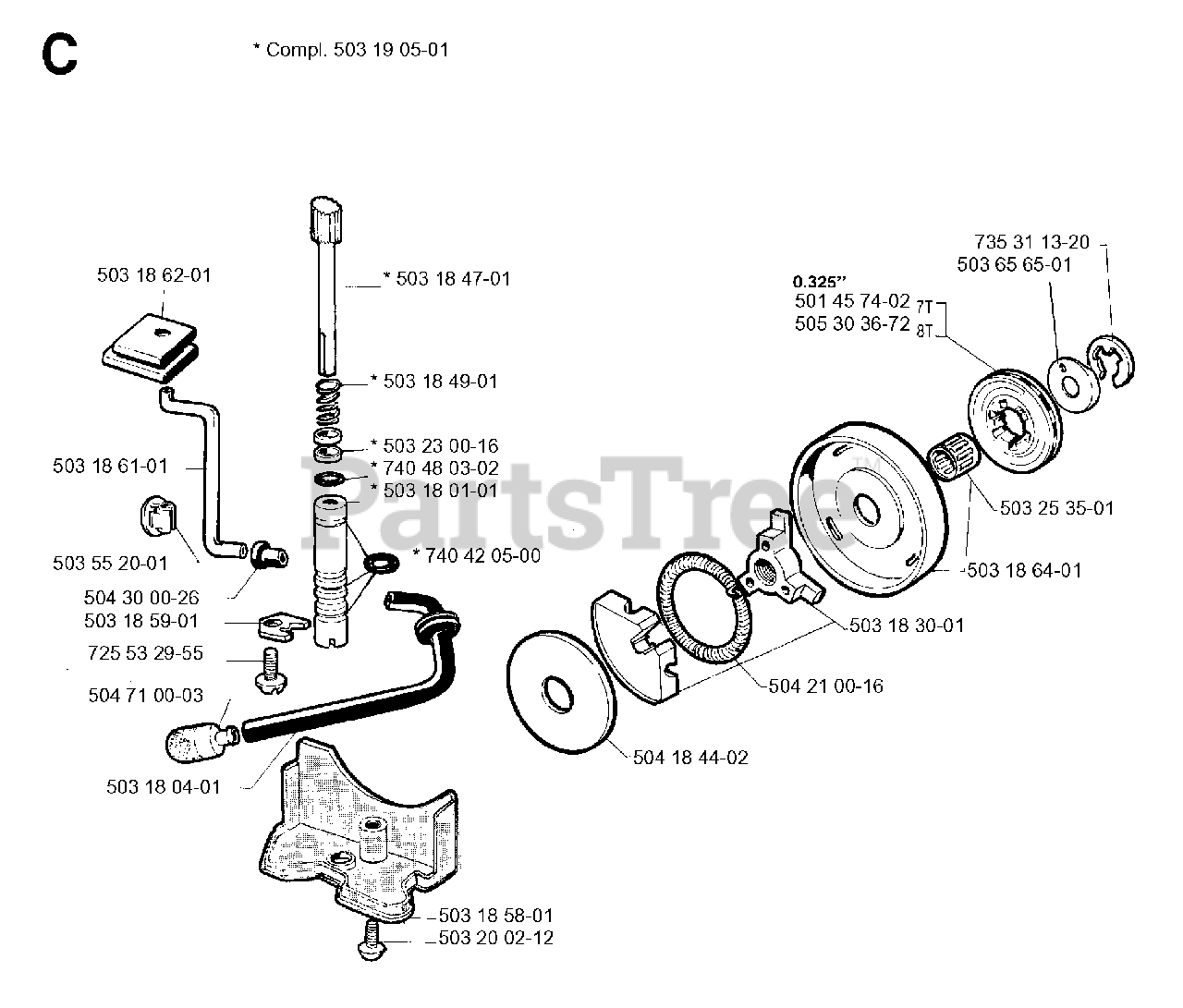

CLUTCH OIL PUMP Parts Diagram

  • Title

5031905-01

Jonsered 503190501

OIL PUMP

$

$

Not available

5031862-01

Jonsered 503186201

SEALING

$

$

Not available

5031861-01

Jonsered 503186101

OILPIPE

$

$

Not available

5035520-01

Jonsered 503552001

CLAMP

$

$

Not available

5043000-26

Jonsered 504300026

SEAL

$4.99

$

In Stock, Qty 5

0

5031859-01

Jonsered 503185901

WASHER

$

$

Not available

7255329-55

Jonsered 725532955

SCREW MC6S 5X16

$7.99

$

In Stock, Qty 20+

0

5047100-03

Jonsered 504710003

OIL PLUMMET

$11.99

$

Usually ships in 3-10 days

0

5031804-01

Jonsered 503180401

OIL HOSE

$

$

Not available

5032002-12

Jonsered 503200212

SCREW
(Superseded to 503200712)

$7.49

$

In Stock, Qty 11

0

5031858-01

Jonsered 503185801

GUARD

$

$

Not available

7404205-00

Jonsered 740420500

O-RING

$4.99

$

Usually ships in 3-10 days

0

5031801-01

Jonsered 503180101

PUMP CYLINDER

$

$

Not available

7404803-02

Jonsered 740480302

REPL BY 740 48 03-12

$

$

Not available

5032300-16

Jonsered 503230016

WASHER 5.1X8.5

$4.99

$

In Stock, Qty 20+

0

5031849-01

Jonsered 503184901

SPRING

$4.99

$

In Stock, only 2 left!

0

5031847-01

Jonsered 503184701

PUMP PLUNGER

$

$

Not available

5041844-02

Jonsered 504184402

WASHER

$

$

Not available

5042100-16

Jonsered 504210016

SPRING

$5.99

$

In Stock, only 3 left!

0

5031830-01

Jonsered 503183001

CLUTCH COMPL

$

$

Not available

5031864-01

Jonsered 503186401

REPL BY 503 88 05-01
(Superseded to 503880501)

$

$

Not available

5032535-01

Jonsered 503253501

REPL BY 503 25 39-01
(Superseded to 503253901)

$

$

Not available

5033036-72

Jonsered 503303672

No Description Available

Note: 0 325 8T

$

$

Not available

5014574-02

Jonsered 501457402

RIM SPROCKET 7T .325
(Superseded to 640200010)

Note: 0 325 7T

$8.49

$

In Stock, Qty 6

0

5036565-01

Jonsered 503656501

WASHER

$

$

Not available

7353113-20

Jonsered 735311320

E-RING

$7.49

$

In Stock, Qty 13

0
