20507x4B - Murray 20" Walk-Behind Mower (1997) Mower Housing Assembly Parts Diagram

20" Walk-Behind Mower

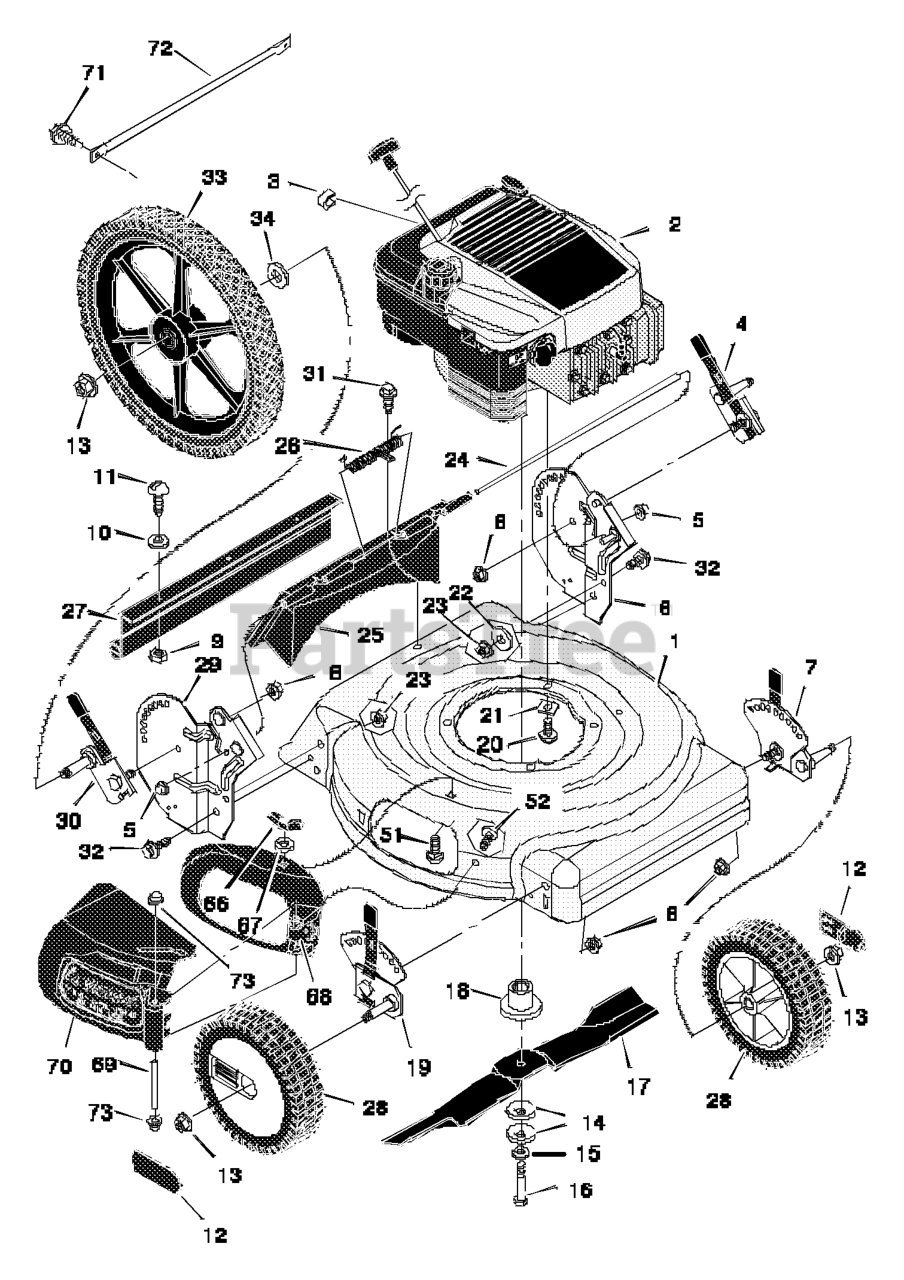

Mower Housing Assembly Parts Diagram

  • Title
1

Murray 776004

Housing

$

$

Currently unavailable

2

Engine *

$

$

Not available

3

Murray 042189MA

Stop, Rope (Recoil - Start)

$3.99

$

Usually ships in 2-12 days

0

4

Murray 671977

Adjuster, Left Height

$10.99

$

Usually ships in 2-12 days

0

5

Murray 028X49MA

Push On Cap

$3.99

$

In Stock, Qty 13

0

6

Murray 672262

Bracket, Left Handle

$

$

Currently unavailable

7

Murray 671973MA

Adjuster, Left Front Height

$

$

Not available

8

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

9

Murray 15X102MA

Nut, Hex

$3.99

$

Usually ships in 2-12 days

0

10

$3.99

$

Usually ships in 2-12 days

0

11

$3.99

$

Usually ships in 2-12 days

0

12

Murray 043615MA

Hub Cap

Note: (Optional)

$4.49

$

Usually ships in 2-12 days

0

13

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

14

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

15

$4.49

$

Usually ships in 2-12 days

0

16

$8.49

$

In Stock, only 2 left!

0

$

$

Not available

18

Murray 071056MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

19

Murray 671972MA

Adjuster, Right Front Height

$

$

Not available

20

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

21

Murray 671989

Support, Engine

$

$

Currently unavailable

22

$5.49

$

Usually ships in 2-12 days

0

23

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

24

Murray 215X17 Z

Rod, Pivot

$

$

Currently unavailable

25

Murray 671915

Door, Rear

$10.99

$

Usually ships in 2-12 days

0

26

$14.99

$

In Stock, only 1 left!

0

27

Murray 671969MA

Guard, Rear

$18.99

$

Usually ships in 2-12 days

0

28

Wheel *

$

$

Not available

29

Murray 672261

Bracket, Right Handle

$

$

Currently unavailable

30

Murray 671976

Adjuster, Right Height

$9.99

$

Usually ships in 2-12 days

0

31

$4.49

$

In Stock, only 4 left!

0

32

$3.99

$

Usually ships in 2-12 days

0

33

Wheel, Rear *

$

$

Not available

34

$

$

Currently unavailable

51

Murray 002X16MA

Bolt, Carriage

$3.99

$

Usually ships in 2-12 days

0

52

$3.49

$

Usually ships in 2-12 days

0

66

Murray 071495MA

Wingnut

$4.99

$

In Stock, only 3 left!

0

67

Murray 028X64MA

Retainer, Push
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

68

$

$

Not available

69

Murray 215X18 Z

Pin, Pivot

$

$

Currently unavailable

70

Murray 671927

Deflector, Chute

$3.99

$

Usually ships in 2-12 days

0

71

$4.99

$

In Stock, only 1 left!

0

72

$

$

Currently unavailable

73

Murray 028X42MA

Push On Cap

$3.99

$

Usually ships in 2-12 days

0

--

Murray F-97535

Instruction Book

$

$

Currently unavailable
