2050 WT - Poulan Wildthing Chainsaw, Type 7 Engine Assembly Type 7 Parts Diagram

Wildthing Chainsaw, Type 7

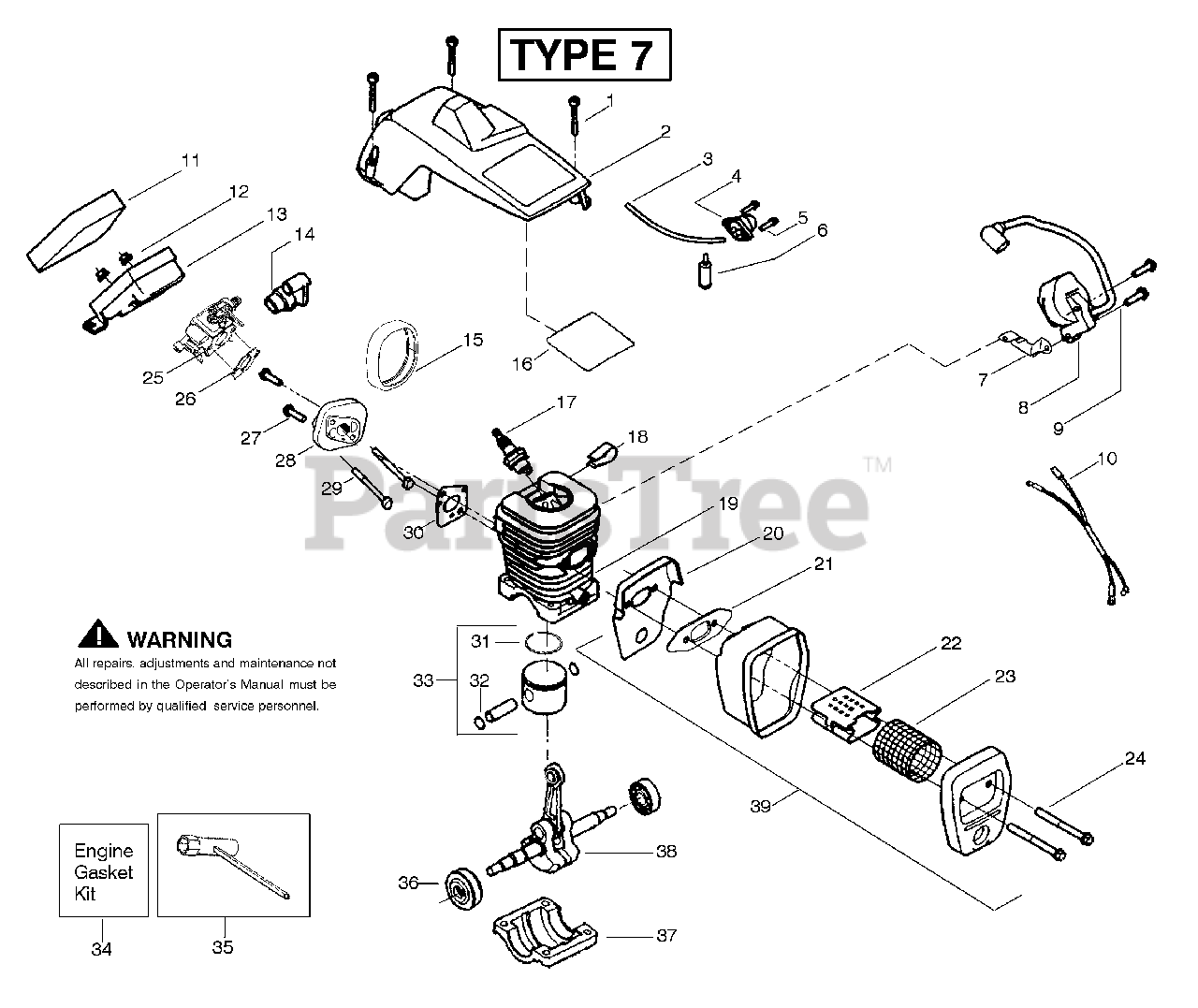

Engine Assembly Type 7 Parts Diagram

  • Title

1

Poulan 530016153

Screw

$6.49

$

Usually ships in 3-10 days

0

2

Poulan 530055639

Assy-Cylinder Shield

Note: (includes # 16)

$12.99

$

Usually ships in 3-10 days

0

3

Poulan 530069247

Kit-Fuel Line (Small)

$7.99

$

In Stock, Qty 20+

0

4

Poulan 530047213

Assy-Air Purge
(Superseded to 530071835)

$11.99

$

In Stock, Qty 9

0

5

Poulan 530015780

Screw

$6.49

$

In Stock, only 2 left!

0

6

Poulan 530095646

Assy-Fuel Pick-up

$6.99

$

In Stock, Qty 20+

0

7

Poulan 530047442

Strap-Ground

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 530039198

Ignition Module

$56.99

$

In Stock, only 1 left!

0

9

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 16

0

10

Poulan 530052296

Assy-Wire Harness

$7.49

$

Usually ships in 3-10 days

0

11

Poulan 530037793

Foam-Air Filter

$4.99

$

In Stock, Qty 19

0

12

Poulan 530016101

Nut

$6.49

$

Usually ships in 3-10 days

0

13

Poulan 530057480

Assy-Air Box

$

$

Not available

14

Poulan 530035526

Grommet-Carb Adjust

$

$

Not available

15

Poulan 530054144

Seal-Carb Adapter

$

$

Not available

16

Poulan 530055698

Reflector-Heat

$3.99

$

In Stock, only 1 left!

0

17

Poulan 952030150

Spark Plug (RCJ-7Y)

$3.99

$

In Stock, Qty 20+

0

18

Poulan 530016136

Clip-High Tension Lead

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 530012550

Cylinder

$51.99

$

Usually ships in 3-10 days

0

20

Poulan 530049870

Backplate-Muffler

$6.49

$

Usually ships in 3-10 days

0

21

Poulan 530069608

Gasket-Muffler(kit)

$8.99

$

In Stock, Qty 10

0

22

Poulan 530037813

Diffuser-Muffler

$4.99

$

In Stock, only 1 left!

0

23

Poulan 530036103

Screen-Spark

$

$

Not available

24

Poulan 530016132

Bolt-Muffler

$6.49

$

In Stock, Qty 10

0

25

Poulan 530071820

Kit-Carburetor Zama (W-20)
(Superseded to 545081885)

$34.99

$

Usually ships in 3-10 days

0

25

Poulan 530071821

Kit-Carburetor Walbro (WT-662)
(Superseded to 545081885)

Note: (Note: Repair kits are not available for these carburetors.)

$34.99

$

Usually ships in 3-10 days

0

26

Poulan 530069608

Gasket-Carb. (kit)

$8.99

$

In Stock, Qty 10

0

27

Poulan 530016386

Screw

$8.99

$

In Stock, only 1 left!

0

28

Poulan 530049700

Carb. Adapter

$10.99

$

In Stock, only 1 left!

0

29

Poulan 530016187

Screw

$6.49

$

In Stock, only 2 left!

0

30

Poulan 530069608

Gasket- Adaptor(kit)

$8.99

$

In Stock, Qty 10

0

31

Poulan 530038729

Ring-Piston
(Superseded to 545160401)

$6.49

$

In Stock, only 2 left!

0

32

Poulan 530015697

Retainer-Piston Pin

$6.49

$

In Stock, Qty 6

0

33

Poulan 530071408

Kit-Piston

Note: (Incl. 31 & 32)

$

$

Not available

34

Poulan 530069608

Kit-Engine Gasket

Note: (Incl. 21, 26 & 30)

$8.99

$

In Stock, Qty 10

0

35

Poulan 530031163

Bar Wrench

$9.99

$

In Stock, Qty 12

0

36

Poulan 530056363

Assy-Seal & Bearing

$18.99

$

In Stock, only 2 left!

0

37

Poulan 530037935

Cap-Crankcase

$10.99

$

Usually ships in 3-10 days

0

38

Poulan 530047062

Assy-Crankshaft
(Superseded to 545113101)

$72.99

$

In Stock, only 1 left!

0

39

Poulan 530047207

Assy-Muffler
(Superseded to 530071904)

Note: (Incl. 20-24)

$20.99

$

Usually ships in 3-10 days

0

Poulan 530164603

Manuals

Note: Not Shown

$

$

Not available

Poulan 530057757

Decal-Warning

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0

Poulan 530059229

Decal-Start Inst.

Note: Not Shown

$

$

Not available
