2050 WT - Poulan Wildthing Chainsaw, Type 7 Chassis & Handle Assembly Type 7 Parts Diagram

Wildthing Chainsaw, Type 7

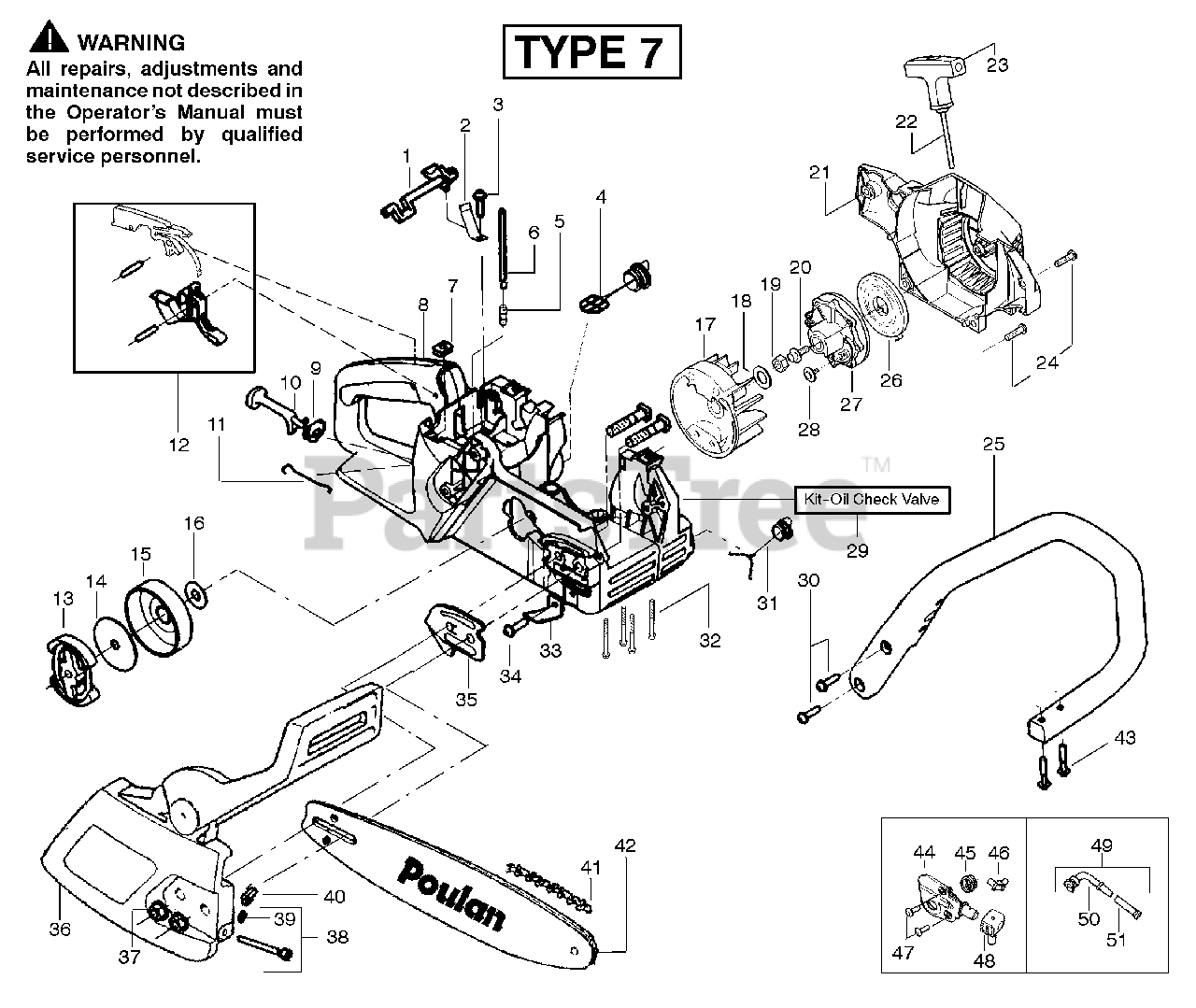

Chassis & Handle Assembly Type 7 Parts Diagram

  • Title

1

Poulan 530038227

Lever-Switch

Note: (Includes Pin)

$

$

Not available

2

Poulan 530016149

Spring-Switch

$

$

Not available

3

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

4

Poulan 530047192

Assy-Fuel Cap
(Superseded to 580940901)

$7.99

$

In Stock, Qty 7

0

5

Poulan 530023877

Fitting

$5.99

$

In Stock, Qty 17

0

6

Poulan 530069216

Kit-Fuel Line (Large)

$11.99

$

In Stock, Qty 20+

0

7

Poulan 530015922

Nut-Speed

$6.49

$

In Stock, Qty 5

0

8

Poulan 530058909

Assy-Chassis

$

$

Not available

9

Poulan 530049005

Grommet-Choke Knob

$

$

Not available

10

Poulan 530047989

Lever-Choke

$

$

Not available

11

Poulan 530037809

Wire-Throttle

$

$

Not available

12

Poulan 530071832

Kit-Trigger & Lockout

$

$

Not available

13

Poulan 530014949

Assy. - Clutch

$22.99

$

In Stock, only 2 left!

0

14

Poulan 530015611

Washer-Clutch

$6.49

$

In Stock, Qty 6

0

15

Poulan 530047061

Assy-Drum W/brg.

$17.99

$

In Stock, Qty 5

0

16

Poulan 530015907

Washer - Thrust

$

$

Not available

17

Poulan 530039187

Assy-Flywheel
(Superseded to 530047534)

$

$

Not available

18

Poulan 530015127

Washer-Flywheel

$6.49

$

In Stock, only 1 left!

0

19

Poulan 530016134

Nut-Flywheel

$6.49

$

In Stock, only 1 left!

0

20

Poulan 530015920

Screw

$6.49

$

In Stock, Qty 7

0

21

Poulan 530049337

Housing-Fan

$11.99

$

Usually ships in 3-10 days

0

22

Poulan 530069232

Kit-Rope

$7.49

$

In Stock, Qty 17

0

23

Poulan 530056402

Handle-Starter

$6.49

$

In Stock, only 1 left!

0

24

Poulan 530015892

Screw

$6.49

$

In Stock, Qty 20+

0

25

Poulan 530056798

Handle-Front
(Superseded to 530059173)

$

$

Not available

26

Poulan 530027531

Spring-Starter
(Superseded to 545008015)

$7.99

$

In Stock, Qty 16

0

27

Poulan 530037817

Pulley-Starter
(Superseded to 545034301)

$

$

Not available

28

Poulan 530016080

Screw

$6.49

$

Usually ships in 3-10 days

0

29

Poulan 530071666

Kit-Oil Check Valve

$

$

Not available

30

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 16

0

31

Poulan 530010846

Assy-Oil Cap
(Superseded to 530057236)

$

$

Not available

32

Poulan 530016132

Screw

$6.49

$

In Stock, Qty 10

0

33

Poulan 530029850

Chain Catcher

$6.49

$

In Stock, Qty 6

0

34

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 16

0

35

Poulan 530038238

Plate-Bar Mounting

$

$

Not available

36

Poulan 530054740

Assy-Chain Brake
(Superseded to 545139903)

$93.99

$

In Stock, Qty 11

0

37

Poulan 530015917

Nut-Bar Mounting

$3.99

$

In Stock, Qty 20+

0

38

Poulan 530069611

Kit-Bar Adjust

Note: (incl. 39,40)

$9.49

$

In Stock, Qty 8

0

39

Poulan 530038593

Retainer-Bar Adjust

$4.99

$

In Stock, Qty 20+

0

40

Poulan 530015826

Pin-Bar Adjust

$4.99

$

In Stock, Qty 20+

0

41

Poulan 952051209

Chain-14"
(Superseded to 581562101)

$

$

Not available

42

Poulan 952044368

Bar-14"

$

$

Not available

43

Poulan 530015940

Screw

$6.49

$

In Stock, Qty 8

0

44

Poulan 530071259

Kit-Oil Pump

Note: (incl 45,46,48)

$

$

Not available

45

Poulan 530037820

Gear-Worm Spring

$6.49

$

In Stock, only 2 left!

0

46

Poulan 530049477

Elbow-Oil Pickup

$4.99

$

In Stock, only 3 left!

0

47

Poulan 530016064

Screw

$4.99

$

In Stock, only 2 left!

0

48

Poulan 530019206

Seal Block

$6.49

$

Usually ships in 3-10 days

0

49

Poulan 530047663

Assy-Oil-Pickup

Note: (Incl. 50-51)

$6.99

$

In Stock, Qty 5

0

50

Poulan 530038373

Pickup-Oiler

$4.99

$

Usually ships in 3-10 days

0

51

Poulan 530056533

Filter-Oil

$6.49

$

In Stock, only 1 left!

0
