2050 - Jonsered Chainsaw (2001-09) CRANKCASE Parts Diagram

Chainsaw

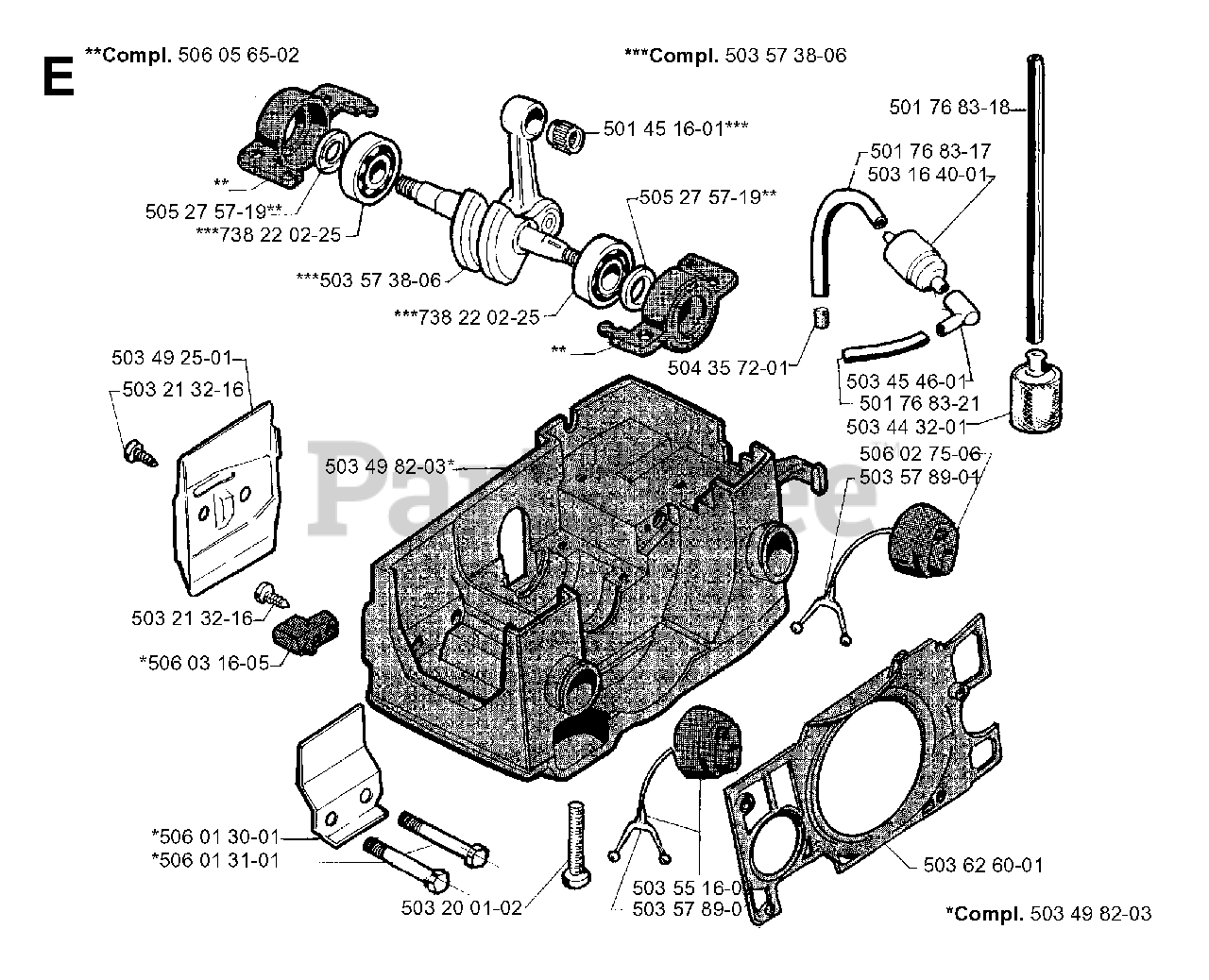

CRANKCASE Parts Diagram

  • Title
5060565-02

Jonsered 506056502

CRANKSHAFT CPL (2 PC)

$

$

Not available

5052757-19

Jonsered 505275719

SEAL RING

$19.99

$

In Stock, Qty 5

0

7382202-25

Jonsered 738220225

BALL BEARING-6202-C3 SKF

$31.99

$

Usually ships in 3-10 days

0

5035738-06

Jonsered 503573806

CRANKSHAFT

$265.99

$

Usually ships in 3-10 days

0

7382202-25

Jonsered 738220225

BALL BEARING-6202-C3 SKF

$31.99

$

Usually ships in 3-10 days

0

5034925-01

Jonsered 503492501

CHAIN GUIDE

$

$

Not available

5032132-16

$2.49

$

Usually ships in 3-10 days

0

5032132-16

$2.49

$

Usually ships in 3-10 days

0

5060316-05

Jonsered 506031605

CHAIN CATCHER

$

$

Not available

5060130-01

Jonsered 506013001

HEAT SHIELD
(Superseded to 538242499)

$4.46

$

Usually ships in 3-10 days

0

5060131-01

$5.99

$

Usually ships in 3-10 days

0

5032001-02

$

$

Not available

5034982-03

$268.87

$

Usually ships in 3-10 days

0

5035516-02

$

$

Not available

5035789-01

$9.99

$

In Stock, Qty 15

0

5034982-03

$268.87

$

Usually ships in 3-10 days

0

5036260-01

Jonsered 503626001

AIR CONDUCTOR

$13.84

$

Usually ships in 3-10 days

0

5035789-01

$9.99

$

In Stock, Qty 15

0

5060275-06

$

$

Not available

5034432-01

Jonsered 503443201

FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

5017683-21

Jonsered 501768321

TUBE
(Superseded to 544324922)

$7.49

$

Usually ships in 3-10 days

0

5034546-01

Jonsered 503454601

CONNECTOR

$6.49

$

In Stock, only 4 left!

0

5043572-01

Jonsered 504357201

No Description Available

$9.99

$

In Stock, Qty 6

0

5052757-19

Jonsered 505275719

SEAL RING

$19.99

$

In Stock, Qty 5

0

5014516-01

Jonsered 501451601

RP SUPPORT BUSHING
(Superseded to 503256301)

$24.99

$

In Stock, only 1 left!

0

5031640-01

Jonsered 503164001

No Description Available

$34.99

$

Usually ships in 3-10 days

0

5017683-17

$

$

Not available

5017683-18

Jonsered 501768318

HOSE, 130 MM.
(Superseded to 544324920)

$

$

Not available

5035738-06

Jonsered 503573806

CRANKSHAFT

$265.99

$

Usually ships in 3-10 days

0
