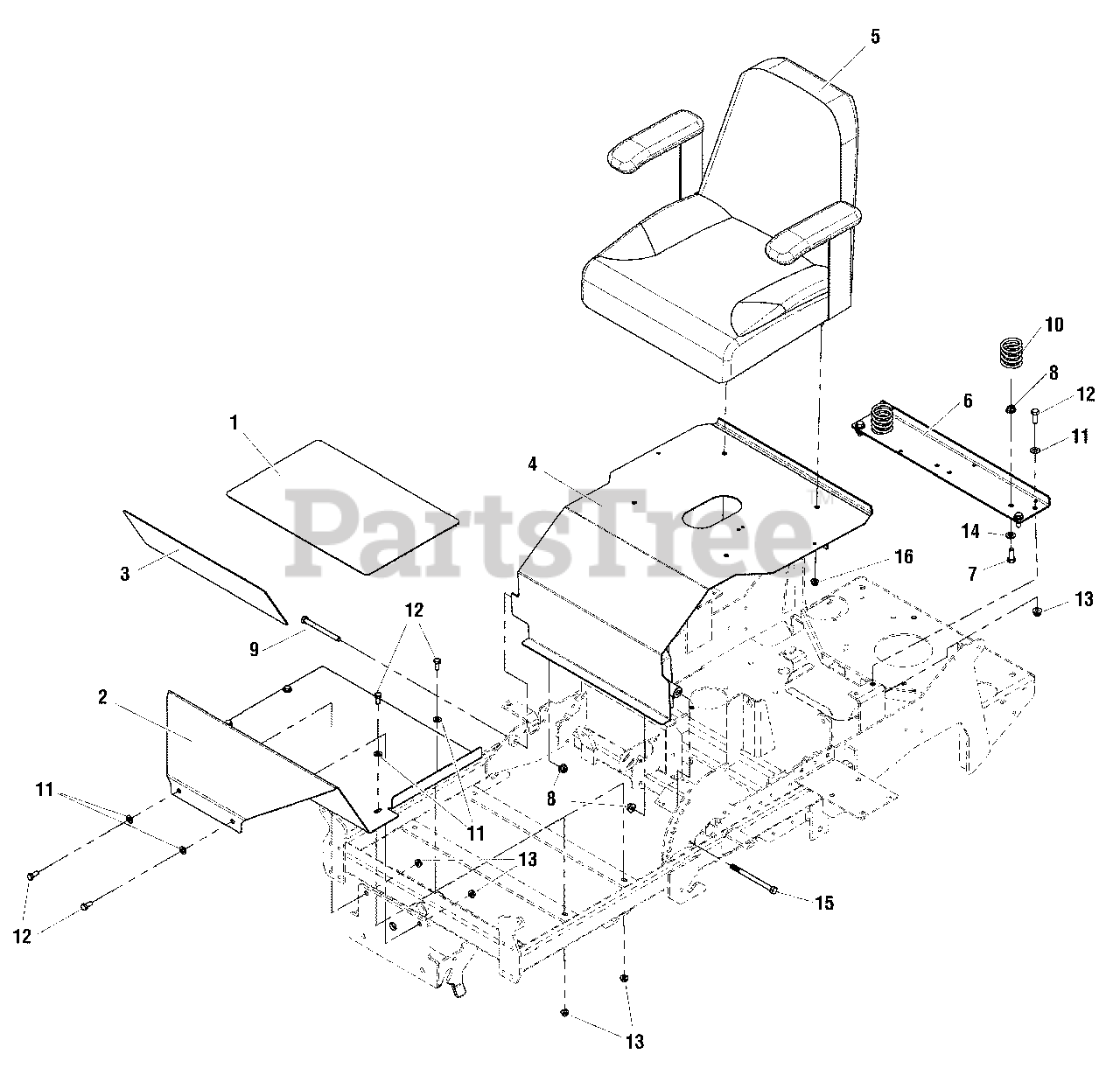

2050 (2690451) - Simplicity Champion 50" Zero-Turn Mower, 20hp Seat & Kickplate Group - Kohler & B&S Vanguard Parts Diagram

Champion 50" Zero-Turn Mower, 20hp

Seat & Kickplate Group - Kohler & B&S Vanguard Parts Diagram

  • Title

1

Simplicity 5049978SM

SAFETY WALK, 11.50 X 17.38

$

$

Not available

2

Simplicity 5401027CSM

PLATE, FLOOR DETAIL

$200.99

$

Usually ships in 2-12 days

0

3

Simplicity 5049979SM

SAFETY WALK, 17.38 X 6.00
(Superseded to 5101007SM)

$32.99

$

Usually ships in 2-12 days

0

4

Simplicity 5400528CSM

WELD, SEAT PLATE - ORG

$376.99

$

Usually ships in 2-12 days

0

5

Simplicity 5061599SM

SEAT, XB-180, NO LOGO, BLACK

$744.99

$

Usually ships in 2-12 days

0

6

Simplicity 5400361CSM

MOUNT, OIL FILTER - ORG

$43.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025013X8SM

BOLT, 3/8-16 X 1" GD5 YZ

$3.99

$

In Stock, only 1 left!

0

8

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

9

Simplicity 5025013X32SM

BOLT, 3/8-16 X 4" GD5 YZ

$3.99

$

In Stock, Qty 11

0

10

Simplicity 7078299SM

SPRING, SEAT SUPPORT

$14.99

$

Usually ships in 2-12 days

0

11

Simplicity 5025292SM

WASHER, 5/16" GD.9 FLAT

$3.99

$

In Stock, Qty 17

0

12

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1" GD5 YZ
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

13

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 5025156SM

WASHER, 3/8" SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

15

Simplicity 5025013X40SM

BOLT, 3/8-16 X 5" GD5 YZ

$4.49

$

Usually ships in 2-12 days

0

16

Simplicity 5025057SM

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

17

Simplicity 5100652SM

SPRING, EXTENSION, SEAT ADJUSTMENT (BLK OR SLVR)

Note: (SV)(Not an illustrated part.) (3-1/2" Total unstretched length)

$10.99

$

Usually ships in 2-12 days

0
