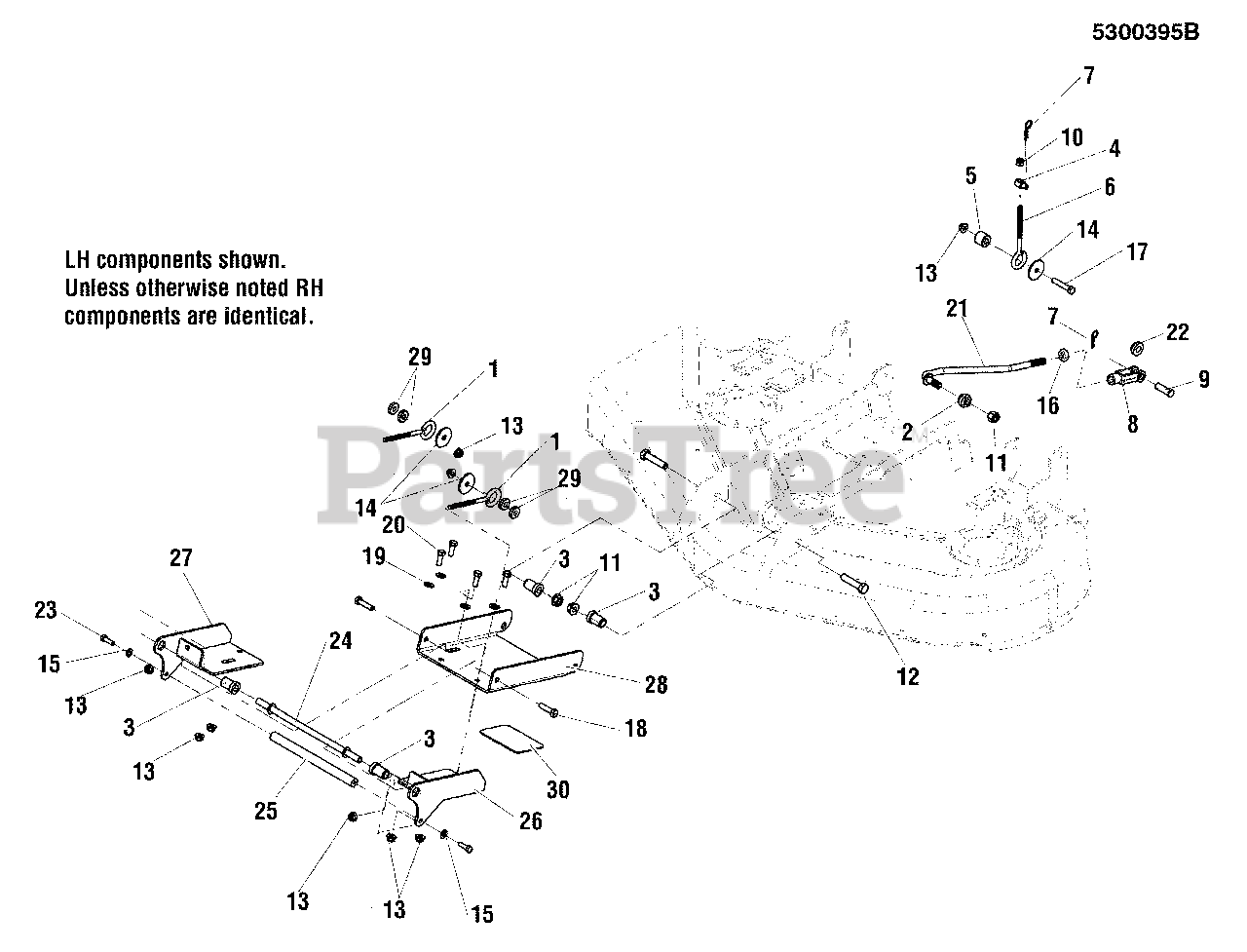

2050 (2690451) - Simplicity Champion 50" Zero-Turn Mower, 20hp 44", 50" & 52" Mower Deck - Deck Hangers & Puller Bars Parts Diagram

Champion 50" Zero-Turn Mower, 20hp

44", 50" & 52" Mower Deck - Deck Hangers & Puller Bars Parts Diagram

  • Title

1

Simplicity 5023497SM

EYE BOLT, 3/8-16 X 5, 1 EYE

$9.49

$

In Stock, only 1 left!

0

2

Simplicity 5100351SM

BUSHING, REAR QUICK TACH, CZ

$5.99

$

In Stock, only 2 left!

0

3

Simplicity 5100144SM

SPACER, .53 X 1.00 X 1.44, CZ

$6.99

$

Usually ships in 2-12 days

0

4

Simplicity 5045947SM

ADJUSTER, BRAKE LINKAGE

$26.99

$

Usually ships in 2-12 days

0

5

Simplicity 1667812SM

SPACER-0.390ID 0.90 OD 0.70LG P'MTL

$5.99

$

In Stock, Qty 16

0

6

Simplicity 5021812SM

EYE BOLT, 3/8-16 X 6, 3.0 THREAD

$5.99

$

In Stock, Qty 18

0

7

Simplicity 5025210YP

PIN, HAIR, .0915 X 1-7/8

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 5023174SM

CLEVIS, 1/2-20, STEEL, CLEAR ZINC

$16.99

$

Usually ships in 2-12 days

0

9

Simplicity 5025328X12SM

PIN, CLEVIS, 1/2 X 1 1/2, YZP

$4.99

$

In Stock, only 2 left!

0

10

Simplicity 5025096SM

NUT, 3/8-16 HEX NYLON LOCK

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 5025098SM

NUT, 1/2-20 HEX NYLON LOCK

$5.99

$

In Stock, only 2 left!

0

12

Simplicity 5025018X18SM

BOLT, 1/2-20 X 2-1/4 GD8 YZ

$3.99

$

Usually ships in 2-12 days

0

13

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

14

Simplicity 5025305SM

WASHER, .41 X 1.75 X .14

$3.99

$

In Stock, only 2 left!

0

15

Simplicity 5025170SM

WASHER, 5/16 LOCK YZ

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 5025089SM

NUT, 1/2-20 HEX JAM

$3.99

$

In Stock, Qty 19

0

17

Simplicity 5025013X14SM

BOLT, 3/8-16 X 1-3/4 GD5

$3.99

$

In Stock, only 2 left!

0

18

Simplicity 5025013X10SM

BOLT, 3/8-16 X 1-1/4 GD5

$3.99

$

In Stock, Qty 12

0

19

Simplicity 5025156SM

WASHER, 3/8 SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

20

Simplicity 5025013X8SM

BOLT, 3/8-16 X 1 GD5 YZ

$3.99

$

In Stock, Qty 5

0

21

Simplicity 5100170SM

ROD, DECK LIFT LINKAGE

$31.99

$

Usually ships in 2-12 days

0

22

Simplicity 5048258SM

BUSHING, DECK SUPPORT

$11.99

$

In Stock, only 2 left!

0

23

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

24

Simplicity 5100177SM

SHAFT, HANGER

$8.99

$

Usually ships in 2-12 days

0

25

Simplicity 5100135SM

SHAFT, HANDLE, DECK MOUNT

$32.99

$

Usually ships in 2-12 days

0

26

Simplicity 5400391CSM

WELD, DECK HANGER, LH - ORG

$33.99

$

Usually ships in 2-12 days

0

27

Simplicity 5400392CSM

WELD, DECK HANGER, RH - ORG

$48.99

$

Usually ships in 2-12 days

0

28

Simplicity 5400382CSM

PLATE, DECK HANGER SUPPORT - ORG

$90.99

$

Usually ships in 2-12 days

0

29

Simplicity 5044960SM

SPACER, .39 X 1.00 X .25

$5.49

$

In Stock, Qty 7

0

30

Simplicity 5101008SM

SAFETY WALK, 4.50 X 3.50

$7.49

$

Usually ships in 2-12 days

0
