20494 (SR-21 S) - Toro 21" Super Recycler Walk-Behind Mower (SN: 089000001 - 089999999) (1998) REAR AXLE ASSEMBLY Parts Diagram

21" Super Recycler Walk-Behind Mower

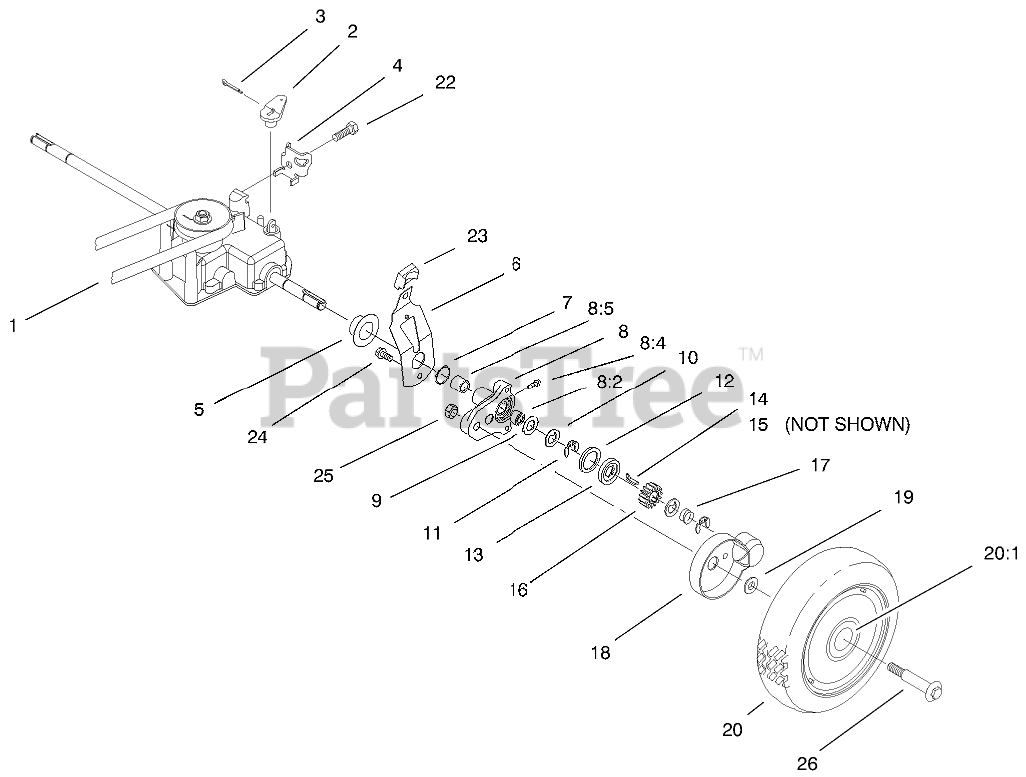

REAR AXLE ASSEMBLY Parts Diagram

  • Title
1

Toro 62-3900

V-BELT E

$25.99

$

In Stock, only 1 left!

0

2

Toro 60-8821

LEVER-SHIFT

$11.99

$

Usually ships in 3-6 days

0

3

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

4

Toro 82-8780

CLAMP-CABLE

$14.99

$

Usually ships in 3-6 days

0

5

Toro 42-3520

CAP-END
(Superseded to 138-3235)

$3.99

$

In Stock, only 2 left!

0

6

Toro 63-8721

SPRING ARM ASM

$21.99

$

In Stock, only 2 left!

0

7

Toro 237-153

O-RING

$4.49

$

Usually ships in 3-6 days

0

8

Toro 63-8701

PIVOT ARM ASM

$51.99

$

Usually ships in 3-6 days

0

8:2

Toro 48-2060

BEARING-ROLLER
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 16

0

8:4

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, only 1 left!

0

8:5

Toro 70-9760

BUSHING

$4.99

$

In Stock, Qty 6

0

9

Toro 65-4730

WASHER-ARM, PIVOT

$2.49

$

In Stock, only 3 left!

0

10

Toro 65-4740

WASHER-THRUST, KEYED

$2.49

$

In Stock, only 2 left!

0

11

Toro 65-2720

RING-CLIP, LOCKING

$1.49

$

In Stock, Qty 6

0

12

Toro 65-4710

RING-FRICTION

$3.49

$

In Stock, Qty 5

0

13

Toro 65-4760

WASHER-CLUTCH

$1.49

$

In Stock, Qty 20+

0

14

Toro 66-6050

KEY-ROCKING, LH
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 8

0

15

Toro 66-6040

KEY-ROCKING, RH
(Superseded to 139-6643)

$7.49

$

In Stock, Qty 12

0

16

Toro 65-4750

GEAR-PINION

$11.99

$

In Stock, Qty 18

0

17

Toro 65-4720

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 20+

0

18

Toro 74-1660

COVER-WHEEL

$8.49

$

In Stock, only 3 left!

0

19

Toro 74-1671

SPACER-COVER, WHEEL

$1.99

$

In Stock, Qty 12

0

20

Toro 16-0029

WHEEL AND TIRE ASM (W/GEAR)

$47.99

$

In Stock, Qty 5

0

20:1

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 8

0

22

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

23

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

24

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

25

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

26

Toro 27-6232

BOLT-WHEEL
(Superseded to 114-3468)

$5.49

$

In Stock, Qty 20+

0
