20493 (SR-21 P) - Toro 21" Super Recycler Walk-Behind Mower (SN: 089000001 - 089999999) (1998) ENGINE BRIGGS & STRATTON MODEL 12H802-1758-E1 Parts Diagram

21" Super Recycler Walk-Behind Mower

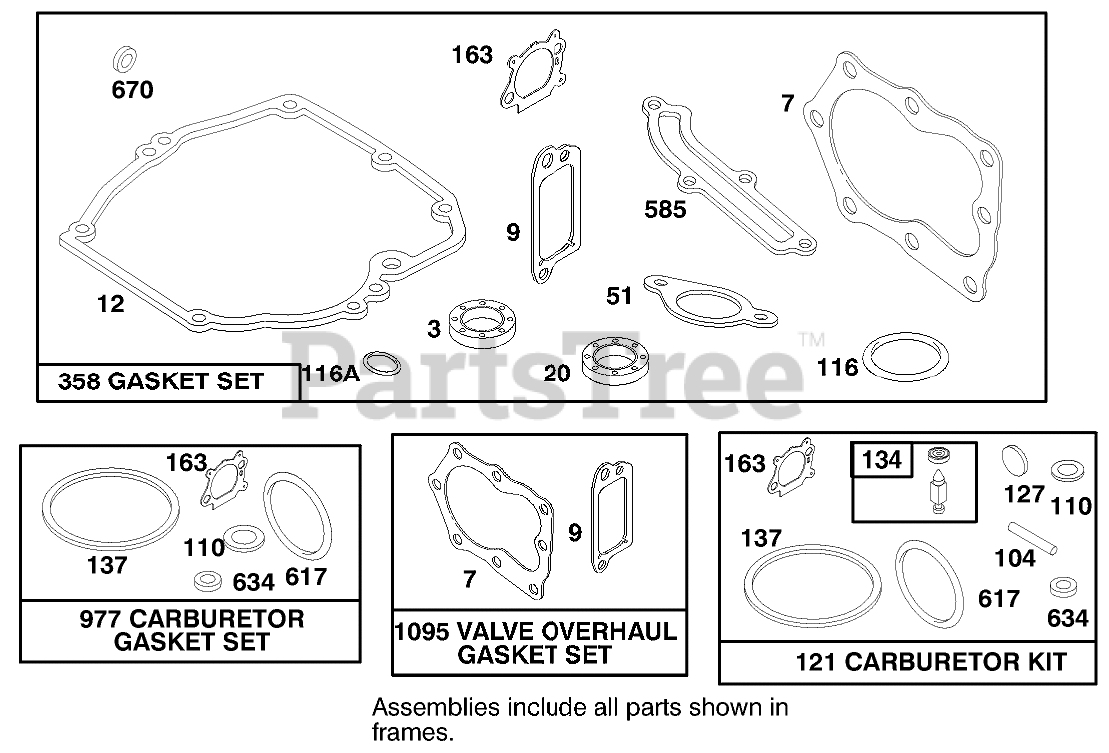

ENGINE BRIGGS & STRATTON MODEL 12H802-1758-E1 Parts Diagram

  • Title

3

Briggs & Stratton 299819

Seal-Oil
(Superseded to 299819S)

Note: Included in Gasket Set-Part No. 497316.

$5.49

$

In Stock, Qty 17

0

7

Briggs & Stratton 272916

Gasket-Cylinder Hd
(Superseded to 692249)

Note: Included in Gasket Set-Part No. 497316.

$8.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 272916

Gasket-Cylinder Hd
(Superseded to 692249)

Note: Included in Valve Overhaul Gasket Set-Part No. 498528.

$8.49

$

In Stock, Qty 20+

0

9

Briggs & Stratton 272481

Gasket?Breather
(Superseded to 699833)

Note: Included in Valve Overhaul Gasket Set-Part No. 498528.

$5.49

$

In Stock, only 1 left!

0

9

Briggs & Stratton 272481

Gasket?Breather
(Superseded to 699833)

Note: Included in Gasket Set-Part No. 497316.

$5.49

$

In Stock, only 1 left!

0

12

Briggs & Stratton 272198

Gasket
(Superseded to 692232)

Note: Included in Gasket Set-Part No. 497316.

$5.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 399781

Seal-Oil
(Superseded to 399781S)

Note: Included in Gasket Set-Part No. 497316.

$7.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 272199

Gasket-Intake
(Superseded to 272199S)

Note: Included in Gasket Set-Part No. 497316.

$4.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 231371

Spring
(Superseded to 797622)

Note: Included in Carburetor Kit-Part No. 498260.

$3.99

$

In Stock, Qty 10

0

110

Washer-Bowl (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 498260.

$

$

Not available

110

Washer-Bowl (Sold in Kit Only).

Note: Included in Carburetor Gasket Set-Part No. 498261.

$

$

Not available

116

Briggs & Stratton 280393

O-Ring Seal
(Superseded to 691031)

Note: Included in Gasket Set-Part No. 497316.

$5.49

$

In Stock, Qty 20+

0

116A

Briggs & Stratton 280966

O-Ring Seal
(Superseded to 692296)

Note: Included in Gasket Set-Part No. 497316.

$4.99

$

In Stock, only 2 left!

0

121

Briggs & Stratton 498260

Carburetor Overhaul Kit

$16.99

$

In Stock, Qty 20+

0

127

Plug-Welch (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 498260.

$

$

Not available

134

Briggs & Stratton 398188

Needle and Seat Kit

Note: Included in Carburetor Kit-Part No. 498260.

$6.49

$

In Stock, Qty 20+

0

137

Gasket-Bowl (Sold in Kit Only).

Note: Included in Carburetor Gasket Set-Part No. 498261.

$

$

Not available

137

Gasket-Bowl (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 498260.

$

$

Not available

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Gasket Set-Part No. 498261.

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Kit-Part No. 498260.

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Gasket Set-Part No. 497316.

$3.49

$

In Stock, Qty 20+

0

358

Briggs & Stratton 496117

Gasket Set

$40.99

$

Usually ships in 2-12 days

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

Note: Included in Carburetor Kit-Part No. 498260.

$3.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 270344

Seal-O Ring
(Superseded to 270344S)

Note: Included in Carburetor Gasket Set-Part No. 498261.

$3.49

$

In Stock, Qty 20+

0

634

Washer-Foam (Sold in Kit Only).

Note: Included in Carburetor Gasket Set-Part No. 498261.

$

$

Not available

634

Washer-Foam (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 498260.

$

$

Not available

670

Briggs & Stratton 493823

Spacer

Note: Included in Gasket Set-Part No. 497316.

$6.49

$

In Stock, only 1 left!

0

972

Briggs & Stratton 495224

Tank-Fuel
(Superseded to 699374)

$64.99

$

In Stock, Qty 20+

0

977

Briggs & Stratton 498261

Carburetor Gasket Set
(Superseded to 498260)

$16.99

$

In Stock, Qty 20+

0

1095

Briggs & Stratton 498528

Valve Gasket Set

$26.99

$

Usually ships in 2-12 days
