20489 (V-21 S) - Toro 21" Vacu-Power Walk-Behind Mower (SN: 089000001 - 089999999) (1998) ENGINE ASSEMBLY Parts Diagram

21" Vacu-Power Walk-Behind Mower

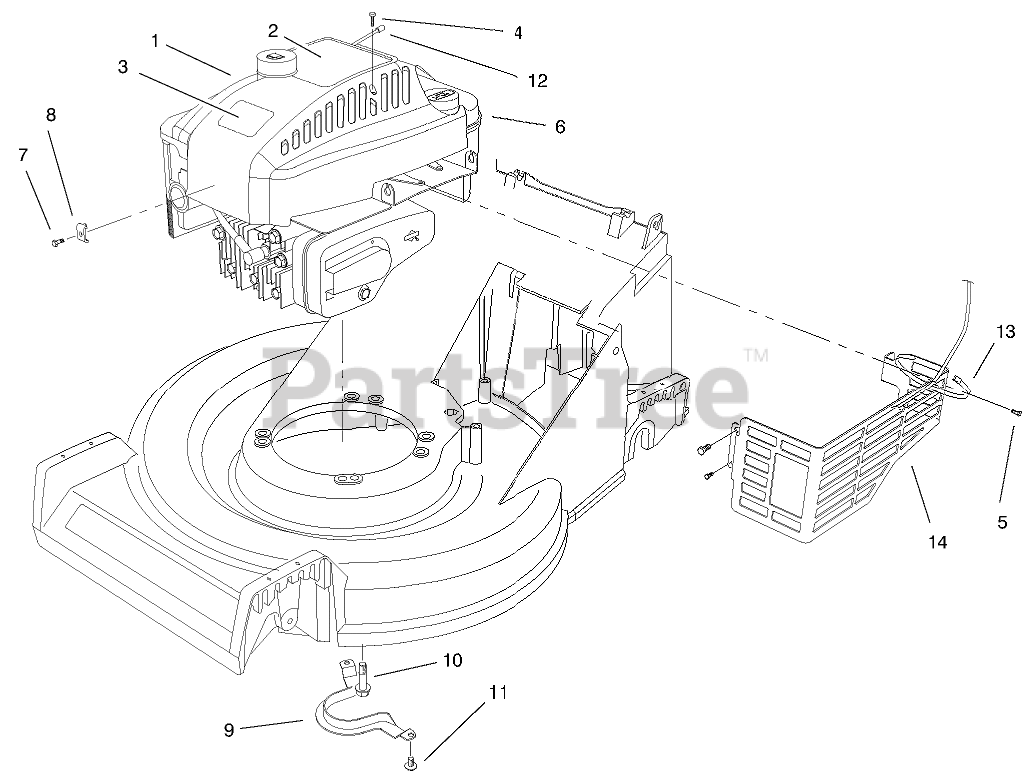

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 93-0243

SHROUD-ENGINE

$59.99

$

Usually ships in 3-6 days

0

2

Toro 95-1671

DECAL - RECOIL

$6.99

$

Usually ships in 3-6 days

0

3

Toro 98-3206

Decal

$2.49

$

Usually ships in 3-6 days

0

4

Toro 32144-121

SCREW-PPH
(Superseded to 32144-88)

$1.99

$

In Stock, only 2 left!

0

5

Toro 32144-73

SCREW-HWH
(Superseded to 104-2065)

$0.99

$

In Stock, Qty 20+

0

6

Engine-Quantum 6.0 Hp

$

$

Not available

7

Toro 93-8470

SCREW-CLAMP

$

$

Not available

8

Toro 2210-249

CLAMP-CASING

$3.49

$

Usually ships in 3-6 days

0

9

Toro 66-0570

Guide-Belt
(Superseded to 66-0570-03)

$13.99

$

In Stock, only 2 left!

0

10

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

11

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

12

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

13

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

14

Toro 82-8550

SHIELD-MUFFLER
(Superseded to 104-7577-03)

$26.99

$

Usually ships in 3-6 days

0
