20487 (SR-21 OSBB) - Toro 21" Super Recycler Walk-Behind Mower (SN: 210000001 - 210999999) (2001) CARBURETOR ASSEMBLY Parts Diagram

21" Super Recycler Walk-Behind Mower

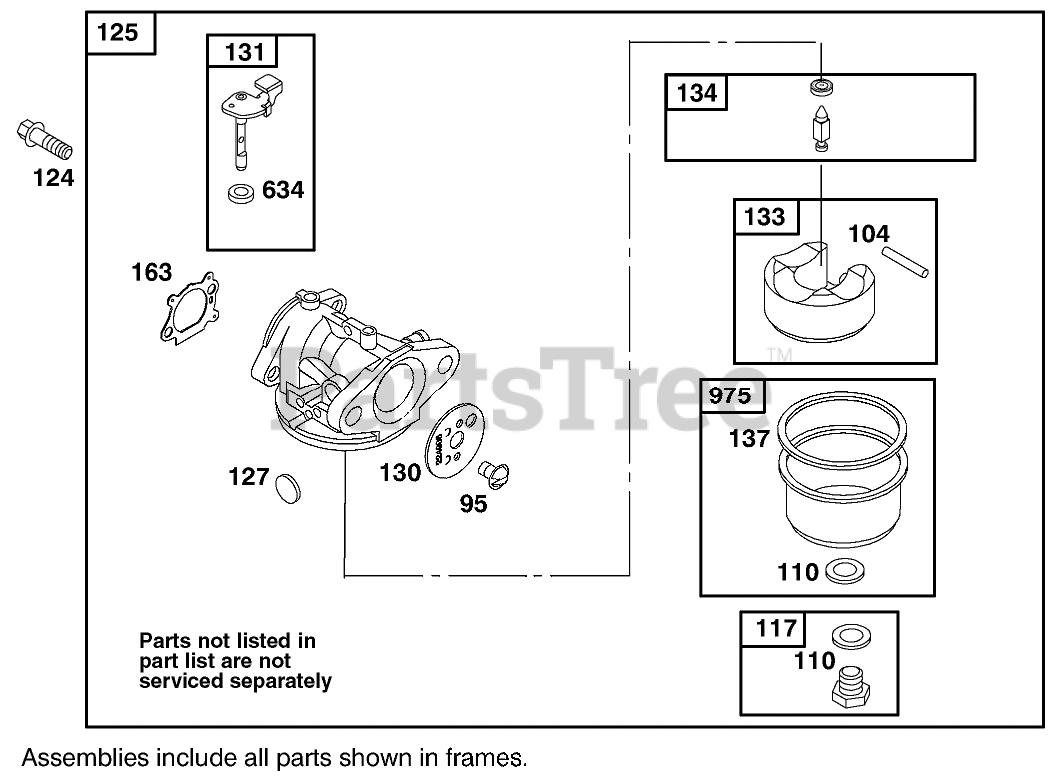

CARBURETOR ASSEMBLY Parts Diagram

  • Title

Toro 99-1041

JET-MAIN, HIGH ALTITUDE

Note: Not illustrated

$20.99

$

Usually ships in 3-6 days

0

95

Toro 99-0969

SCREW-SPH

$8.49

$

Usually ships in 3-6 days

0

104

Toro 99-0970

PIN-HINGE, FLOAT

Note: Included in Carburetor Kit 100-5036

$

$

Not available

117

Toro 99-0971

JET-MAIN

$

$

Not available

124

Toro 99-0972

SCREW-SHOULDER

$

$

Not available

125

Toro 99-0973

CARBURETOR

$

$

Not available

130

Toro 99-0974

VALVE-THROTTLE

$11.99

$

Usually ships in 3-6 days

0

131

Toro 99-0975

SHAFT-THROTTLE

$32.99

$

Usually ships in 3-6 days

0

133

Toro 77-8170

FLOAT-CARBURETOR

$32.99

$

In Stock, only 1 left!

0

134

Toro 77-8110

VALVE-FLOAT

Note: Included in Carburetor Kit 100-5036

$23.99

$

Usually ships in 3-6 days

0

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Carburetor Kit 100-5036

$4.99

$

In Stock, Qty 6

0

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in valve Overhaul Gasket Set 100-5034

$4.99

$

In Stock, Qty 6

0

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Gasket Set 100-5035

$4.99

$

In Stock, Qty 6

0

975

Toro 99-0977

BOWL-FLOAT

$

$

Not available
