20487 (SR-21 OSBB) - Toro 21" Super Recycler Walk-Behind Mower (SN: 089000001 - 089999999) (1998) HOUSING ASSEMBLY Parts Diagram

21" Super Recycler Walk-Behind Mower

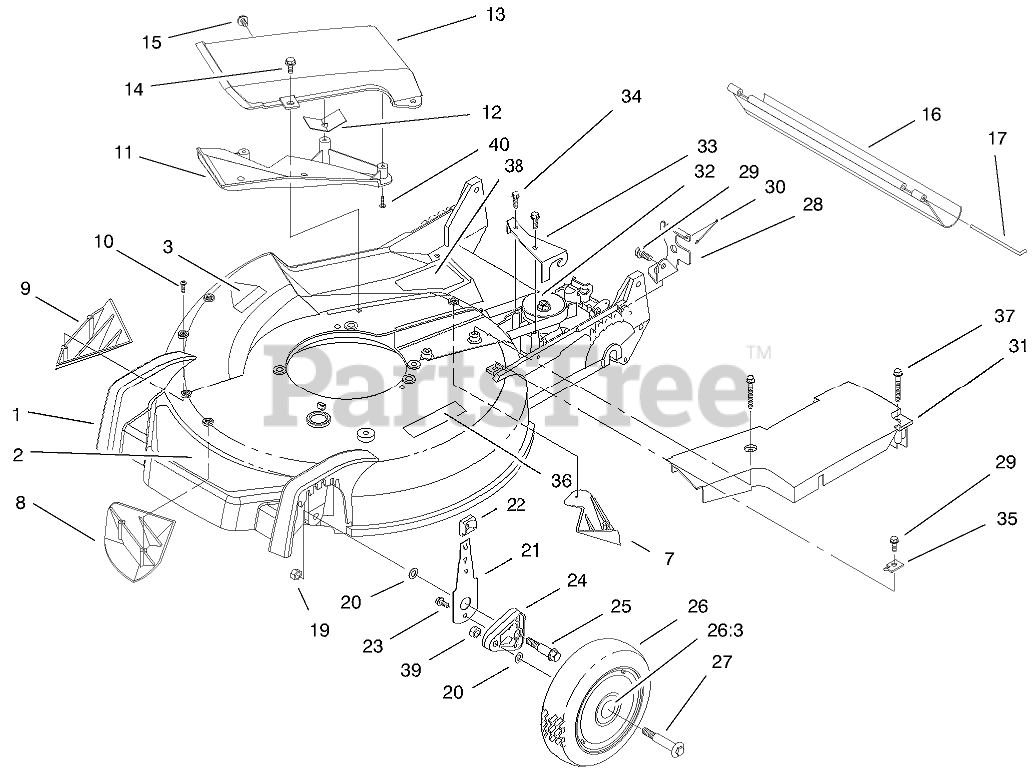

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 98-8702

HOUSING

$

$

Not available

2

Toro 93-3696

DECAL - DECK

$

$

Not available

3

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

7

Toro 92-1750

KICKER-REAR

$21.99

$

In Stock, only 3 left!

0

8

Toro 92-1720

KICKER-FRONT

$23.99

$

In Stock, only 2 left!

0

9

Toro 92-1730

KICKER-RH

$23.99

$

In Stock, only 2 left!

0

10

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

11

Deflector-Recycler

$

$

Not available

12

Guard-Cover

$

$

Not available

13

Toro 17-5179

COVER W/DEFLECTOR

$

$

Not available

14

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

15

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

16

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$28.99

$

In Stock, Qty 8

0

17

Toro 33-3208

ROD-SHIELD

$15.99

$

In Stock, Qty 12

0

19

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

20

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

21

Toro 66-0541

FRONT SPRING ARM ASM

$18.99

$

In Stock, Qty 6

0

22

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

23

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

24

Toro 66-0580

ARM-PIVOT, FRONT

$18.99

$

In Stock, only 1 left!

0

25

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 16

0

26

Toro 98-7130

WHEEL ASM

$25.99

$

In Stock, only 2 left!

0

26:3

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 9

0

27

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 9

0

28

Toro 82-5680

Bracket-Adj. Trac
(Superseded to 82-5680-03)

$14.99

$

Usually ships in 3-6 days

0

29

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

30

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 2 left!

0

31

Toro 98-1502

COVER-BELT

$

$

Not available

32

Toro 62-6673

GEARCASE ASM

$876.99

$

Usually ships in 3-6 days

0

33

Toro 62-4320

Bracket-Guide
(Superseded to 62-4320-03)

$

$

Not available

34

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

35

Toro 62-3720

CLAMP-CABLE

$2.99

$

In Stock, only 3 left!

0

36

Toro 93-0248

DECAL-WARNING
(Superseded to 104-8589)

$7.49

$

Usually ships in 3-6 days

0

37

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, only 2 left!

0

38

Toro 82-8450

DECAL - DANGER

$

$

Not available

39

$2.99

$

Usually ships in 3-6 days

0

40

Screw-PPH

$

$

Not available
