20482 - Toro Super Recycler Walk-Behind Mower (SN: 079000001 - 079999999) (1997) HOUSING ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

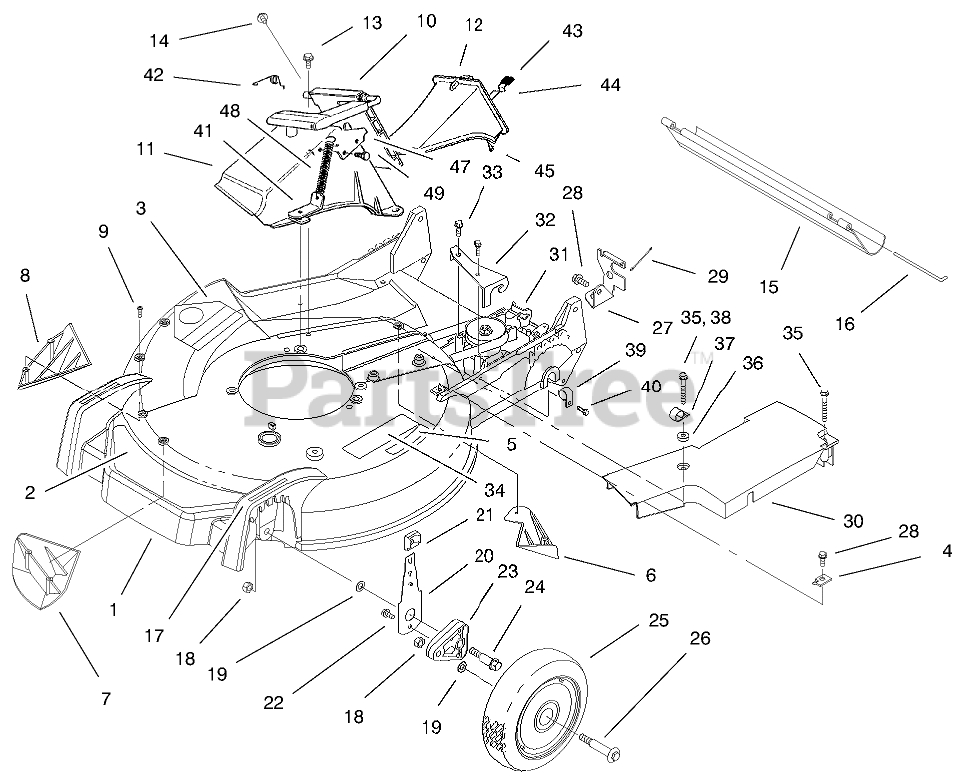

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 16-9589

Housing-21" (Incl. Ref. #1, 3, 5-9, & 17 pg. 1)(Incl. Ref. # 34, pg. 2)(Incl. Ref. #17 & 18, pg. 3)
(Superseded to 98-8702)

$

$

Not available

2

Toro 93-3696

DECAL - DECK

$

$

Not available

3

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

4

Toro 62-3720

CLAMP-CABLE

$2.99

$

In Stock, only 3 left!

0

5

Toro 46-7370

STEP PAD DECAL

$27.99

$

Usually ships in 3-6 days

0

6

Toro 92-1750

KICKER-REAR

$21.99

$

In Stock, only 3 left!

0

7

Toro 92-1720

KICKER-FRONT

$23.99

$

In Stock, only 2 left!

0

8

Toro 92-1730

KICKER-RH

$23.99

$

In Stock, only 2 left!

0

9

Toro 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

10

Toro 93-7351

DISCHARGE DOOR ASM

$116.99

$

In Stock, only 1 left!

0

11

Toro 82-9152

TUNNEL-DISCHARGE

$160.99

$

Usually ships in 3-6 days

0

12

Toro 77-0500

Plug-Discharge (Incl. Ref. #43-45)

$75.99

$

Usually ships in 3-6 days

0

13

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

14

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

15

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$28.99

$

In Stock, Qty 8

0

16

Toro 33-3208

ROD-SHIELD

$15.99

$

In Stock, Qty 12

0

17

Toro 92-2279

DECAL - HOC

$

$

Not available

18

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

19

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

20

Toro 66-0541

FRONT SPRING ARM ASM

$18.99

$

In Stock, Qty 6

0

21

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

22

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

23

Toro 66-0580-03

ARM-PIVOT, FRONT
(Superseded to 66-0580)

$18.99

$

In Stock, only 1 left!

0

24

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 16

0

25

Toro 14-9989

WHEEL AND TIRE ASM

$47.99

$

In Stock, only 2 left!

0

26

Toro 27-6232

BOLT-WHEEL
(Superseded to 114-3468)

$5.49

$

In Stock, Qty 20+

0

27

Toro 82-5680

Bracket-Adj. Trac
(Superseded to 82-5680-03)

$14.99

$

Usually ships in 3-6 days

0

28

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

29

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 2 left!

0

30

Toro 82-9910

BELT COVER

$

$

Not available

31

Toro 62-6673

GEARCASE ASM

$876.99

$

Usually ships in 3-6 days

0

32

Toro 62-4320

Bracket-Guide
(Superseded to 62-4320-03)

$

$

Not available

33

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

34

Toro 93-0248

DECAL-WARNING
(Superseded to 104-8589)

$7.49

$

Usually ships in 3-6 days

0

35

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, only 2 left!

0

36

Toro 3-5792

WASHER

$6.99

$

Usually ships in 3-6 days

0

37

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

38

Toro 37-7262

SCREW-SPECIAL

$3.49

$

Usually ships in 3-6 days

0

39

Toro 2412-83

CLAMP-CABLE

$

$

Not available

40

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

41

Toro 71-9350

BRACKET-SPRING

$14.99

$

Usually ships in 3-6 days

0

42

Toro 80-3770

RETAINER-DOOR

$6.99

$

In Stock, only 2 left!

0

43

Toro 76-4650

GRIP-LATCH

$5.99

$

Usually ships in 3-6 days

0

44

Toro 76-4640

LATCH-PLUG, DISCHARGE

$22.99

$

Usually ships in 3-6 days

0

45

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

47

Toro 93-3154

LATCH-PLATE

$5.99

$

In Stock, Qty 5

0

48

Toro 76-4660

SPRING-DOOR

$11.99

$

In Stock, Qty 5

0

49

Toro 46-8090

SCREW-PLASTITE

$

$

Not available
