20482 - Toro Super Recycler Walk-Behind Mower (SN: 079000001 - 079999999) (1997) ENGINE ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

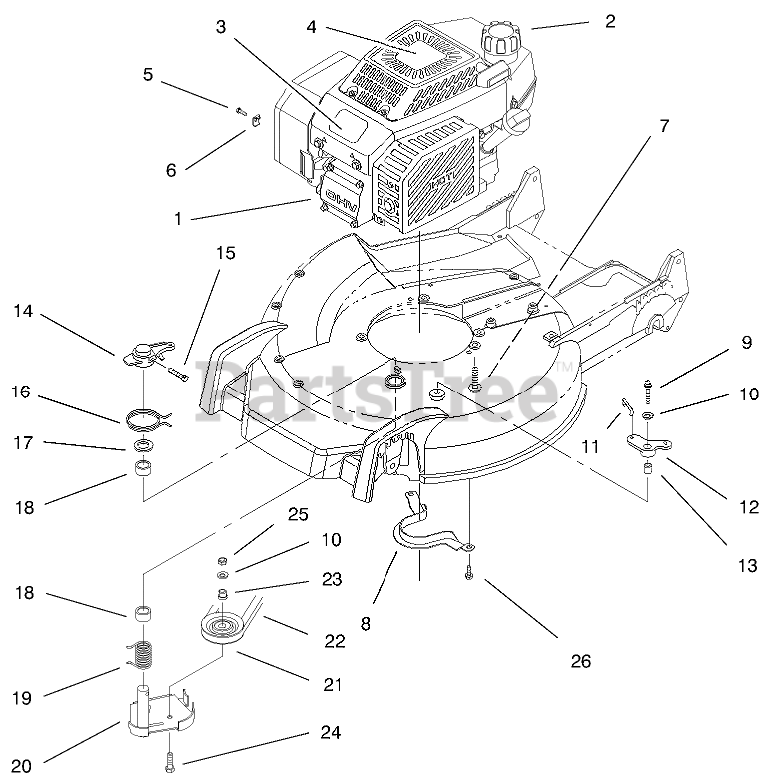

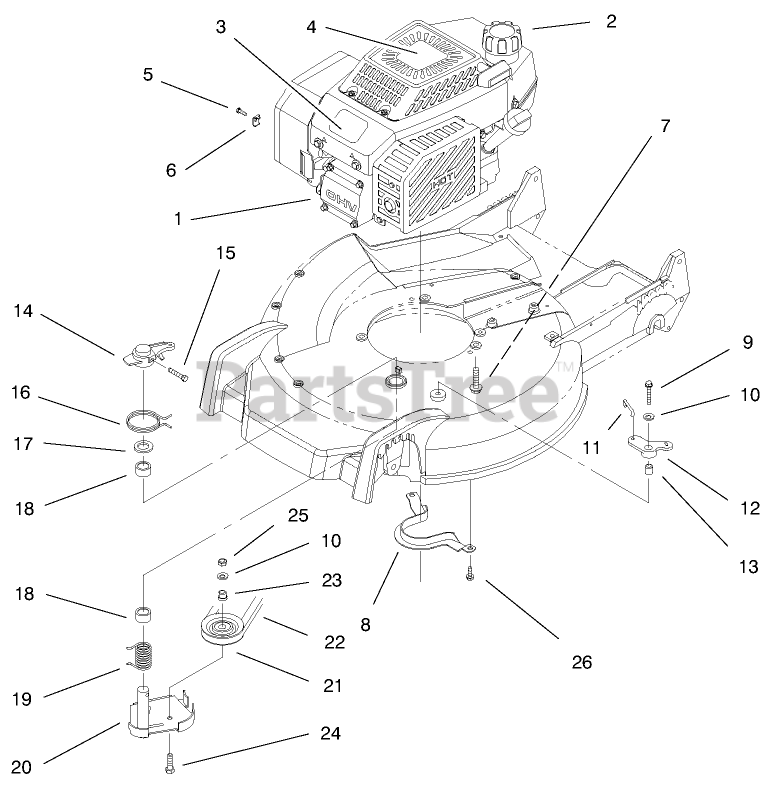

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 94-1605

Engine-GTS 150 (Incl. Ref. #2-4)(Model No. 20482 Only)
(Superseded to 77-9280)

$1086.99

$

In Stock, only 1 left!

0

1

Toro 94-1606

Engine-GTS 150 (Incl. Ref. #2-4)(Model No. 20483 Only)
(Superseded to 77-9280)

$1086.99

$

In Stock, only 1 left!

0

2

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 11

0

3

Toro 92-2289

PLATE-LOGO
(Superseded to 98-3206)

$2.49

$

In Stock, only 2 left!

0

4

Toro 94-6060

DECAL - RECOIL

$

$

Not available

5

Toro 86-7990

CLAMP SCREW F/W ENGINE

$3.49

$

Usually ships in 3-6 days

0

6

Toro 2210-249

CLAMP-CASING

$3.49

$

Usually ships in 3-6 days

0

7

Toro 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

8

Toro 66-0570

Guide-Belt
(Superseded to 66-0570-03)

$13.99

$

In Stock, only 2 left!

0

9

Toro 32104-107

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

11

Toro 49-2810

LINK-CONTROL

$3.49

$

In Stock, only 1 left!

0

12

Toro 49-7960

BELLCRANK

$12.99

$

In Stock, only 2 left!

0

13

Toro 49-7950

SLEEVE-BELLCRANK

$5.49

$

Usually ships in 3-6 days

0

14

Toro 49-2820

LEVER

$12.99

$

In Stock, only 1 left!

0

15

Toro 32104-96

SCREW-HH

$6.49

$

In Stock, Qty 5

0

16

Toro 49-7970

SPRING-TORSION

$15.99

$

Usually ships in 3-6 days

0

17

Toro 70-1160

WASHER

$3.99

$

Usually ships in 3-6 days

0

18

Toro 68-9780

BEARING

$25.99

$

Usually ships in 3-6 days

0

19

Toro 46-5670

SPRING-TORSION

$11.99

$

Usually ships in 3-6 days

0

20

Toro 94-1601

BRAKE ASM

$

$

Not available

21

Toro 46-5650

PULLEY-IDLER
(Superseded to 117-5299)

$42.99

$

In Stock, only 2 left!

0

22

Toro 42-0884

V-BELT

$19.99

$

In Stock, Qty 7

0

23

Toro 46-5630

HUB-PULLEY, IDLER

$19.99

$

In Stock, only 2 left!

0

24

Toro 322-16

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

25

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

26

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

Toro 77-9280

BBC SHORT BLOCK

Note: Not illustrated

$1086.99

$

In Stock, only 1 left!

0
