20481 - Toro Super Recycler Walk-Behind Mower (SN: 079000001 - 079999999) (1997) HANDLE ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

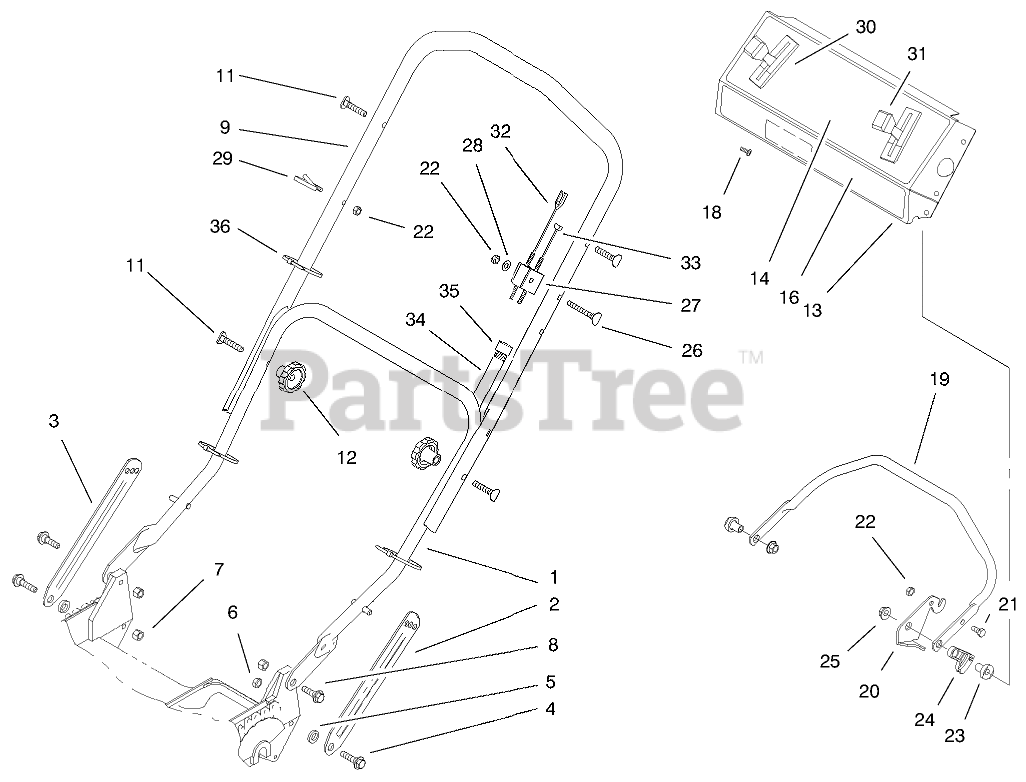

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 43-1362

ASM-Handle
(Superseded to 43-1362-03)

$

$

Not available

2

Toro 84-8361

Latch-Handle
(Superseded to 100-3298-03)

$19.99

$

In Stock, only 2 left!

0

3

Toro 84-8401

Latch-Handle
(Superseded to 100-3297-03)

$9.49

$

In Stock, Qty 5

0

4

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

5

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

6

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

7

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

8

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, Qty 11

0

9

Toro 94-4922

HANDLE - DIPPED

$175.99

$

Usually ships in 3-6 days

0

11

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 20+

0

12

$17.99

$

In Stock, only 2 left!

0

13

Toro 16-9479

Panel-Control (Incl. Ref. #14)

$

$

Not available

14

Toro 93-7166

DECAL - INSTRUCTION

$

$

Not available

16

Toro 93-3697

DECAL - CONSOLE

$

$

Not available

18

Toro 92-9665

SCREW-TAP

$6.99

$

In Stock, Qty 20+

0

19

Toro 52-7430

Bar-Control
(Superseded to 52-7430-03)

$

$

Not available

20

Toro 66-5351

Lever-Control
(Superseded to 66-5351-03)

$11.99

$

Usually ships in 3-6 days

0

21

Toro 321-39

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

22

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 6

0

23

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

24

Toro 46-5520

LEVER-TRACTION

$

$

Not available

25

Toro 3296-74

NUT-LOCK NI
(Superseded to 3296-72)

$2.99

$

In Stock, Qty 20+

0

26

Toro 92-2269

SCREW-HANDLE

$6.49

$

Usually ships in 3-6 days

0

27

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 1 left!

0

28

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 20+

0

30

Toro 76-2712

CONTROL-SPEED, GROUND

$49.99

$

In Stock, only 4 left!

0

31

Toro 71-8391

THROTTLE CONTROL

$111.99

$

Usually ships in 3-6 days

0

32

Toro 76-4331

BRAKE CONTROL

$95.99

$

Usually ships in 3-6 days

0

33

Toro 46-5481

CABLE-TRACTION

$65.99

$

Usually ships in 3-6 days

0

34

Toro 46-6440

CONTROL CABLE COVER

$

$

Not available

35

Toro 2412-50

FITTING-RING

$9.99

$

Usually ships in 3-6 days

0

36

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
