20480 - Toro Super Recycler Walk-Behind Mower (SN: 079000001 - 079999999) (1997) ENGINE BRIGGS & STRATTON MODEL 12H807-0660-01 Parts Diagram

Super Recycler Walk-Behind Mower

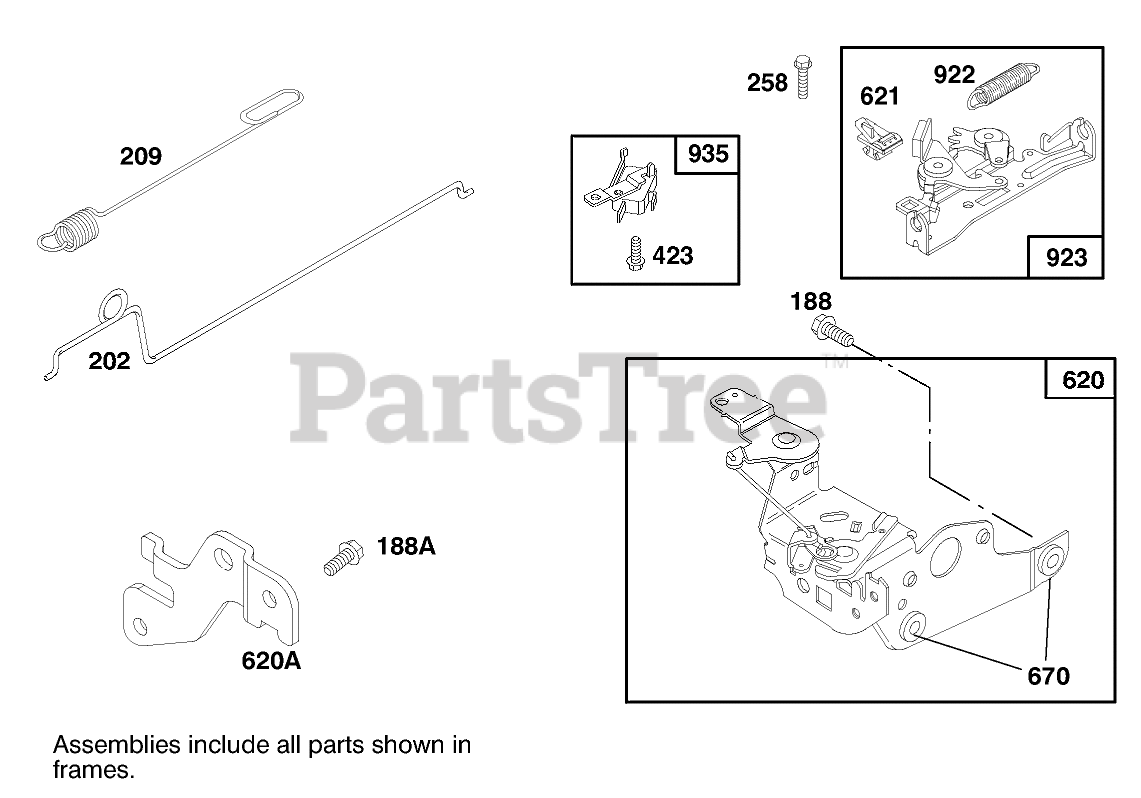

ENGINE BRIGGS & STRATTON MODEL 12H807-0660-01 Parts Diagram

  • Title
188

Briggs & Stratton 94644

Screw-Hex.
(Superseded to 690877)

$3.99

$

In Stock, only 3 left!

0

188A

Briggs & Stratton 94874

Screw-Hex.
(Superseded to 690664)

$5.49

$

In Stock, only 2 left!

0

202

Briggs & Stratton 262579

Link-Govemor
(Superseded to 691829)

$8.49

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 263046

Spring-Governor
(Superseded to 691292)

$8.49

$

Usually ships in 2-12 days

0

258

Briggs & Stratton 94512

Screw-Sem
(Superseded to 691648)

$4.99

$

Usually ships in 2-12 days

0

423

Briggs & Stratton 93758

Screw-Sem
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

620

Briggs & Stratton 497203

Bracket-Carburetor
(Superseded to 790143)

$44.99

$

Usually ships in 2-12 days

0

620A

Briggs & Stratton 225152

"U" Bracket
(Superseded to 691223)

$14.99

$

In Stock, only 1 left!

0

621

Briggs & Stratton 396847

Switch
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

670

Briggs & Stratton 493823

Spacer

Note: Included in Gasket Set-Part No. 497316.

$6.49

$

In Stock, only 1 left!

0

922

Briggs & Stratton 262640

Brake Spring
(Superseded to 691831)

$10.99

$

In Stock, only 2 left!

0

923

Briggs & Stratton 493442

Brake
(Superseded to 796387)

$

$

Not available

935

Briggs & Stratton 398758

Switch?Interlock
(Superseded to 499421)

$31.99

$

Usually ships in 2-12 days

0
