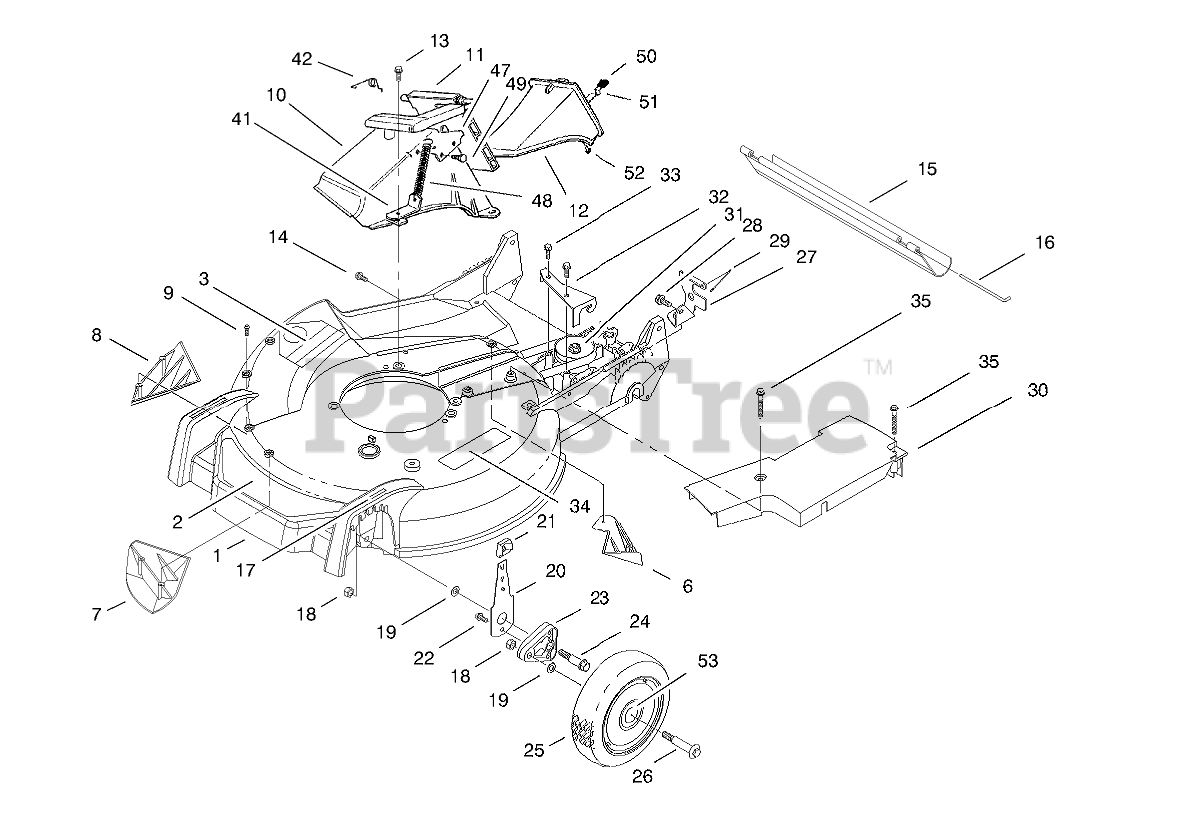

20479 - Toro Super Recycler Walk-Behind Mower (SN: 079000001 - 079999999) (1997) HOUSING ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 16-9489

Housing-Rwd (Incl. Ref. #3, 6-9, 17, & 34)
(Superseded to 105-1307)

$339.99

$

Usually ships in 3-6 days

0

2

Toro 93-3696

DECAL - DECK

$

$

Not available

3

Toro 39-5770

DECAL-DANGER

$7.99

$

In Stock, Qty 8

0

6

Toro 92-1750

KICKER-REAR

$18.99

$

In Stock, only 3 left!

0

7

Toro 92-1720

KICKER-FRONT

$19.99

$

In Stock, only 2 left!

0

8

Toro 92-1730

KICKER-RH

$19.99

$

In Stock, only 2 left!

0

9

Toro 32144-111

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

10

Toro 82-9152

TUNNEL-DISCHARGE

$103.99

$

Usually ships in 3-6 days

0

11

Toro 93-7351

DISCHARGE DOOR ASM

$112.99

$

In Stock, only 1 left!

0

12

Toro 77-0500

DISCHARGE PLUG ASM

$68.99

$

Usually ships in 3-6 days

0

13

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

14

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

15

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$27.99

$

In Stock, Qty 8

0

16

Toro 33-3208

ROD-SHIELD

$14.99

$

In Stock, Qty 12

0

17

Toro 92-2279

DECAL - HOC

$

$

Not available

18

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

19

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

20

Toro 66-0541

FRONT SPRING ARM ASM

$15.99

$

In Stock, Qty 6

0

21

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

22

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

23

Toro 66-0580-03

ARM-PIVOT, FRONT
(Superseded to 66-0580)

$18.99

$

In Stock, only 1 left!

0

24

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 16

0

25

Toro 14-9989

ASM-Wheel & Tire (Incl. Ref. #53)

$42.99

$

In Stock, only 2 left!

0

26

Toro 27-6232

BOLT-WHEEL
(Superseded to 114-3468)

$5.49

$

In Stock, Qty 20+

0

27

Toro 82-5680

Bracket-Adj. Trac
(Superseded to 82-5680-03)

$11.99

$

Usually ships in 3-6 days

0

28

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

29

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 2 left!

0

30

Toro 93-4188

COVER - BELT

$44.99

$

Usually ships in 3-6 days

0

31

Toro 62-6673

GEARCASE ASM

$753.99

$

Usually ships in 3-6 days

0

32

Toro 62-4320

Bracket-Guide
(Superseded to 62-4320-03)

$26.99

$

Usually ships in 3-6 days

0

33

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

34

Toro 93-0248

DECAL-WARNING
(Superseded to 104-8589)

$5.99

$

Usually ships in 3-6 days

0

35

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, only 2 left!

0

41

Toro 71-9350

BRACKET-SPRING

$14.99

$

Usually ships in 3-6 days

0

42

Toro 80-3770

RETAINER-DOOR

$2.99

$

In Stock, only 2 left!

0

47

Toro 93-3154

LATCH-PLATE

$5.49

$

In Stock, Qty 5

0

48

Toro 76-4660

SPRING-DOOR

$10.99

$

In Stock, Qty 5

0

49

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

50

Toro 76-4650

GRIP-LATCH

$5.49

$

Usually ships in 3-6 days

0

51

Toro 76-4640

LATCH-PLUG, DISCHARGE

$7.99

$

Usually ships in 3-6 days

0

52

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

53

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 15

0
