20478 - Toro Super Recycler Walk-Behind Mower (SN: 079000001 - 079999999) (1997) ENGINE BRIGGS & STRATTON MODEL 12H802-1758-A1 Parts Diagram

Super Recycler Walk-Behind Mower

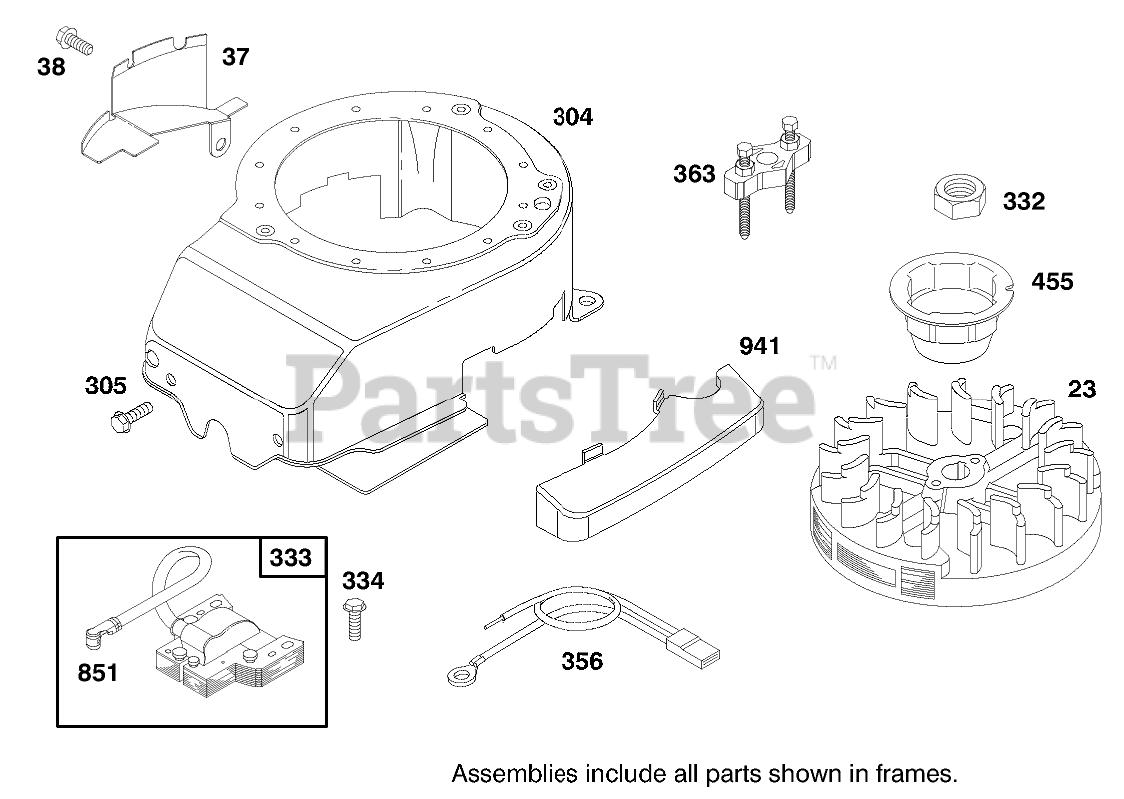

ENGINE BRIGGS & STRATTON MODEL 12H802-1758-A1 Parts Diagram

  • Title

23

Briggs & Stratton 492177

Flywheel
(Superseded to 691987)

$112.99

$

In Stock, only 1 left!

0

37

Briggs & Stratton 224511

Flywheel Guard
(Superseded to 793756)

$10.99

$

In Stock, only 3 left!

0

38

Briggs & Stratton 94786

Screw-Sem
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

304

Briggs & Stratton 493293

Housing-Blower
(Superseded to 795071)

$102.99

$

In Stock, only 2 left!

0

305

Briggs & Stratton 94744

Screw-Hex
(Superseded to 691108)

$3.49

$

In Stock, Qty 20+

0

332

Briggs & Stratton 94877

Nut-Flywheel
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 802574

Armature-Magneto
(Superseded to 590454)

$57.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 94731

Screw-Sem
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 398808

Wire Stop

$11.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19069

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 225121

Cup-Starter
(Superseded to 695161)

$37.99

$

Usually ships in 2-12 days

0

670A

Briggs & Stratton 493823

Spacer

Note: Included in Gasket Set-Part No. 497316

$6.49

$

In Stock, only 1 left!

0

851

Briggs & Stratton 493880

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

941

Briggs & Stratton 281145

Cover-Brake
(Superseded to 795403)

$10.99

$

Usually ships in 2-12 days

0
