20476 - Toro Walk-Behind Mower (SN: 069000001 - 069999999) (1996) BLADE BRAKE CLUTCH ASSEMBLY Parts Diagram

Walk-Behind Mower

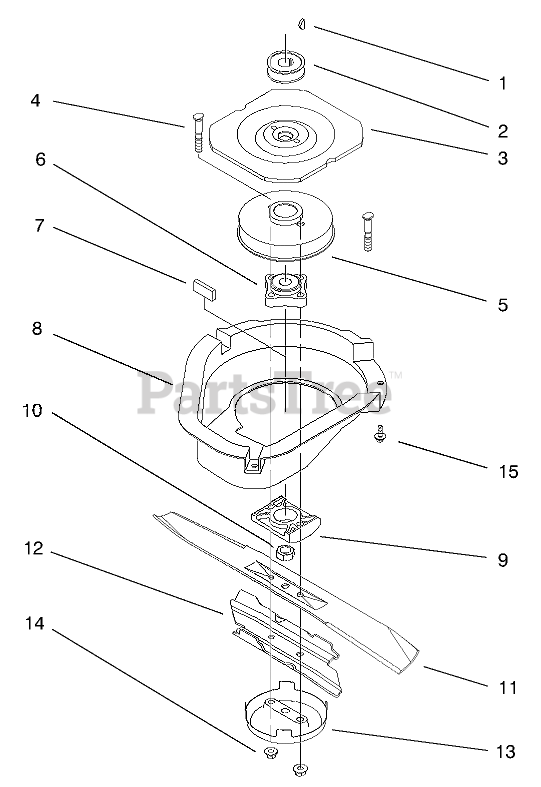

BLADE BRAKE CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Toro 3257-17

KEY-WOODRUFF

$6.49

$

In Stock, only 1 left!

0

2

Toro 62-7560

PULLEY

$46.99

$

In Stock, only 1 left!

0

3

Toro 56-6160

Flywheel
(Superseded to 56-6160-03)

$108.99

$

In Stock, only 2 left!

0

4

Toro 42-3190

BOLT-BLADE

$12.99

$

In Stock, Qty 14

0

5

Toro 56-6170

Drum-Brake
(Superseded to 94-9431)

$50.99

$

In Stock, Qty 9

0

6

Toro 42-6890

HUB ASM

$101.99

$

Usually ships in 3-6 days

0

7

Toro 52-3480

DAMPENER-VIBRATION

$1.49

$

In Stock, Qty 10

0

8

Toro 46-5692

Shield
(Superseded to 46-5693)

$36.99

$

In Stock, only 1 left!

0

9

Toro 93-4126

SPACER - BLADE

$16.99

$

Usually ships in 3-6 days

0

10

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

11

Toro 93-4106

Blade
(Superseded to 133-8183-03)

$22.99

$

In Stock, Qty 20+

0

12

Toro 93-4181

Stiffener-Blade
(Superseded to 93-4181-03)

$

$

Not available

13

Toro 80-2770

CUP-SCALP, ANTI

$17.99

$

Usually ships in 3-6 days

0

14

Toro 54-9190

NUT-LOCK
(Superseded to 127-6852)

$2.99

$

In Stock, Qty 20+

0

15

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0
