20475 - Toro Walk-Behind Mower (SN: 069000001 - 069999999) (1996) ENGINE GTS 150 (MODEL NO. 20475 ONLY) Parts Diagram

Walk-Behind Mower

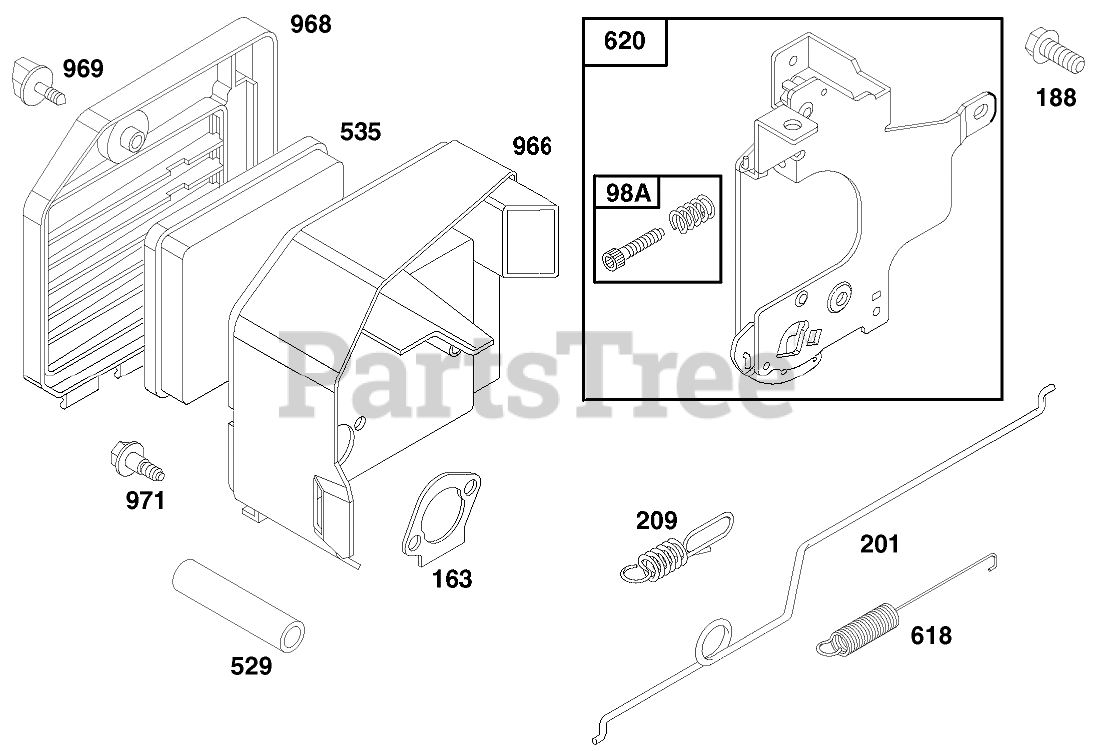

ENGINE GTS 150 (MODEL NO. 20475 ONLY) Parts Diagram

  • Title
98A

Toro 77-8020

SPEED ADJUST. SCREW ASM

$

$

Not available

163

Toro 77-7960

AIR CLEANER GASKET

Note: Included in Gasket Set-Part No. 77-8900

$21.99

$

Usually ships in 3-6 days

0

188

Toro 77-9360

Screw-Cap
(Superseded to 94-1652)

$

$

Not available

201

Toro 77-7980

GOVERNOR LINK

$28.99

$

Usually ships in 3-6 days

0

209

Toro 77-7990

GOVERNOR SPRING

$16.99

$

Usually ships in 3-6 days

0

529

Toro 77-8030

BREATHER TUBE

$

$

Not available

535

Toro 77-7950

FILTER ELEMENT

$20.99

$

In Stock, only 3 left!

0

618

Toro 77-8140

RETURN SPRING

$10.99

$

Usually ships in 3-6 days

0

620

Toro 77-8000

CARBURETOR BRACKET

$

$

Not available

966

Toro 77-7940

AIR CLEANER BASE

$74.99

$

In Stock, only 1 left!

0

968

Toro 77-7040

AIR CLEANER COVER

$

$

Not available

969

Toro 77-7920

AIR CLEANER SCREW

$24.99

$

Usually ships in 3-6 days

0

971

Toro 77-7930

AIR CLEANER SCREW

$8.99

$

Usually ships in 3-6 days

0
