20474 - Toro Guardian Walk-Behind Mower (SN: 005000001 - 005999999) (1975) HANDLE ASSEMBLY MODEL NO. 21711 Parts Diagram

Guardian Walk-Behind Mower

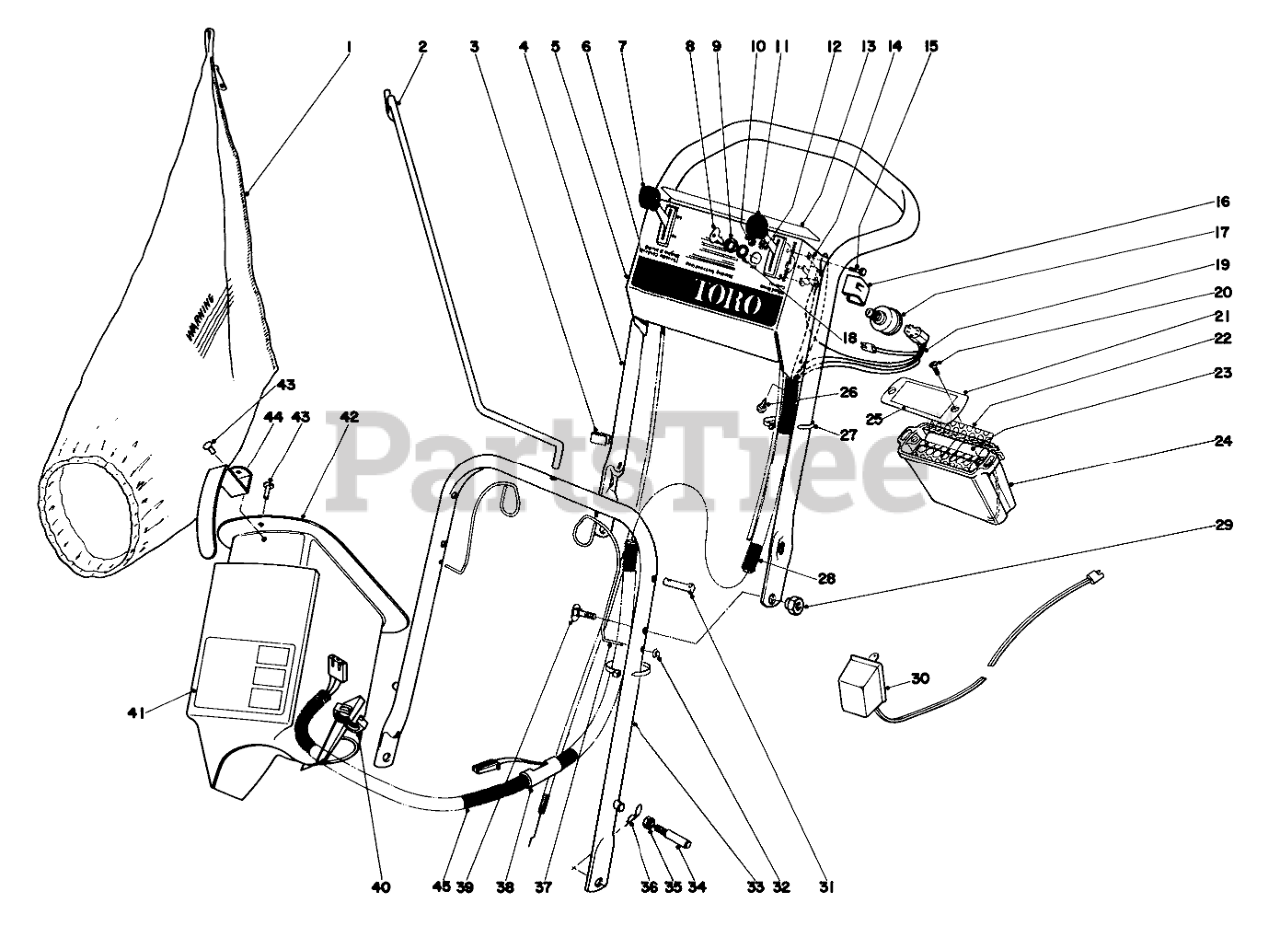

HANDLE ASSEMBLY MODEL NO. 21711 Parts Diagram

  • Title

1

Toro 6-0929

BAG REPLACMNT44-0540
(Superseded to 44-0540)

$99.99

$

In Stock, only 1 left!

0

2

Toro 20-4590

Bag Rod
(Superseded to 47-5830)

$

$

Not available

3

Toro 218-465

BOWDEN CLIP

$

$

Not available

4

Toro 17-4400

UPPER HANDLE

$226.99

$

Usually ships in 3-6 days

0

5

Toro 21-5160

Control Plate

$

$

Not available

6

Toro 25-1830

Decal Control Plate

$

$

Currently unavailable

7

Toro 20-4600

Control Throttle
(Superseded to 46-6010)

$72.99

$

Usually ships in 3-6 days

0

8

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

9

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

10

Toro 3296-9

NUT-HEX

$0.99

$

In Stock, Qty 7

0

11

Toro 25-1230

Traction Control
(Superseded to 46-6040)

$

$

Not available

12

Toro 3256-21

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

13

Toro 22-8140

Decal Safety Instructions

$

$

Currently unavailable

14

Toro 24-9760

CONTROL SWITCH

$112.99

$

Usually ships in 3-6 days

0

15

Toro 3290-124

SCREW-HH

$

$

Not available

16

Toro 25-1590

Cover Switch

$

$

Not available

17

Toro 23-0660

SWITCH-STARTER

$23.99

$

In Stock, only 1 left!

0

18

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 2 left!

0

19

Toro 25-0090

Wire Harness

$

$

Not available

20

Toro 32104-93

Screw

$

$

Not available

21

Toro 6-8230

Cover

$

$

Not available

22

Toro 6-8320

Spacer

$

$

Not available

23

Toro 11-7260

Battery Pack

$

$

Not available

Toro 8-5610

Battery Pack Assembly (Incl. Ref. #20-25)

Note: Not illustrated

$

$

Not available

24

Toro 6-9750

Container Pack

$

$

Not available

25

Toro 8-5600

Decal

$

$

Currently unavailable

26

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

27

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

28

Toro 25-5650

Cover Wiring Harnes Upper

$

$

Not available

29

Toro 17-7010

Pivot Nut

$

$

Not available

30

Toro 6-9780

Charger
(Superseded to 131-0848)

$78.99

$

Usually ships in 3-6 days

0

31

Toro 17-4680

Latch Pin

$

$

Not available

32

Toro 3290-299

CLIP

$

$

Not available

33

Toro 17-7490

Lower Handle

$

$

Currently unavailable

34

Toro 17-9380

HANDLE PIN

$

$

Not available

35

Toro 32146-8

Nut
(Superseded to 32153-4)

$1.49

$

Usually ships in 3-6 days

0

36

Toro 3290-255

PIN-COTTER, HAIR

$8.99

$

In Stock, only 1 left!

0

37

Toro 23-9110

Spring Latch

$

$

Currently unavailable

38

Toro 2412-49

Breakout Fitting

$

$

Not available

39

Toro 6-6330

HANDLE SCREW

$

$

Not available

40

Toro 2412-48

RING FITTING

$

$

Not available

41

Toro 22-4870

Decal Instructions

$

$

Currently unavailable

42

Toro 6-1089

Grass Chute (Incl. Ref. #41, 43, 44)

$

$

Not available

43

Toro 3295-26

RIVET 3/16 X 7/16

$7.49

$

Usually ships in 3-6 days

0

44

Toro 20-4650

HANDLE-GRASS CHUTE

$

$

Not available

45

Toro 25-5660

Cover Wiring Harness Lower

$

$

Not available

Toro 5-3556

Starter Rope

Note: Not illustrated

$

$

Currently unavailable

Toro 20-6760

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable
