20472 - Toro Super Recycler Walk-Behind Mower (SN: 069000001 - 069999999) (1996) ENGINE BRIGGS & STRATTON MODEL 128802-0615-01 Parts Diagram

Super Recycler Walk-Behind Mower

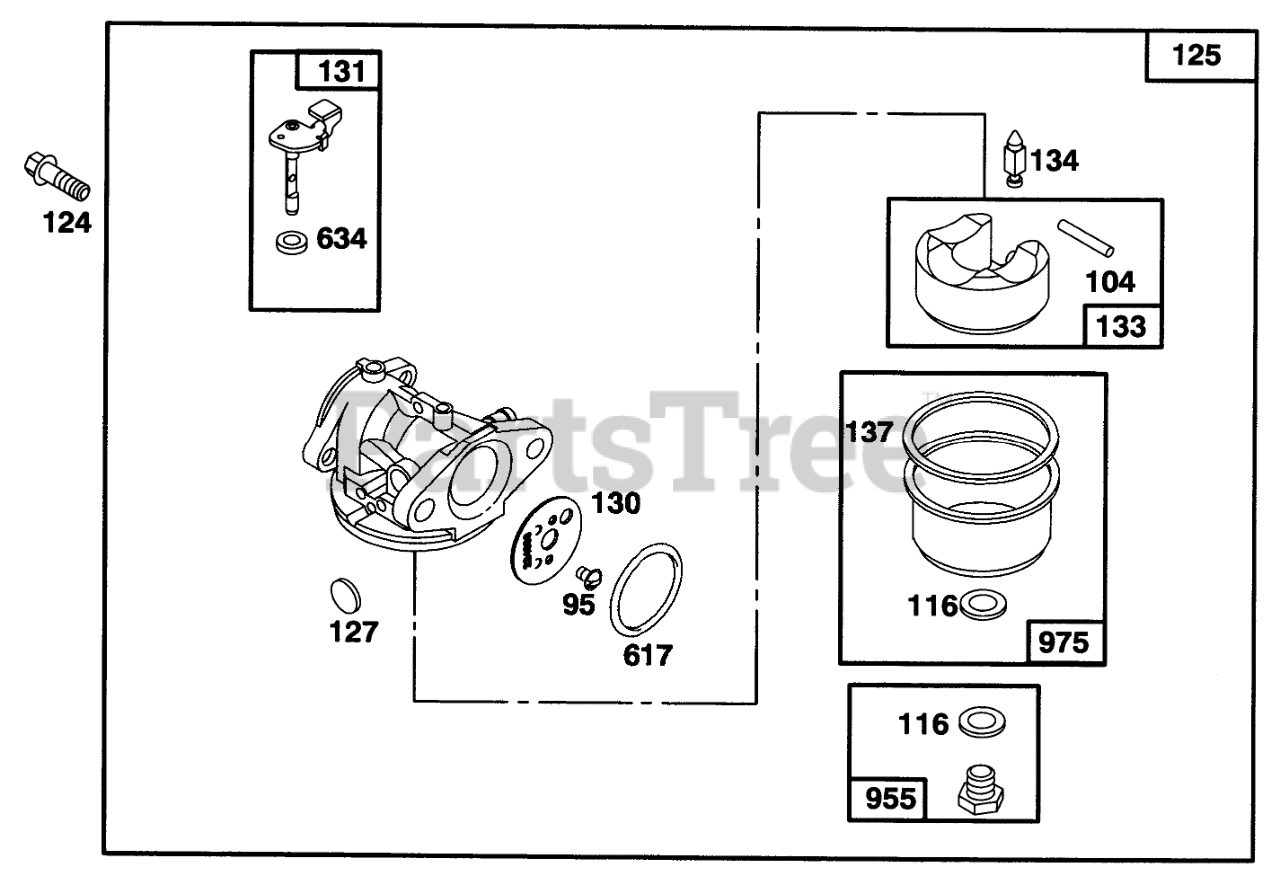

ENGINE BRIGGS & STRATTON MODEL 128802-0615-01 Parts Diagram

  • Title

95

Toro 94098

Valve-Choke

$

$

Currently unavailable

104

Toro 231371

Spring
(Superseded to 701979)

Note: Included in Carburetor Kit-Part No. 493762.

$

$

Not available

116

Gasket-Sealing (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 493762.

$

$

Not available

116

Gasket-Sealing (Sold in Kit Only).

Note: Included in Carburetor Gasket Set-Part No. 490937.

$

$

Not available

124

Toro 94525

Screw-Hex

$

$

Currently unavailable

125

Toro 497347

Carburetor

$

$

Currently unavailable

127

Plug-Welch (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 493762.

$

$

Not available

130

Toro 224908

Throttle Valve

$

$

Currently unavailable

131

Toro 493267

Shaft and Lever

$

$

Currently unavailable

133

Toro 398187

Float-Carburetor

$

$

Currently unavailable

134

Toro 398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Kit-Part No. 493762.

$

$

Currently unavailable

137

Gasket-Bowl (Sold in Kit Only).

Note: Included in Carburetor Gasket Set-Part No. 490937.

$

$

Not available

137

Gasket-Bowl (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 493762.

$

$

Not available

617

Toro 270344

Seal-O Ring

Note: Included in Carburetor Gasket Set-Part No. 490937.

$

$

Currently unavailable

617

Toro 270344

Seal-O Ring

Note: Included in Carburetor Kit-Part No. 493762.

$

$

Currently unavailable

634

Washer-Shaft (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 493762.

$

$

Not available

634

Washer-Shaft (Sold in Kit Only).

Note: Included in Carburetor Gasket Set-Part No. 490937.

$

$

Not available

955

Toro 494870

Jet-Main

$

$

Currently unavailable

975

Toro 493640

Bowl-Float

$

$

Currently unavailable
