20466 - Toro Super Recycler Walk-Behind Mower (SN: 069000001 - 069999999) (1996) ENGINE GTS 150 (MODEL NO. 20465 ONLY) Parts Diagram

Super Recycler Walk-Behind Mower

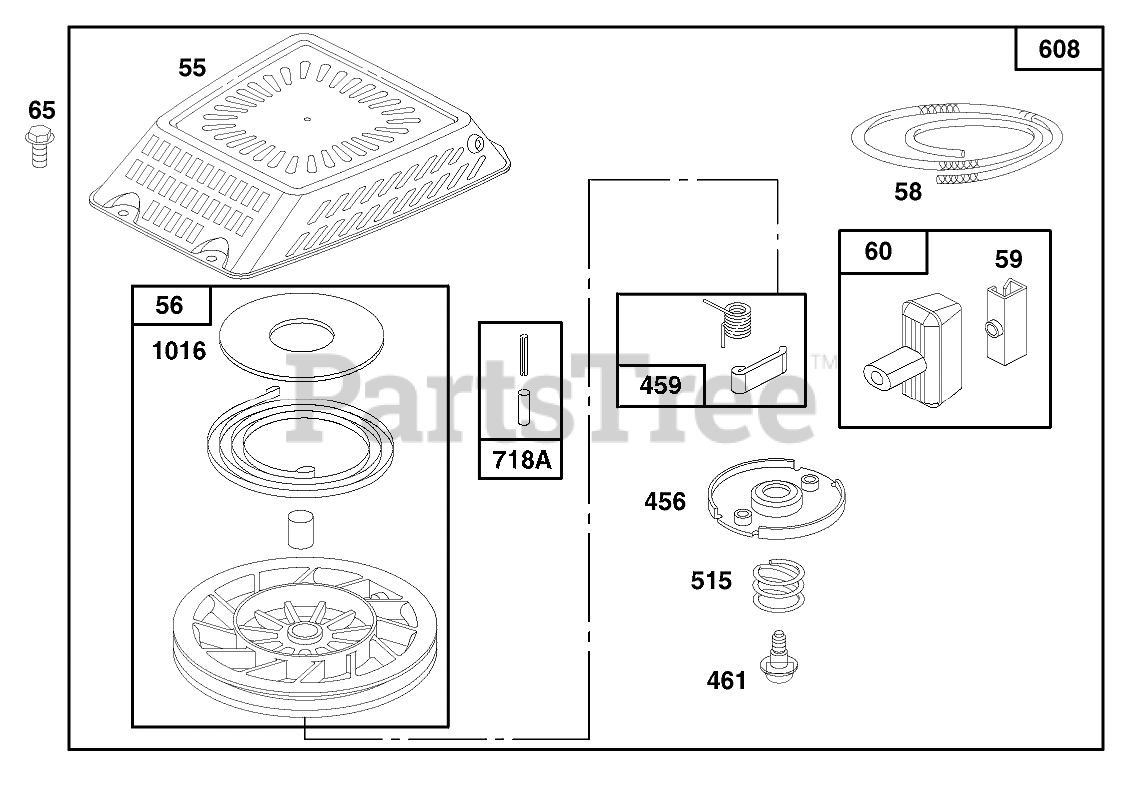

ENGINE GTS 150 (MODEL NO. 20465 ONLY) Parts Diagram

  • Title

55

Toro 77-8460

Housing-Rewind Starter
(Superseded to 94-1678)

$

$

Not available

56

Toro 77-9270

REWIND STARTER PULLEY

$

$

Not available

58

Toro 77-8480

ROPE - STARTER

$

$

Not available

59

Toro 77-7210

INSERT-HANDLE, REWIND

$10.99

$

Usually ships in 3-6 days

0

60

Toro 77-8510

HANDLE - REWIND STARTER
(Superseded to 77-8520)

$

$

Not available

65

Toro 77-8300

SCREW - HEX HEAD

$

$

Not available

456

Toro 77-8470

RETAINER - SPRING

$6.49

$

Usually ships in 3-6 days

0

459

Toro 77-8530

PAWL - RATCHET

$

$

Not available

461

Toro 77-8490

SCREW - HEX HEAD

$

$

Not available

515

Toro 77-8500

SPRING - RETAINER

$12.99

$

In Stock, only 1 left!

0

608

Toro 77-8450

Starter Assy-Rewind
(Superseded to 94-1678)

Note: Model No. 20465-6900001 & Up may have been assembled with Starter Ass-y No. 77-8450 or 94-1678. Part identification will be required for service part replacement.

$

$

Not available

718A

Toro 77-8550

DAWL - SLEEVE

$

$

Not available

1016

Toro 77-8570

COVER - PULLEY

$

$

Not available
