20466 - Toro Super Recycler Walk-Behind Mower (SN: 059000001 - 059999999) (1995) HANDLE ASSEMBLY (MODEL NO. 20465 ONLY) Parts Diagram

Super Recycler Walk-Behind Mower

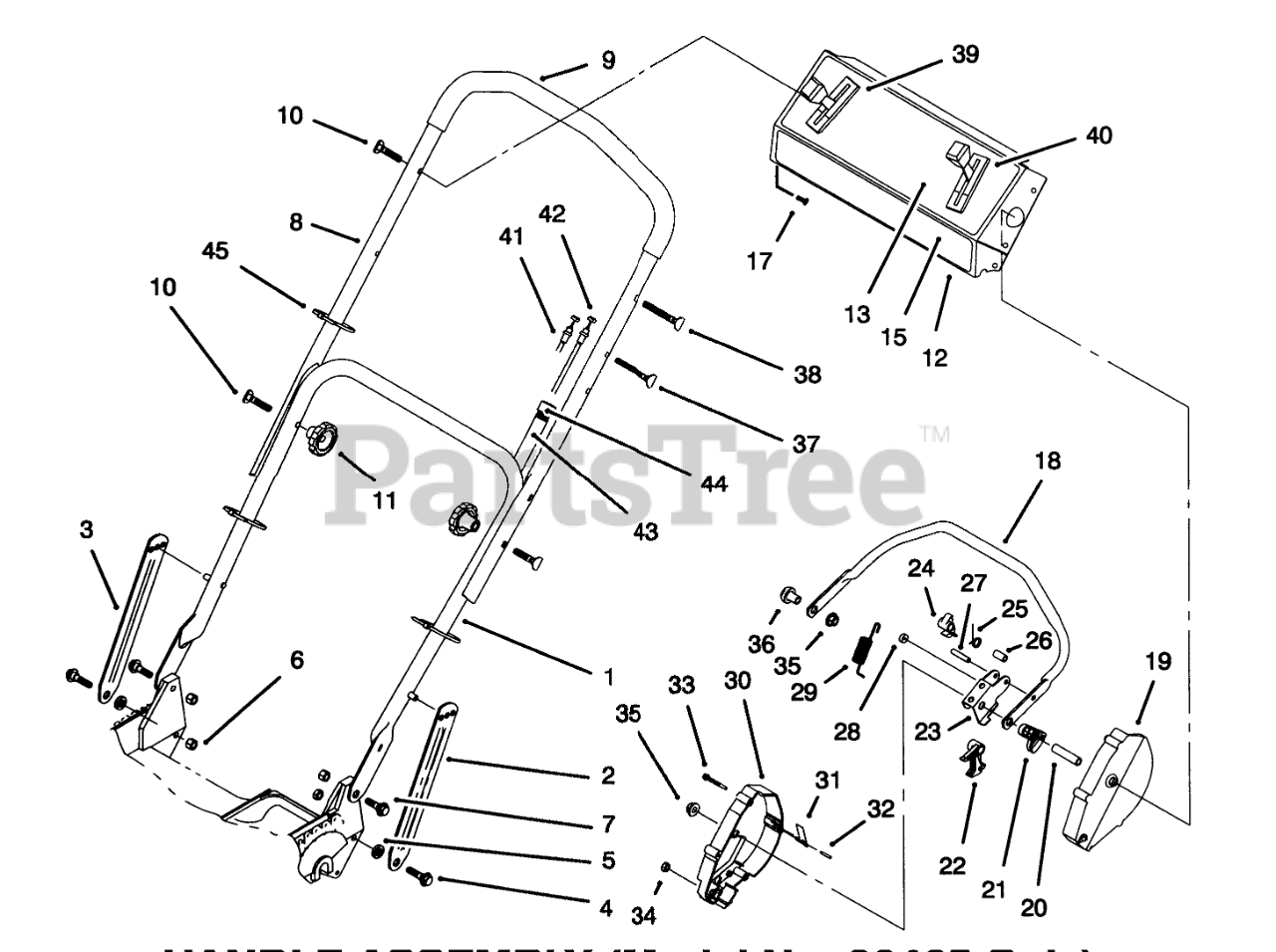

HANDLE ASSEMBLY (MODEL NO. 20465 ONLY) Parts Diagram

  • Title

1

Toro 82-5531

ASM-Handle
(Superseded to 82-5530)

$

$

Not available

2

Toro 84-8361

Latch-Handle
(Superseded to 100-3298-03)

$19.99

$

In Stock, only 2 left!

0

3

Toro 84-8401

Latch-Handle
(Superseded to 100-3297-03)

$9.49

$

In Stock, Qty 5

0

4

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

5

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

6

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, Qty 11

0

8

Toro 92-2277

Handle-Upper
(Superseded to 94-4922)

$175.99

$

Usually ships in 3-6 days

0

9

Toro 92-4086

Grip-Foam

$

$

Not available

10

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 20+

0

11

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

12

Toro 16-9569

Panel-Control (Incl. Ref. #13)

$

$

Not available

13

Toro 93-7167

DECAL - INSRTUCTION

$

$

Not available

15

Toro 93-3697

DECAL - CONSOLE

$

$

Not available

17

Toro 92-9665

SCREW-TAP

$6.99

$

In Stock, Qty 20+

0

18

Toro 52-7430

Bar-Control
(Superseded to 52-7430-03)

$

$

Not available

19

Toro 46-5460

HOUSING-CONTROL, LH

$

$

Not available

20

Toro 46-5590

TUBING-SPACER

$19.99

$

Usually ships in 3-6 days

0

21

Toro 46-5520

LEVER-TRACTION

$

$

Not available

22

Toro 66-0180

ROCKER

$

$

Not available

23

Toro 46-5540

LEVER-CABLE

$19.99

$

In Stock, only 3 left!

0

24

Toro 46-5530

HOOK-CONTROL

$

$

Not available

25

Toro 46-5510

SPRING-TORSION

$6.49

$

Usually ships in 3-6 days

0

26

Toro 46-5550

SPACER

$19.99

$

Usually ships in 3-6 days

0

27

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 8

0

28

Toro 66-0170

WASHER-NYLON

$5.49

$

In Stock, Qty 6

0

29

Toro 66-0190

SPRING-DETENT

$31.99

$

Usually ships in 3-6 days

0

30

Toro 66-0160

Housing-Control
(Superseded to 12-3429)

$

$

Not available

31

Toro 52-7410

SPRING-LEAF

$

$

Not available

32

Toro 57-6290

PIN-INSERT

$4.49

$

Usually ships in 3-6 days

0

33

Toro 46-7040

SCREW-HWHTF

$2.99

$

Usually ships in 3-6 days

0

34

Toro 3296-75

NUT-LOCK NI

$2.49

$

Usually ships in 3-6 days

0

35

Toro 3296-74

NUT-LOCK NI
(Superseded to 3296-72)

$2.99

$

In Stock, Qty 20+

0

36

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

37

Toro 92-2267

SCREW-HANDLE

$6.49

$

In Stock, only 4 left!

0

38

Toro 92-2261

OBS MATERIAL EXCEPT FOR SERVICE

$

$

Not available

39

Toro 76-2712

CONTROL-SPEED, GROUND

$49.99

$

In Stock, only 4 left!

0

40

Toro 71-8391

THROTTLE CONTROL

$111.99

$

Usually ships in 3-6 days

0

41

Toro 83-6600

CLUTCH CABLE

$

$

Not available

42

Toro 46-5480

TRACTION CABLE

$106.99

$

Usually ships in 3-6 days

0

43

Toro 46-6440

CONTROL CABLE COVER

$

$

Not available

44

Toro 2412-50

FITTING-RING

$9.99

$

Usually ships in 3-6 days

0

45

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
