20466 - Toro Super Recycler Walk-Behind Mower (SN: 059000001 - 059999999) (1995) ENGINE GTS-150 (MODEL NO. 20466 ONLY)(MODEL NO. 97777-0110-01) Parts Diagram

Super Recycler Walk-Behind Mower

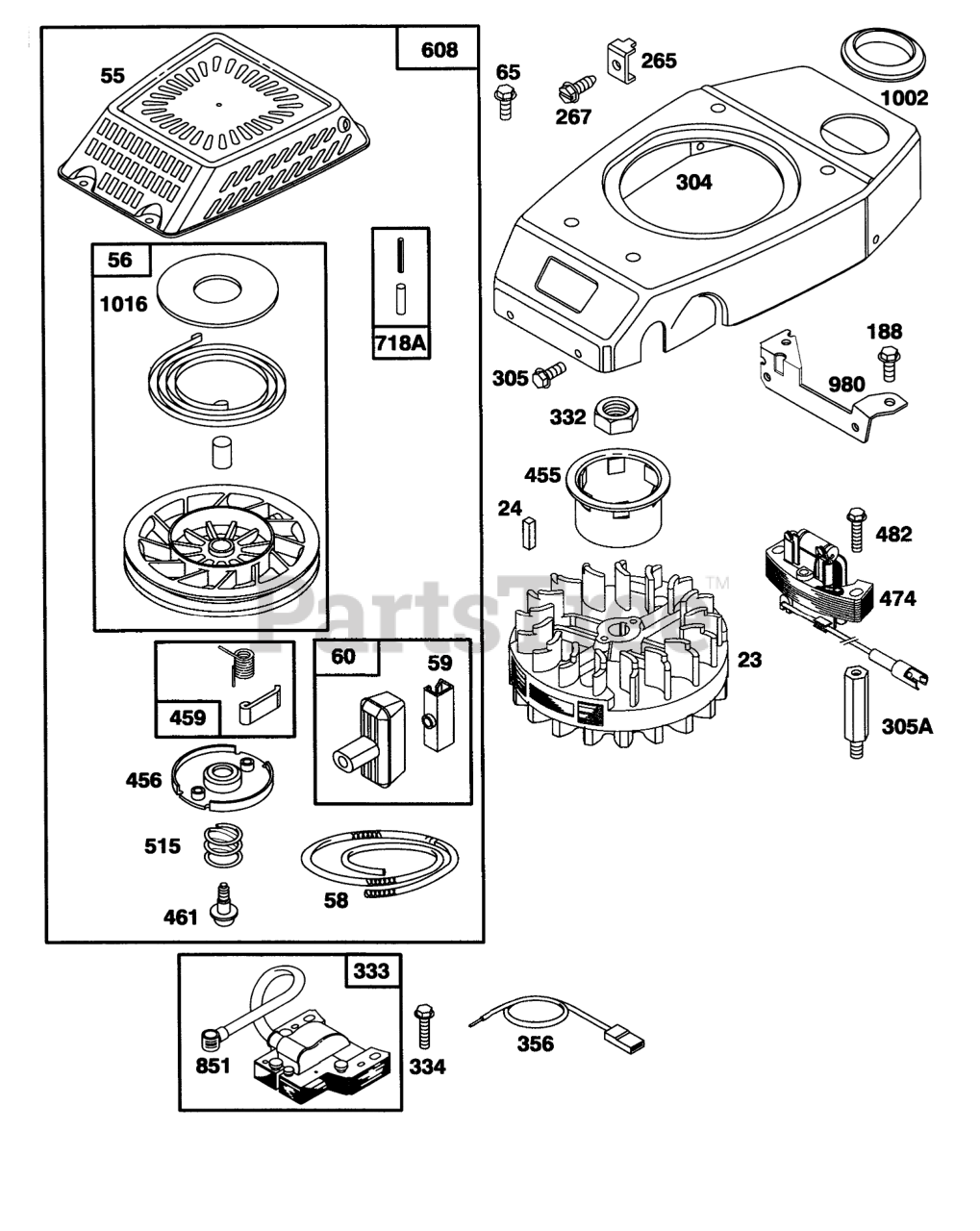

ENGINE GTS-150 (MODEL NO. 20466 ONLY)(MODEL NO. 97777-0110-01) Parts Diagram

  • Title
23

Toro 77-8320

FLYWHEEL - MAGNETO

$243.99

$

Usually ships in 3-6 days

0

24

Toro 77-8340

KEY - FLYWHEEL

$6.99

$

Usually ships in 3-6 days

0

55

Toro 77-8460

Housing-Rewind Starter
(Superseded to 94-1678)

$

$

Not available

56

Toro 77-8560

Pulley-Rewind Starter
(Superseded to 77-9270)

$

$

Not available

58

Toro 77-8480

ROPE - STARTER

$

$

Not available

59

Toro 77-7210

INSERT-HANDLE, REWIND

$12.99

$

Usually ships in 3-6 days

0

60

Toro 77-8510

HANDLE - REWIND STARTER
(Superseded to 77-8520)

$

$

Not available

65

Toro 77-8300

SCREW - HEX HEAD

$

$

Not available

188

Toro 77-7450

SCREW - SEM

$

$

Not available

265

Toro 77-8280

CLAMP - CASING
(Superseded to 2210-249)

$3.49

$

Usually ships in 3-6 days

0

267

Toro 77-8290

SCREW - HEX HEAD

$

$

Not available

304

Toro 77-8250

HOUSING - BLOWER

$

$

Not available

305

Toro 77-8310

SCREW - HEX HEAD

$

$

Not available

305A

Toro 77-8390

STUD - STATOR MTG
(Superseded to 99-1014)

$

$

Not available

332

Toro 77-8360

NUT - HEXAGON

$

$

Not available

333

Toro 77-8420

ARMATURE - MAGNETO
(Superseded to 99-1005)

$57.99

$

In Stock, Qty 20+

0

334

Toro 77-8440

SCREW - SEM

$

$

Not available

356

Toro 77-8400

WIRE - GROUND

$

$

Not available

455

Toro 77-8350

CUP - STARTER

$

$

Not available

456

Toro 77-8470

RETAINER - SPRING

$

$

Not available

459

Toro 77-8530

PAWL - RATCHET

$

$

Not available

461

Toro 77-8490

SCREW - HEX HEAD

$

$

Not available

474

Toro 77-8370

STATOR - ALTERNATER
(Superseded to 99-1011)

$

$

Not available

482

Toro 77-8380

Screw-Sem

$

$

Currently unavailable

515

Toro 77-8500

SPRING - RETAINER

$15.99

$

In Stock, only 1 left!

0

608

Toro 77-8450

Starter Assy-Rewind
(Superseded to 94-1678)

$

$

Not available

718A

Toro 77-8550

DAWL - SLEEVE

$

$

Not available

851

Toro 77-8430

TERMINAL - CABLE

$

$

Not available

980

Toro 77-7140

BRACKET-BLOWER HSG

$

$

Not available

1002

Toro 77-7180

GROMMET

$

$

Not available

1016

Toro 77-8570

COVER - PULLEY

$

$

Not available
