20465 - Toro Super Recycler Walk-Behind Mower (SN: 079000001 - 079999999) (1997) ENGINE GTS 150 Parts Diagram

Super Recycler Walk-Behind Mower

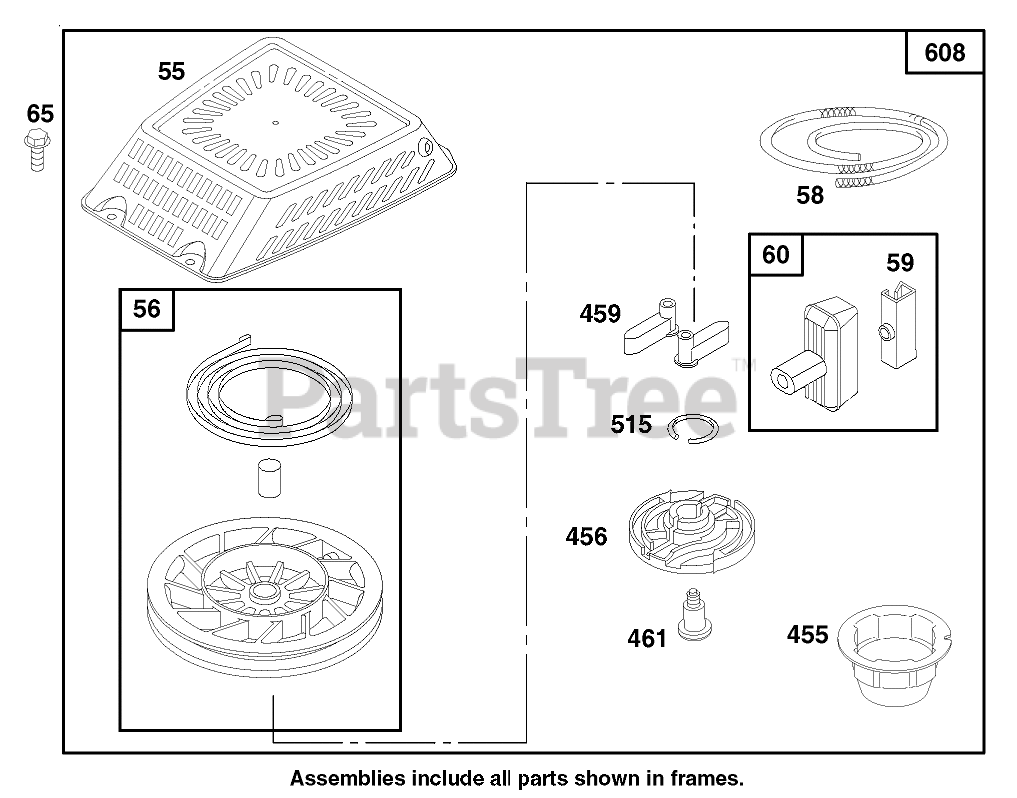

ENGINE GTS 150 Parts Diagram

  • Title
55

Toro 77-8460

Housing-Rewind Starter
(Superseded to 94-1678)

$

$

Not available

56

Toro 94-1657

PULLEY-STARTER, REWIND

$67.99

$

Usually ships in 3-6 days

0

58

Toro 94-1668

Rope-Starter

$5.99

$

In Stock, Qty 7

0

59

Toro 77-7210

INSERT-HANDLE, REWIND

$12.99

$

Usually ships in 3-6 days

0

60

Toro 77-8510

HANDLE - REWIND STARTER
(Superseded to 77-8520)

$

$

Not available

65

Toro 77-8300

SCREW - HEX HEAD

$

$

Not available

455

Toro 94-1653

CUP - STARTER

$21.99

$

Usually ships in 3-6 days

0

456

Toro 94-1659

RETAINER-STARTER, REWIND

$8.99

$

Usually ships in 3-6 days

0

459

Toro 94-1654

PAWL-STARTER

$

$

Not available

461

Toro 94-1660

SCREW-SHOULDER

$

$

Not available

515

Toro 94-1655

SPRING-TORSION

$

$

Not available

608

Toro 94-1661

ASM - REWIND STARTER

$

$

Not available
