20465 - Toro Super Recycler Walk-Behind Mower (SN: 069000001 - 069999999) (1996) ENGINE GTS 150 (MODEL NO. 20466 ONLY) Parts Diagram

Super Recycler Walk-Behind Mower

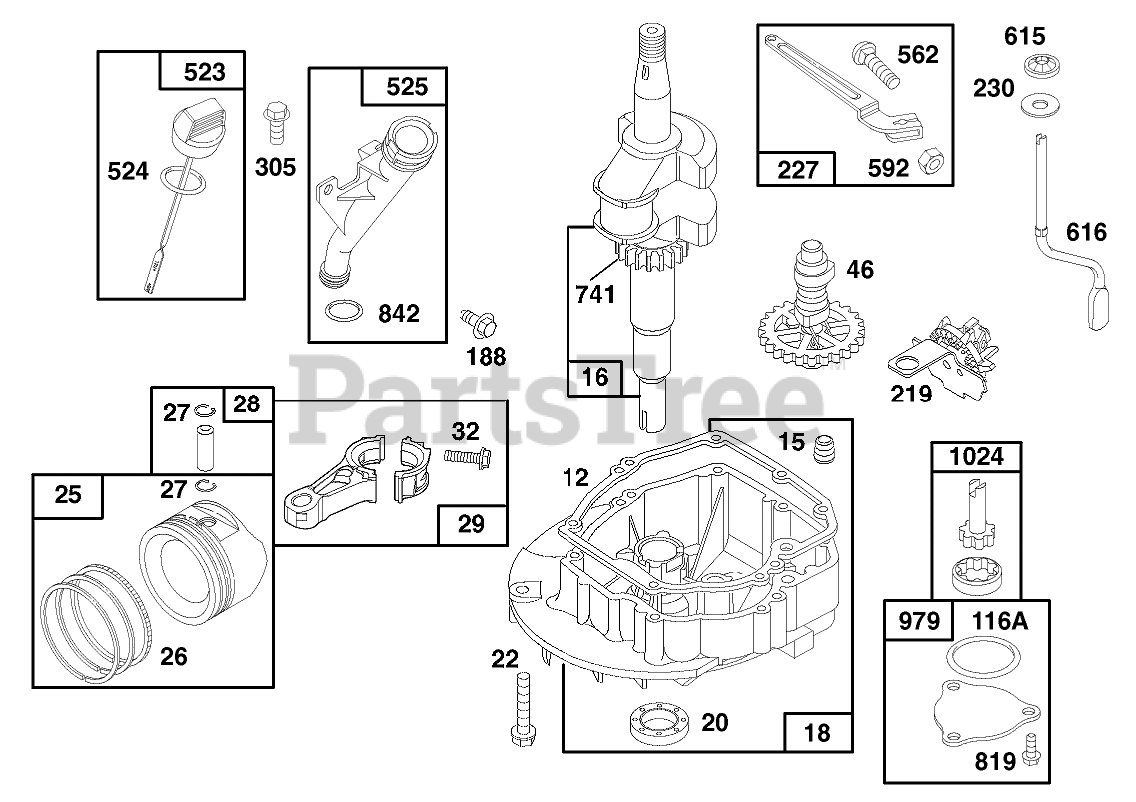

ENGINE GTS 150 (MODEL NO. 20466 ONLY) Parts Diagram

  • Title
12

Toro 77-7550

ENGINE BASE GASKET

Note: Included in Gasket Set-Part No. 77-8900

$23.99

$

Usually ships in 3-6 days

0

15

Toro 77-9240

PIPE PLUG

$

$

Not available

16

Toro 77-7510

CRANKSHAFT

$

$

Not available

18

Toro 77-7560

ENGINE SUMP

$

$

Not available

20

Toro 77-7570

SEAL-OIL

Note: Included in Gasket Set-Part No. 77-8900

$23.99

$

Usually ships in 3-6 days

0

22

Toro 77-9070

SCREW - ENGINE BASE
(Superseded to 99-0956)

$

$

Not available

25

Toro 77-7690

STD PISTON ASSEMBLY

$182.99

$

In Stock, only 1 left!

0

26

Toro 77-7700

STD RING SET

$

$

Not available

27

Toro 77-7710

PISTON PIN LOCK

$

$

Not available

28

Toro 77-9340

PIN ASM - PISTON

$

$

Not available

29

Toro 77-7670

CONNECTING ROD

$

$

Not available

32

Toro 77-7680

Connecting Rod
(Superseded to 99-0963)

$

$

Not available

37

Toro 77-7190

GUARD - FLYWHEEL

$22.99

$

Usually ships in 3-6 days

0

46

Toro 77-7490

CAM GEAR

$

$

Not available

116A

Toro 77-7660

O RING SEAL

Note: Included in Gasket Set-Part No. 77-8900

$13.99

$

Usually ships in 3-6 days

0

188

Toro 77-9360

Screw-Cap
(Superseded to 94-1652)

$

$

Not available

219

Toro 77-7500

GOVERNOR/OIL SLINGER

$62.99

$

Usually ships in 3-6 days

0

227

Toro 77-7370

GOVERNOR LEVER ASSEMBLY

$46.99

$

Usually ships in 3-6 days

0

230

Toro 77-7470

WASHER

$

$

Not available

305

Toro 77-8310

SCREW - HEX HEAD

$

$

Not available

523

Toro 77-7260

DIPSTICK-OIL

$

$

Not available

524

Toro 77-7270

O-RING

Note: Included in Gasket Set-Part No. 77-8900

$10.99

$

Usually ships in 3-6 days

0

525

Toro 77-7280

OIL FILLER TUBE

$

$

Not available

562

Toro 77-7380

GOVERNOR LEVER BOLT

$

$

Not available

592

Toro 77-7390

HEX NUT

$

$

Not available

615

Toro 77-7480

FASTENER
(Superseded to 99-0925)

$

$

Not available

616

Toro 77-7460

GOVERNOR CRANK
(Superseded to 99-0926)

$

$

Not available

741

Toro 77-7530

TIMING GEAR

$

$

Not available

842

Toro 77-7300

O-RING

Note: Included in Gasket Set-Part No. 77-8900

$4.99

$

In Stock, only 1 left!

0

819

Toro 77-7450

SCREW - SEM

$

$

Not available

979

Toro 77-7650

OIL PUMP COVER

$

$

Not available

1024

Toro 77-7640

OIL PUMP

$51.99

$

Usually ships in 3-6 days

0
