20465 - Toro Super Recycler Walk-Behind Mower (SN: 059000001 - 059999999) (1995) ENGINE GTS 150 (MODEL NO. 20466 ONLY)(MODEL NO. 97777-0311-A1) Parts Diagram

Super Recycler Walk-Behind Mower

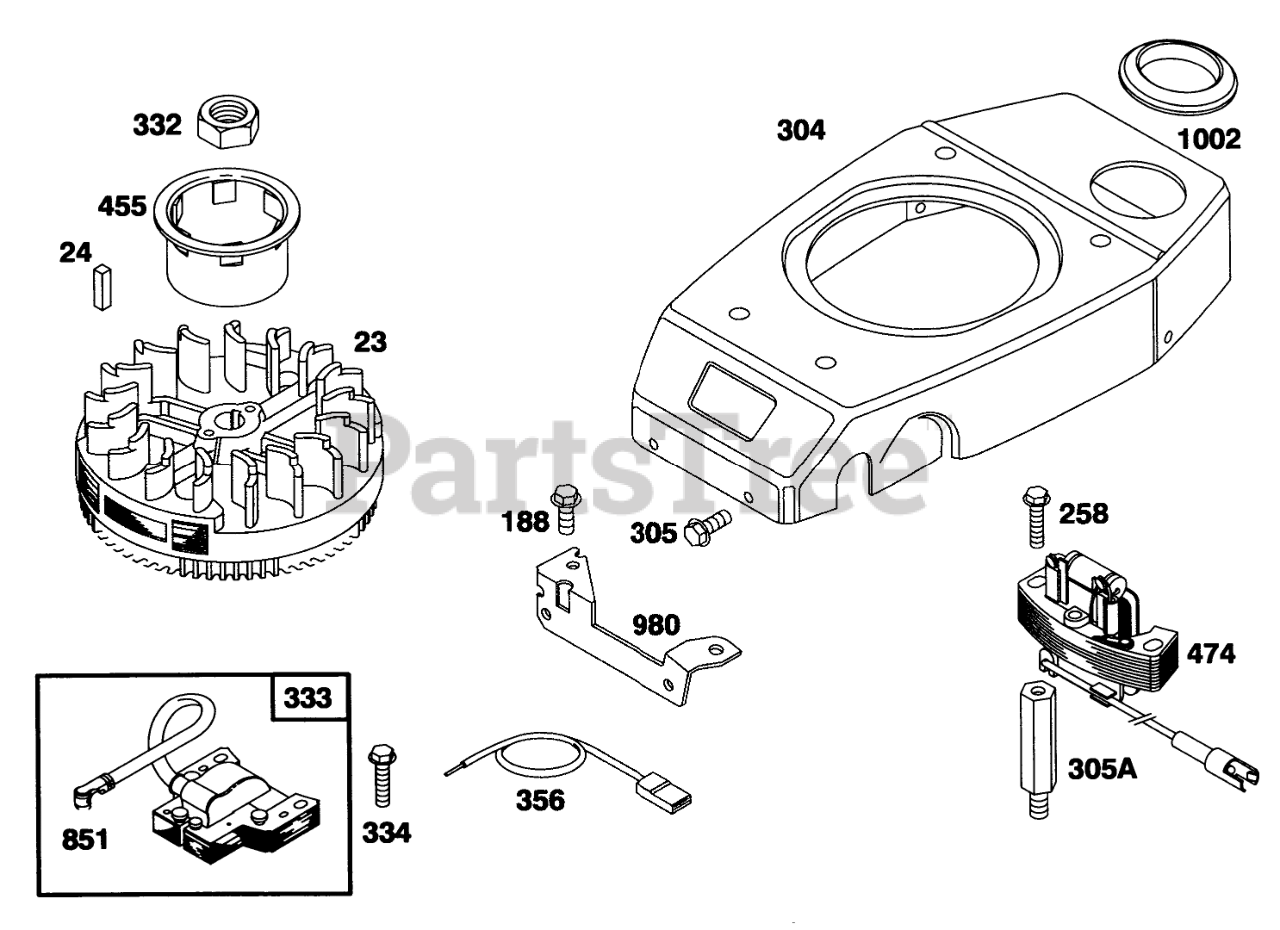

ENGINE GTS 150 (MODEL NO. 20466 ONLY)(MODEL NO. 97777-0311-A1) Parts Diagram

  • Title
23

Toro 77-8320

FLYWHEEL - MAGNETO

$243.99

$

Usually ships in 3-6 days

0

24

Toro 77-8340

KEY - FLYWHEEL

$6.99

$

Usually ships in 3-6 days

0

37

Toro 77-7190

GUARD - FLYWHEEL

$22.99

$

Usually ships in 3-6 days

0

188

Toro 77-9360

Screw-Cap
(Superseded to 94-1652)

$

$

Not available

258

Toro 77-8870

SCREW - SEM

$

$

Not available

304

Toro 77-8280

CLAMP - CASING
(Superseded to 2210-249)

$3.49

$

Usually ships in 3-6 days

0

305

Toro 77-8310

SCREW - HEX HEAD

$

$

Not available

305A

Toro 77-8390

STUD - STATOR MTG
(Superseded to 99-1014)

$

$

Not available

332

Toro 77-8360

NUT - HEXAGON

$

$

Not available

333

Toro 77-8420

ARMATURE - MAGNETO
(Superseded to 99-1005)

$57.99

$

In Stock, Qty 20+

0

334

Toro 77-9420

SCREW - ARMATURE MTG

$

$

Not available

356

Toro 77-8400

WIRE - GROUND

$

$

Not available

455

Toro 77-8350

CUP - STARTER

$

$

Not available

474

Toro 77-8370

STATOR - ALTERNATER
(Superseded to 99-1011)

$

$

Not available

851

Toro 77-8430

TERMINAL - CABLE

$

$

Not available

980

Toro 77-7140

BRACKET-BLOWER HSG

$

$

Not available

1002

Toro 77-7180

GROMMET

$

$

Not available
