20464 - Toro Super Recycler Walk-Behind Mower (SN: 069000001 - 069999999) (1996) ENGINE GTS 150 Parts Diagram

Super Recycler Walk-Behind Mower

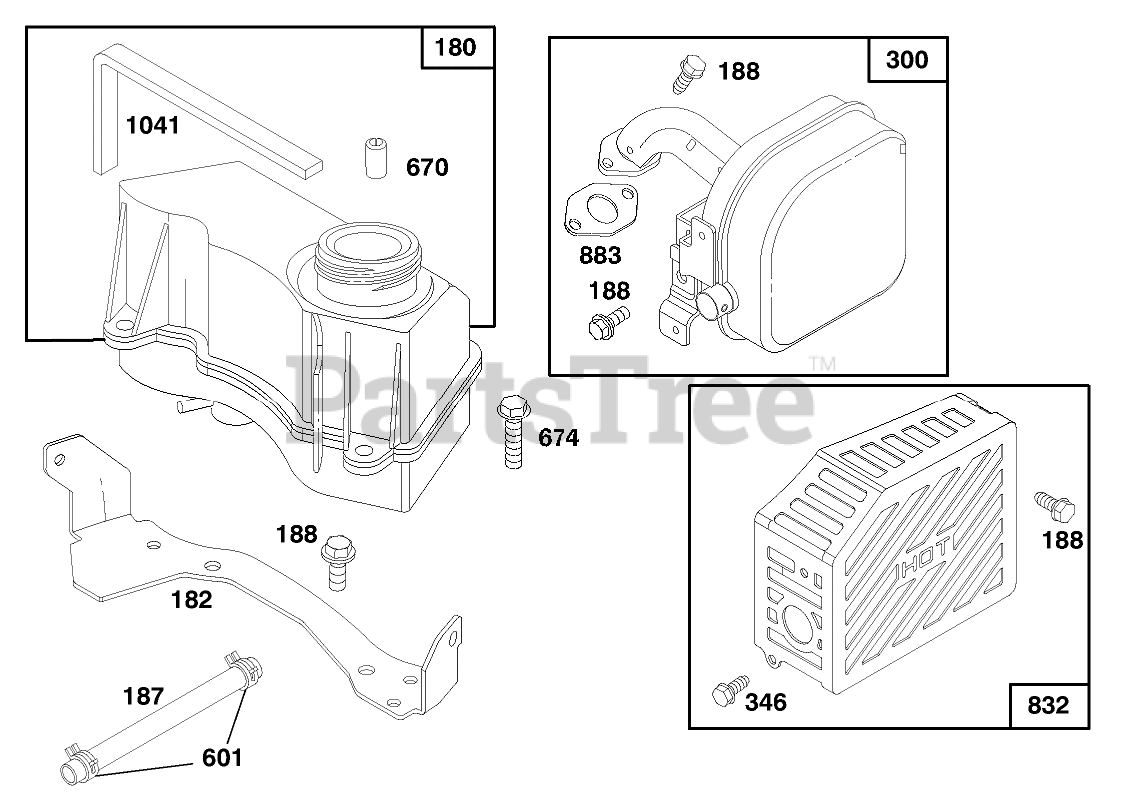

ENGINE GTS 150 Parts Diagram

  • Title
180

Toro 77-8580

TANK ASSY - FUEL

$181.99

$

Usually ships in 3-6 days

0

182

Toro 77-7170

BRACKET - FUEL TANK

$

$

Not available

187

Toro 77-8620

HOSE - FUEL

$

$

Not available

188

Toro 77-9360

Screw-Cap
(Superseded to 94-1652)

$

$

Not available

300

Toro 77-8640

MUFFLER - EXHAUST

$

$

Not available

346

Toro 77-9430

Screw-Hex
(Superseded to 99-0999)

$8.49

$

Usually ships in 3-6 days

0

601

Toro 78-4690

Clamp

$

$

Not available

670

Toro 77-9030

Spacer-Fuel Tank (Includes 2)

$

$

Not available

674

Toro 77-8600

SCREW - HEX HEAD

$

$

Not available

832

Toro 77-9290

MUFFLER GUARD BLACK

$

$

Not available

883

Toro 77-7760

EXHAUST GASKET

Note: Included in Gasket Set-Part No. 77-8900

$

$

Not available

1041

Toro 77-8590

SEAL - FOAM

Note: Included in Gasket Set-Part No. 77-8900

$

$

Not available
