20464 - Toro Super Recycler Walk-Behind Mower (SN: 059000001 - 059999999) (1995) ENGINE GTS 150 MODEL 97772-0118-02 Parts Diagram

Super Recycler Walk-Behind Mower

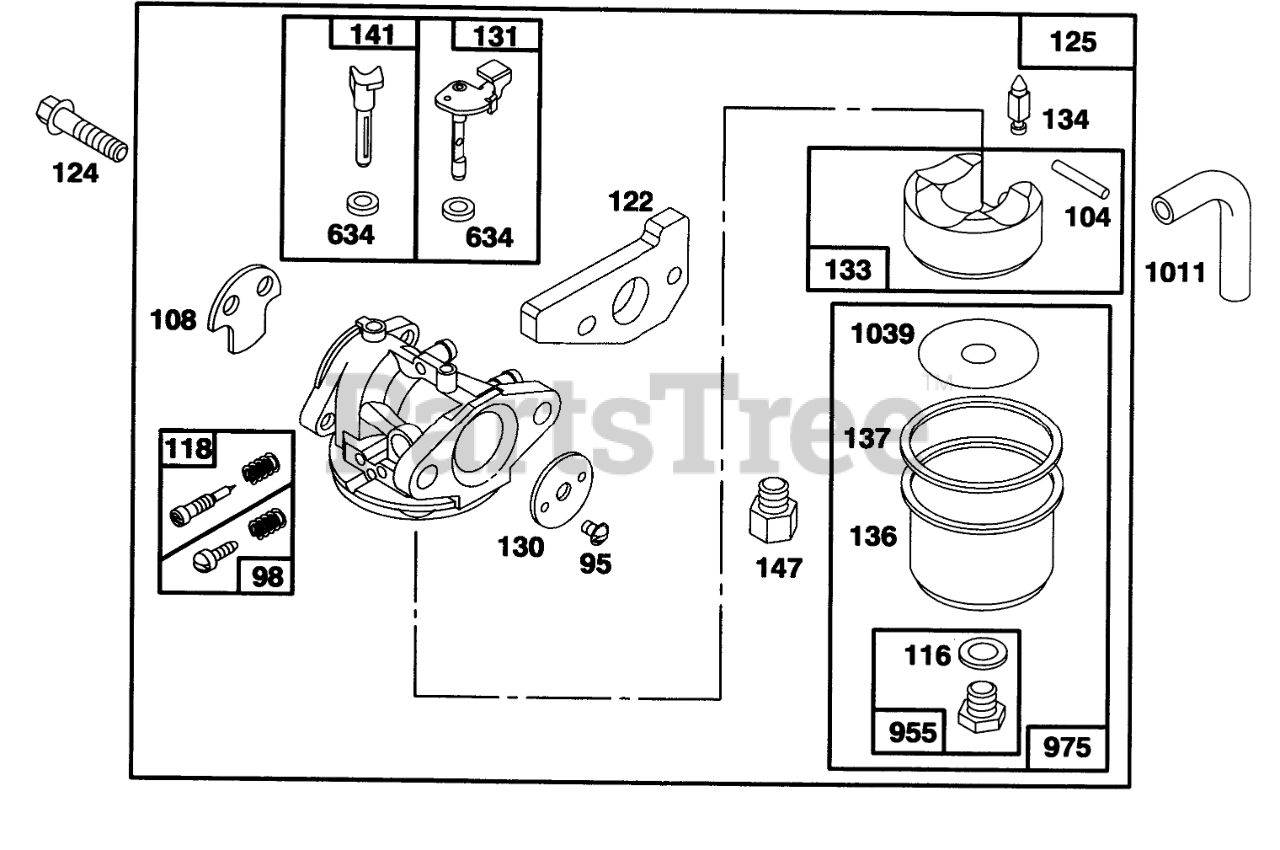

ENGINE GTS 150 MODEL 97772-0118-02 Parts Diagram

  • Title
95

Toro 77-8090

SCREW - ROUND HEAD

$

$

Not available

98

Toro 77-8240

IDLE ADJUSTING SCREW

$

$

Not available

104

Toro 77-8180

FLOAT HINGE PIN

Note: Included in Carb. Overhaul Kit Part No. 77-8920

$

$

Not available

108

Toro 77-7080

Valve-Choke

$

$

Currently unavailable

116

Toro 77-8210

SEALING GASKET

Note: Included in Carb. Overhaul Kit Part No. 77-8920

$6.99

$

In Stock, Qty 8

0

116

Toro 77-8210

SEALING GASKET

Note: Included in Carb. Gasket Set Part No. 77-8930

$6.99

$

In Stock, Qty 8

0

118

Toro 77-8230

VALVE KIT - NEEDLE

Note: Included in Carb. Overhaul Kit Part No. 77-8920

$19.99

$

Usually ships in 3-6 days

0

122

Toro 77-7820

ADAPTER ASSEMBLY

Note: Included in Carb. Overhaul Kit Part No. 77-8920

$31.99

$

Usually ships in 3-6 days

0

124

Toro 77-7970

HEX HEAD SCREW

$5.49

$

Usually ships in 3-6 days

0

125

Toro 77-8050

CARBURETOR ASSEMBLY

$

$

Not available

130

Toro 77-8080

THROTTLE VALVE

$

$

Not available

131

Toro 77-8160

THROTTLE SHAFT

$

$

Not available

133

Toro 77-8170

FLOAT-CARBURETOR

$32.99

$

In Stock, only 1 left!

0

134

Toro 77-8110

Valve-Inlet (Includes Seat)

Note: Included in Carb. Overhaul Kit Part No. 77-8920

$23.99

$

Usually ships in 3-6 days

0

136

Toro 77-7240

FLOAT BOWL

$

$

Not available

137

Toro 77-8200

FLOAT BOWL GASKET

Note: Included in Carb. Gasket Set Part No. 77-8930

$8.49

$

In Stock, only 3 left!

0

137

Toro 77-8200

FLOAT BOWL GASKET

Note: Included in Carb. Overhaul Kit Part No. 77-8920

$8.49

$

In Stock, only 3 left!

0

141

Toro 77-8130

CHOKE SHAFT

$

$

Not available

147

Toro 77-8120

JET ADAPTER

$20.99

$

Usually ships in 3-6 days

0

634

Toro 77-8150

SEAL WASHER

Note: Included in Carb. Overhaul Kit Part No. 77-8920

$

$

Not available

955

Toro 77-8220

HEX HEAD SCREW

$

$

Not available

975

Toro 77-8190

CARBURETOR BOWL ASM

$

$

Not available

1011

Toro 77-8040

VENT TUBE

$22.99

$

Usually ships in 3-6 days

0

1039

Toro 77-7250

FLOAT LIMITER

Note: Included in Carb. Overhaul Kit Part No. 77-8920

$

$

Not available
