20463 - Toro Super Recycler Walk-Behind Mower (SN: 069000001 - 069999999) (1996) HANDLE ASSEMBLY (MODEL NO. 20463 ONLY) Parts Diagram

Super Recycler Walk-Behind Mower

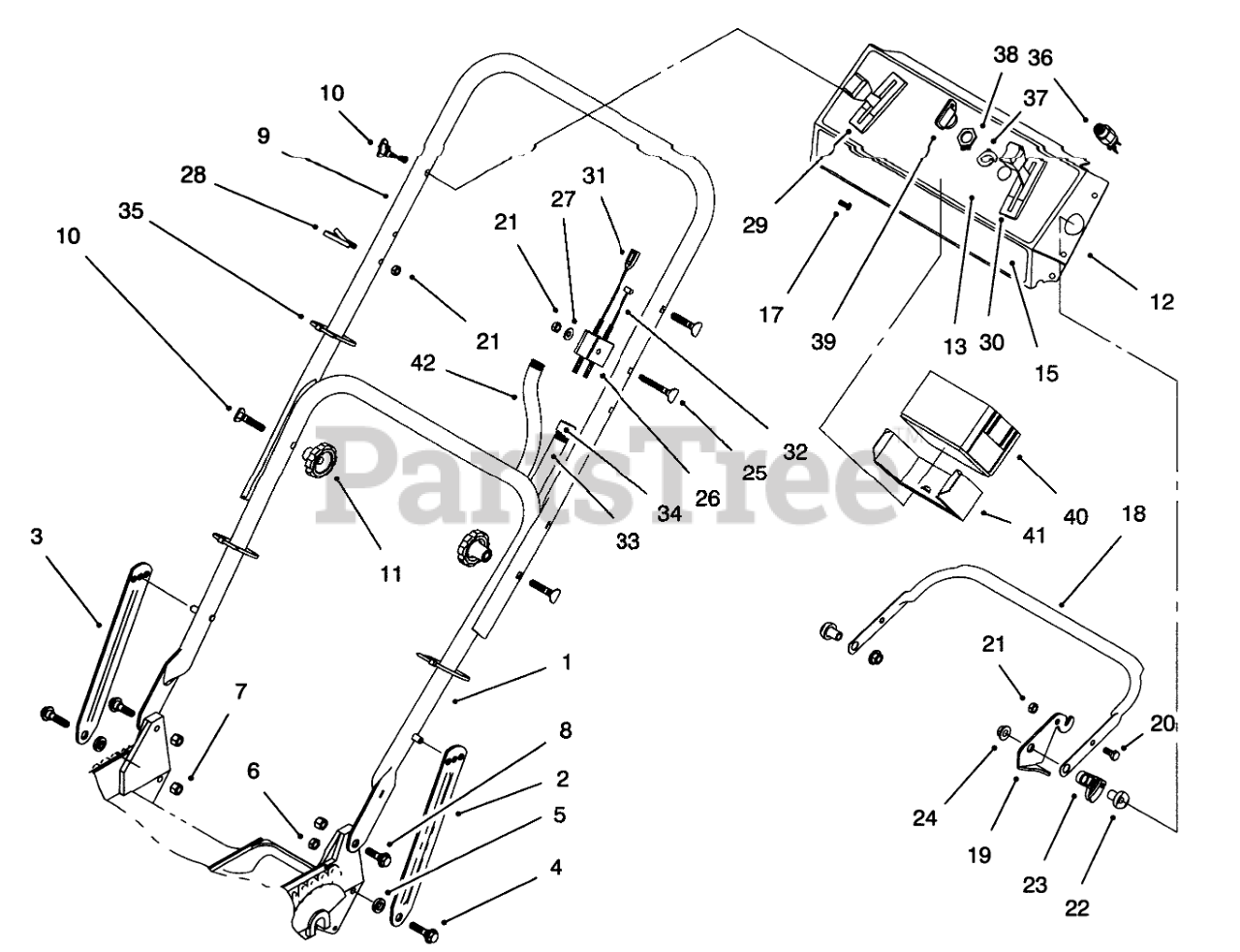

HANDLE ASSEMBLY (MODEL NO. 20463 ONLY) Parts Diagram

  • Title
1

Toro 82-5531

ASM-Handle
(Superseded to 82-5530)

$

$

Not available

2

Toro 84-8361

Latch-Handle
(Superseded to 100-3298-03)

$19.99

$

In Stock, only 2 left!

0

3

Toro 84-8401

Latch-Handle
(Superseded to 100-3297-03)

$9.49

$

In Stock, Qty 5

0

4

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

5

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

6

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

7

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

8

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, Qty 11

0

9

Toro 92-2278

Handle-Upper
(Superseded to 92-2278-05)

$

$

Not available

10

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 20+

0

11

$17.99

$

In Stock, only 2 left!

0

12

Toro 16-9509

Panel-Control (Incl. Ref. #13)

$

$

Not available

13

Toro 93-4192

DECAL - CONSOLE

$

$

Not available

15

Toro 93-3697

DECAL - CONSOLE

$

$

Not available

17

Toro 92-9665

SCREW-TAP

$6.99

$

In Stock, Qty 20+

0

18

Toro 71-3080

Bar-Control
(Superseded to 71-3080-05)

$

$

Not available

19

Toro 66-5351

Lever-Control
(Superseded to 66-5351-03)

$11.99

$

Usually ships in 3-6 days

0

20

Toro 321-39

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

21

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 8

0

22

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

23

Toro 46-5520

LEVER-TRACTION

$

$

Not available

24

Toro 3296-74

NUT-LOCK NI
(Superseded to 3296-72)

$2.99

$

In Stock, Qty 20+

0

25

Toro 92-2269

SCREW-HANDLE

$6.49

$

Usually ships in 3-6 days

0

26

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 1 left!

0

27

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

28

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 20+

0

29

Toro 76-2712

CONTROL-SPEED, GROUND

$49.99

$

In Stock, only 4 left!

0

30

Toro 93-4186

CABLE - THROTTLE

$90.99

$

Usually ships in 3-6 days

0

31

Toro 93-4187

CABLE - BRAKE

$53.99

$

In Stock, only 1 left!

0

32

Toro 46-5481

CABLE-TRACTION

$65.99

$

Usually ships in 3-6 days

0

33

Toro 46-6440

CONTROL CABLE COVER

$

$

Not available

34

Toro 2412-50

FITTING-RING

$9.99

$

Usually ships in 3-6 days

0

35

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

36

Toro 46-5780

Switch-Starter (Incl. Ref. #37 & 38)

$29.99

$

In Stock, Qty 7

0

37

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 20+

0

38

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

39

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

40

Toro 55-7520

BATTERY ASSEMBLY

$200.99

$

Usually ships in 3-6 days

0

41

Toro 55-8180

Retainer-Battery
(Superseded to 55-8180-03)

$41.99

$

Usually ships in 3-6 days

0

42

Toro 80-3670

WIRING HARNESS

$

$

Not available

Toro 92-1743

Charger-Battery
(Superseded to 131-0848)

Note: Not illustrated

$78.99

$

Usually ships in 3-6 days

0
