20462 - Troy-Bilt Pony I Rear-Tine Tiller (SN: P001001 - P101750) MAIN DRIVE SHAFT & GEAR ASSEMBLIES Parts Diagram

Pony I Rear-Tine Tiller

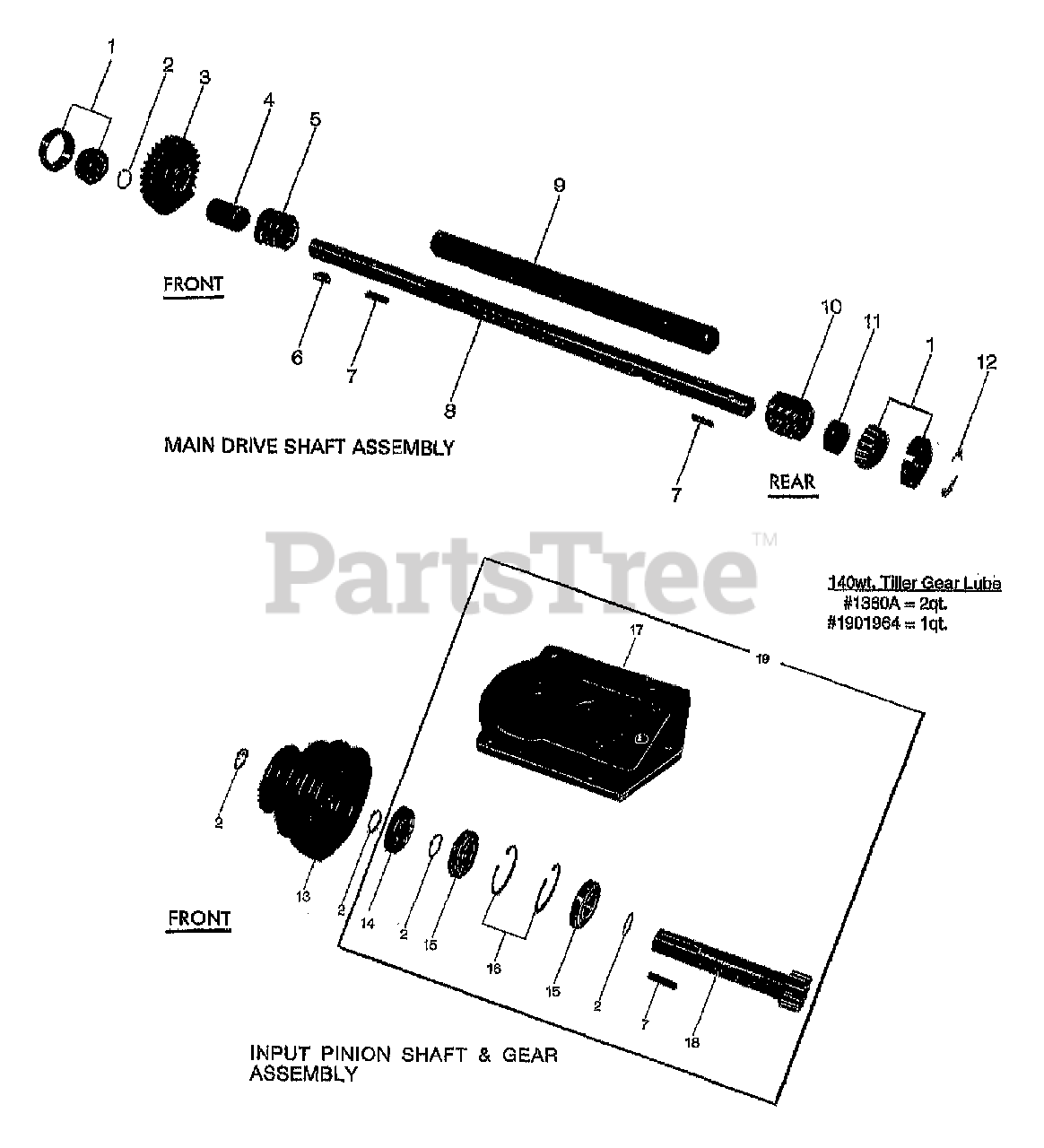

MAIN DRIVE SHAFT & GEAR ASSEMBLIES Parts Diagram

  • Title

1

Troy-Bilt 1714

KIT-BRG CONE&RACE-DRIVESHAFT
(Superseded to 941-0107)

$47.99

$

In Stock, Qty 17

0

2

Troy-Bilt 9500

RING-RETAIN EXT .707 ID
(Superseded to 916-0101)

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 20310

GEAR-SPUR 30 TEETH

$

$

Currently unavailable

4

Troy-Bilt 20323

SPACER-1X.76X1.25

$

$

Currently unavailable

5

Troy-Bilt 20307

WORM-1.25 PD .314 LEAD

$

$

Currently unavailable

6

Troy-Bilt 9335

KEY-WOODRUFF #607

$

$

Currently unavailable

7

Troy-Bilt 9301

KEY-.188 SQX1.0
(Superseded to GW-9301099)

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 20314

SHAFT-DRIVE MACH

$

$

Currently unavailable

9

Troy-Bilt 20324

TUBING-MACH

$

$

Currently unavailable

10

Troy-Bilt 20305

WORM-1.25 PD 1.88 LEAD

$

$

Currently unavailable

11

Troy-Bilt 1066

SPACER-1X.76X.54

$

$

Currently unavailable

12

Troy-Bilt 1224-1

SHIM-REAR BEARING CAP - 1.75X1.5X.01
(Superseded to 736-04308)

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 1224-2

SHIM-REAR BEARING CAP -1.75X1.5X.03
(Superseded to 736-04307)

$4.49

$

In Stock, only 1 left!

0

12

Troy-Bilt 1224-3

SHIM-REAR BEARING CAP -1.75X1.5X.005
(Superseded to 736-04306)

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 1325C

SHIM SET-DRIVESHAFT-HORSE (INCL. #1224-1 (2) , #1224-2(2), #1224-3(1) SHIMS.
(Superseded to GW-1325C)

$15.99

$

In Stock, only 2 left!

0

19

Troy-Bilt 1883

COVER-TRANS W/BRG CONE, INCL. 2, 14-18

$

$

Currently unavailable

2

Troy-Bilt 9500

RING-RETAIN EXT .707 ID
(Superseded to 916-0101)

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 9301

KEY-.188 SQX1.0
(Superseded to GW-9301099)

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 20315

PULLEY-DRIVE MACH

$

$

Currently unavailable

14

Troy-Bilt 9610

SEAL-OIL .75 ID (FORMERLY #611)

$

$

Currently unavailable

15

Troy-Bilt 9416

BRG-BALL (10 BALLS)(FORMERLY #436)

$

$

Currently unavailable

16

Troy-Bilt 9509

RING-RETAINING (SNAP RING, INTERNAL) ( FORMERLY #514)

$

$

Currently unavailable

17

Troy-Bilt 1882

OBS-COVER-TRANS W/BRG CUP(INCL. #1 PART #1714)

$

$

Currently unavailable

18

Troy-Bilt 20313

GEAR-SPLINE 10 TEETH MACH

$

$

Currently unavailable

Troy-Bilt 1360A

OIL GEAR LUBE 2 QT 140WT

$

$

Currently unavailable

Troy-Bilt 1901964

OIL GEAR LUBE 1 QT 140WT

$

$

Currently unavailable
