20462 - Toro Super Recycler Walk-Behind Mower (SN: 069000001 - 069999999) (1996) ENGINE BRIGGS & STRATTON MODEL 128807-0658-01 Parts Diagram

Super Recycler Walk-Behind Mower

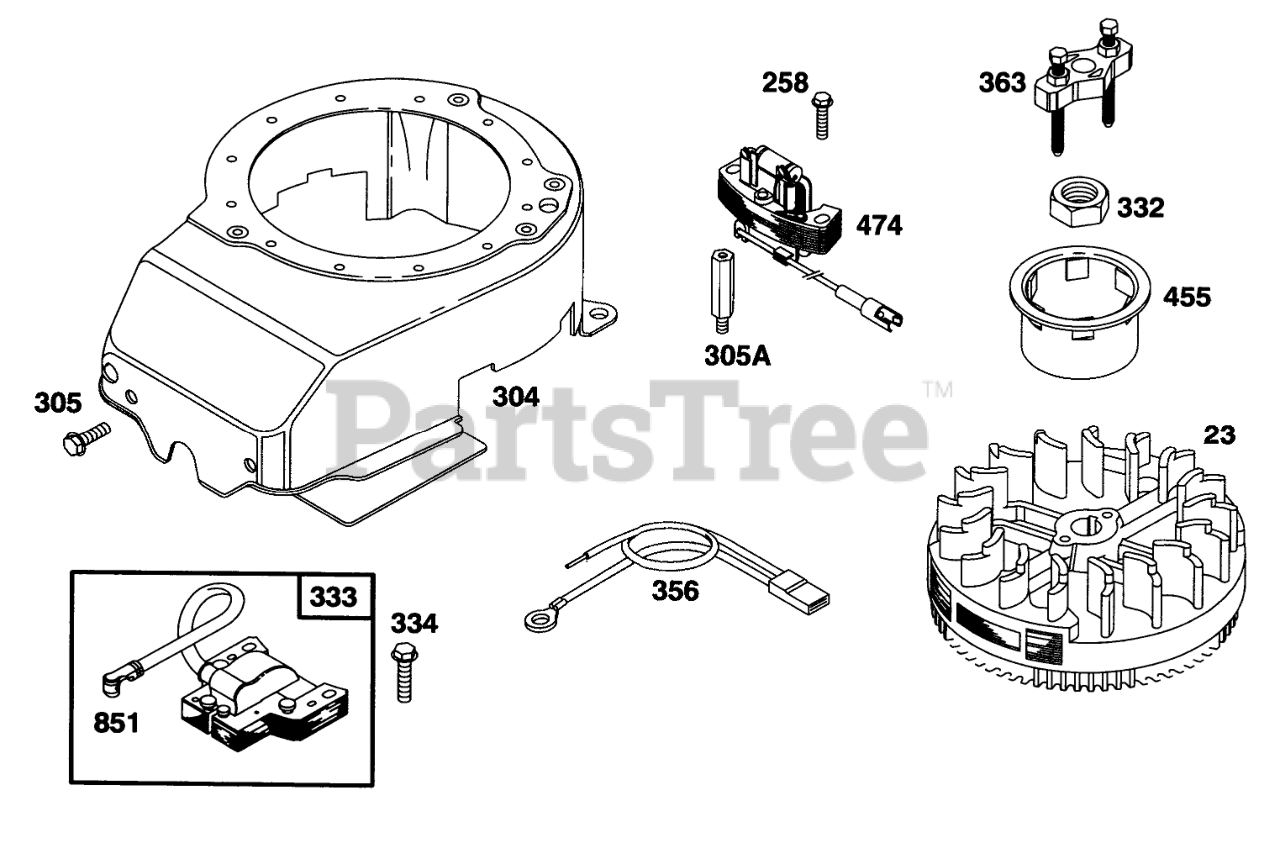

ENGINE BRIGGS & STRATTON MODEL 128807-0658-01 Parts Diagram

  • Title
23

Briggs & Stratton 492175

Flywheel
(Superseded to 691987)

$112.99

$

In Stock, only 1 left!

0

258

Briggs & Stratton 94512

Screw-Sem
(Superseded to 691648)

$4.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 493293

Housing-Blower
(Superseded to 795071)

$102.99

$

In Stock, only 2 left!

0

305

Briggs & Stratton 94513

Screw-Sem
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

305A

Briggs & Stratton 94510

Stud-Mounting
(Superseded to 691094)

$10.99

$

In Stock, only 2 left!

0

332

Briggs & Stratton 92284

Nut
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

333

Briggs & Stratton 802574

Armature-Magneto
(Superseded to 590454)

$57.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 93381

Screw
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

356

$11.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19069

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

455

$9.49

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 492841

Alternator
(Superseded to 691991)

$118.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 221798

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0
