20461 - Toro Super Recycler Walk-Behind Mower (SN: 059000001 - 059999999) (1995) HANDLE ASSEMBLY Parts Diagram

Super Recycler Walk-Behind Mower

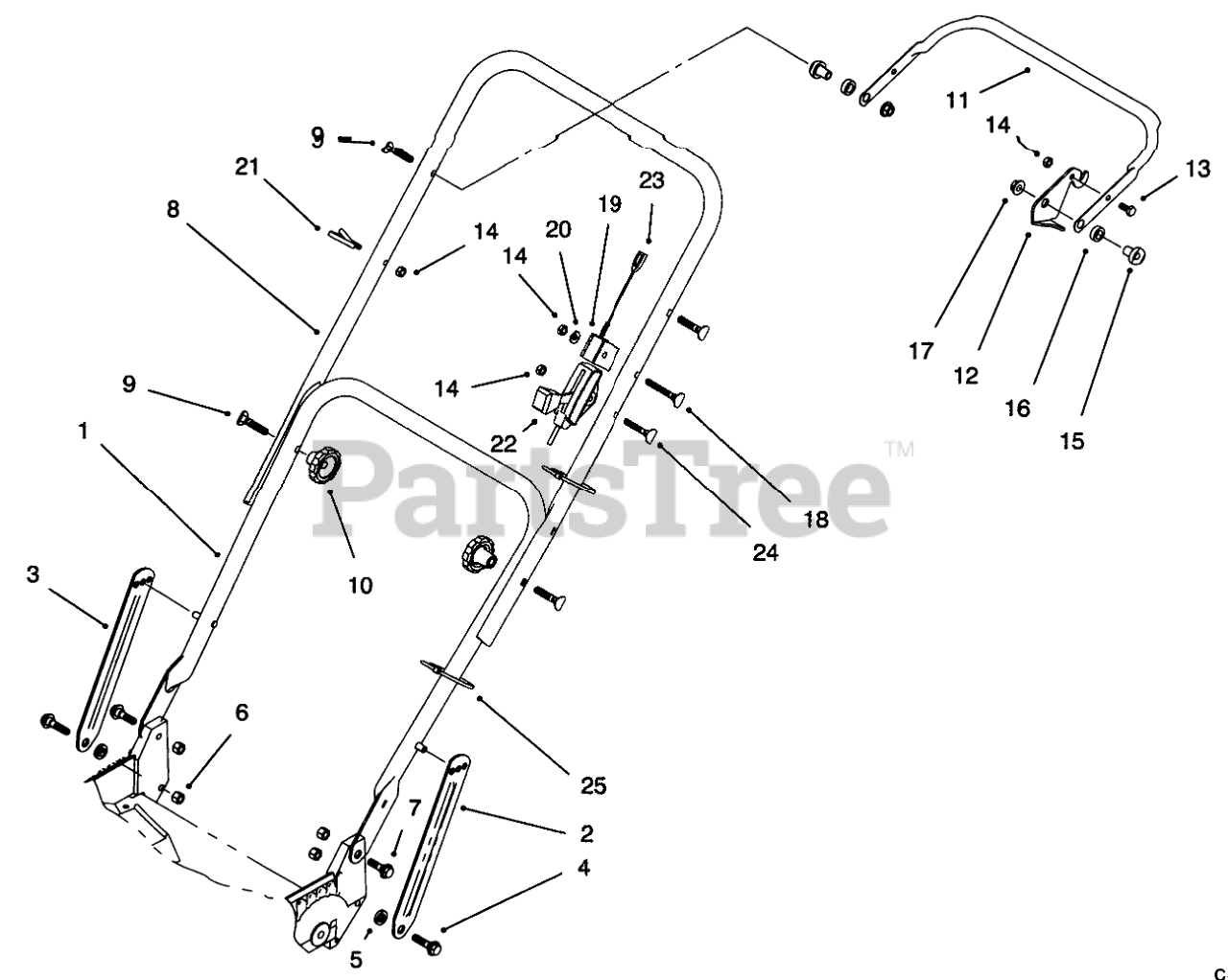

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 82-5531

ASM-Handle
(Superseded to 82-5530)

$

$

Not available

2

Toro 84-8361

Latch-Handle
(Superseded to 100-3298-03)

$19.99

$

In Stock, only 1 left!

0

3

Toro 84-8401

Latch-Handle
(Superseded to 100-3297-03)

$9.49

$

In Stock, Qty 5

0

4

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

5

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

6

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 1 left!

0

8

Toro 92-2278

Handle-Upper
(Superseded to 92-2278-05)

$

$

Not available

9

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 5

0

10

$17.99

$

In Stock, only 2 left!

0

11

Toro 71-3080

Bar-Control
(Superseded to 71-3080-05)

$

$

Not available

12

Toro 66-5351

Lever-Control
(Superseded to 66-5351-03)

$11.99

$

Usually ships in 3-6 days

0

13

Toro 321-39

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

14

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

15

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

16

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

17

Toro 3296-74

NUT-LOCK NI
(Superseded to 3296-72)

$2.99

$

In Stock, Qty 20+

0

18

Toro 92-2269

SCREW-HANDLE

$6.49

$

Usually ships in 3-6 days

0

19

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 1 left!

0

20

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 5

0

22

Toro 93-4193

CONTROL - THROTTLE

$

$

Not available

23

Toro 93-4194

CABLE - BRAKE

$

$

Not available

24

Toro 92-2266

SCREW-HANDLE

$6.49

$

Usually ships in 3-6 days

0

25

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0
