20459 - Troy-Bilt Pony I Rear-Tine Tiller (SN: P001001 - P101750) WHEEL & TILLER SHAFT ASSEMBLIES Parts Diagram

Pony I Rear-Tine Tiller

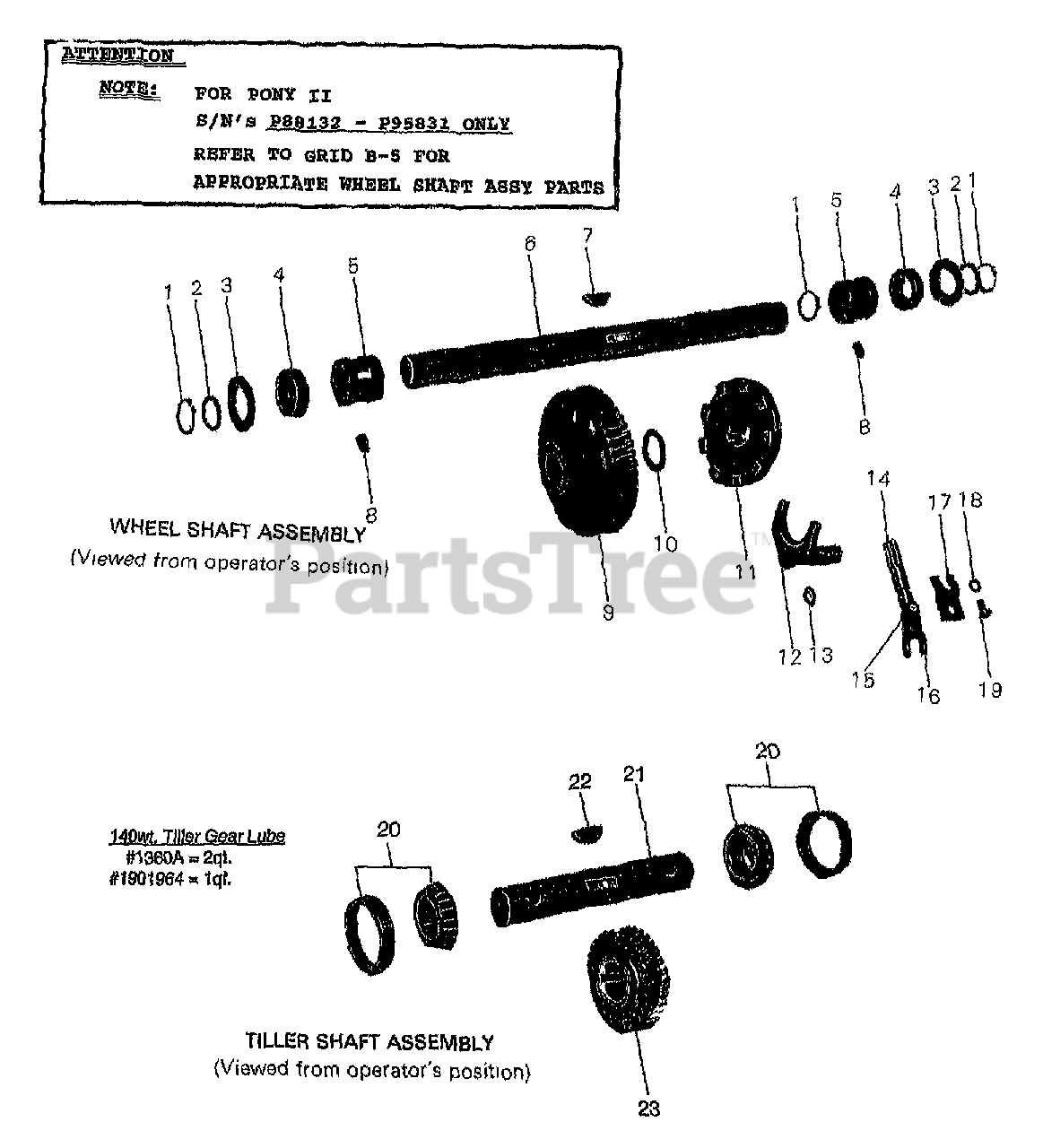

WHEEL & TILLER SHAFT ASSEMBLIES Parts Diagram

  • Title
1

Troy-Bilt 9501

RING-RETAINING 5100-100

$

$

Currently unavailable

2

Troy-Bilt 1324B

SHIM SET-WHEELSHAFT-HORSE

$

$

Currently unavailable

2

Troy-Bilt 1166-2

SHIM-1.375X1.015X.03
(Superseded to 736-04260)

$6.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 1166-3

SHIM-1.375X1.015X.015
(Superseded to 736-04259)

$6.99

$

In Stock, Qty 5

0

2

Troy-Bilt 1166-4

SHIM-1.375X1.015X.01
(Superseded to 736-04258)

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 20326

SHIM-1.75X1.013X.09

$

$

Currently unavailable

4

Troy-Bilt 9609

SEAL-OIL WHEELSHAFT

$

$

Currently unavailable

5

Troy-Bilt 20311

BUSHING-1.503X1.005X1.187

$

$

Currently unavailable

6

Troy-Bilt 20436

ASSM-WHEELSHAFT W/KEY (REPLACES # 20322)

$

$

Currently unavailable

7

Troy-Bilt 9305

KEY-HI PRO .25X1.062
(Superseded to 714-04059)

$6.99

$

In Stock, Qty 8

0

8

Troy-Bilt 9755

SCR-SS 3/8-16 X .5 (CP)

$

$

Currently unavailable

9

Troy-Bilt 20308

GEAR-WORM

$

$

Currently unavailable

10

Troy-Bilt 1166-1

SHIM-1.375X1.015X.062
(Superseded to 736-04309)

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 20304

CLUTCH-MACH

$

$

Currently unavailable

12

Troy-Bilt 20318

YOKE-RIVETED HT

$

$

Currently unavailable

13

Troy-Bilt 9603

RING-O .625 X .438

$

$

Currently unavailable

14

Troy-Bilt 20321

SPLINE/YOKE-HT

$

$

Currently unavailable

15

Troy-Bilt 9339

PIN-SPIROL .188 X .875

$

$

Currently unavailable

16

Troy-Bilt 20350

UNIVERSAL (U-JOINT)

$

$

Currently unavailable

17

Troy-Bilt 20325

PLATE-FRICTION

$

$

Currently unavailable

18

Troy-Bilt 9910

WASHER-LK .25 ZP

$

$

Currently unavailable

19

Troy-Bilt 9743

SCR-HH 1/4-20X.5 GR5 YEL

$

$

Currently unavailable

20

Troy-Bilt 1715

BRG & RACE

$

$

Currently unavailable

Troy-Bilt 11514

KIT-TILLER GEAR PONY 1-4

$

$

Currently unavailable

21

Troy-Bilt 20437

ASSM-TILLERSHAFT W/KEY (REPLACES #20335)

$

$

Currently unavailable

22

Troy-Bilt 1104

KEY-WOODRUFF .25X1.12
(Superseded to GW-1104)

$9.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 20306

KIT-TILLER GEAR PONY 1-4

$

$

Currently unavailable

Troy-Bilt 1360A

OIL (1901964)

$

$

Currently unavailable

Troy-Bilt 1901964

OIL-GEAR 1 QT 140WT

$

$

Currently unavailable
